- Page 1 CABINET PARTS REFRIGERATOR For Model: KSRS25QFBL00 (Black) Part No. 4394691 5−97 Printed In U.S.A. (mdg)
-

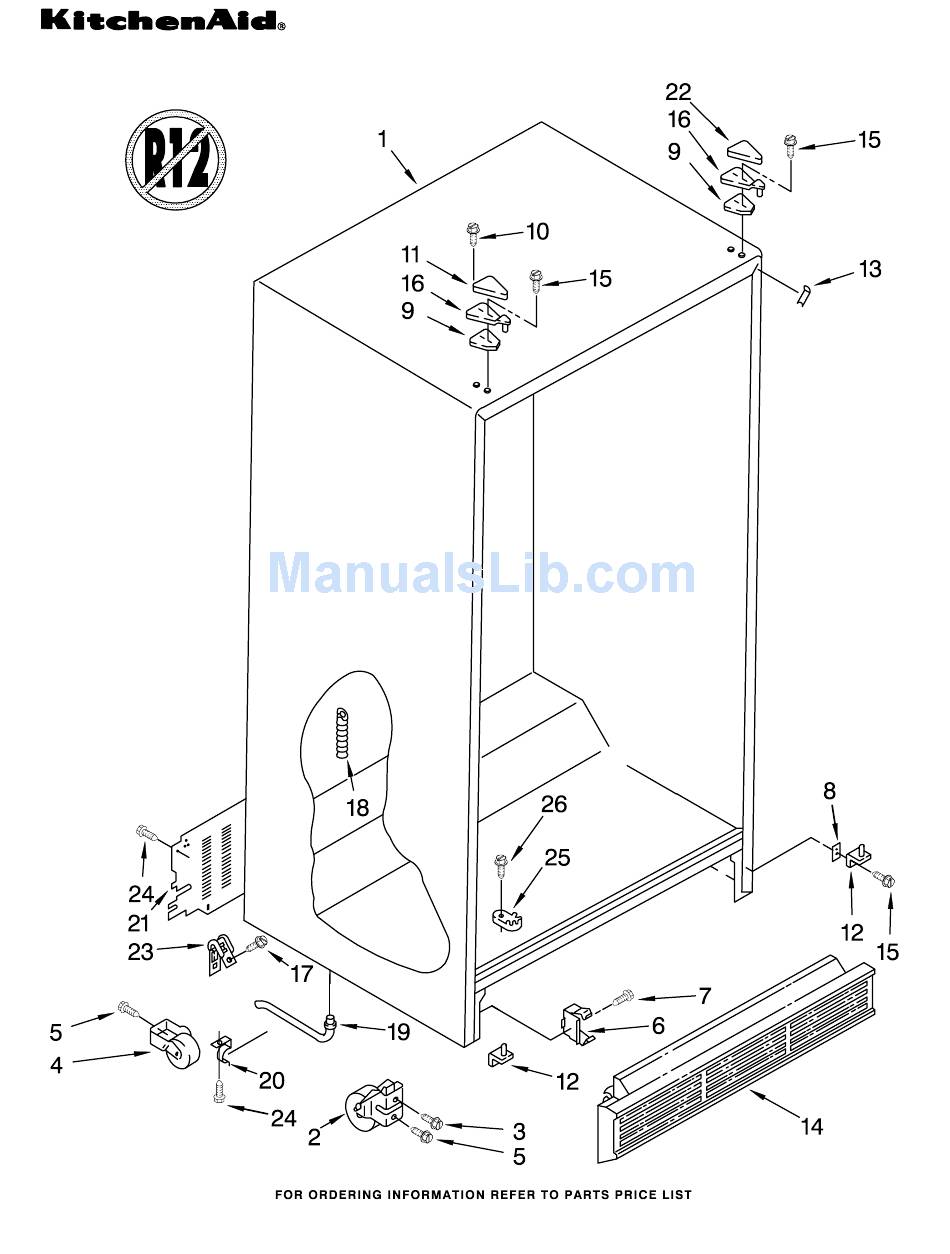

Page 2: Cabinet Parts
CABINET PARTS For Model: KSRS25QFBL00 (Black) Illus. Part DESCRIPTION Cabinet (Not A Serviceable Part) 2174748 Front Roller (2) 489456 Screw 981122 Roller (Rear) (2) 489427 Screw 2155013 Clip, Grille 489478 Screw 2156056 Shim 2196048 Shim, Hinge Top 489284 Screw 2151694 Hinge Cover 2171851 Hinge Bottom (2) 1127272 Filler, Wrapper 2155485 Grille... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSRS25QFBL00 (Black) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2194744 Escutcheon, Meat Pan Control 2182757 Slide Meat Pan Control 2182147 Louver 2171846 Release Valve 2172943 Stud (2) 1110718 Stud (10) 2181796 Ladder, Shelf (2) 486298 Screw (2) 487539 Screw 2179375 Rack, Wine &... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSRS25QFBL00 (Black) Illus. Part DESCRIPTION 2174023 Shelf Assembly, Cantilever (3) 2174253 Button, Humidity 2174252 Slide, Humidity 2174273 Gasket, Side (2) 2161491 Cover, Meat Pan (Includes Items 13, 14 & 15) 2174148 Glass, Cover 2189526 Glass, Cover 2174250 Cover, Crisper (Includes 2, 3, 4, 11, 12,... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Model: KSRS25QFBL00 (Black) 4394691... - Page 6 FREEZER LINER PARTS For Model: KSRS25QFBL00 (Black) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2174493 Shelf, Top Compartment 2171713 Door, Ice Compartment 940014 Hole Plug 946356 Stud, R.S. Front 842534 Clip, Air Duct (2) 1115317 Support, Stud (4) 946355 Support, Stud (2) 2176134 Grommet (2) Slide, Container 1119237 Left Side...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: KSRS25QFBL00 (Black) 4394691... - Page 8 MOTOR AND ICE CONTAINER PARTS For Model: KSRS25QFBL00 (Black) Illus. Part DESCRIPTION 2183726 Bracket, Motor 2155263 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 2169490 Wiring Assembly, Ice Dispenser 489399 Screw 983663 Coupling, Motor 489478 Screw 2162085 Socket, Light 2182100 Ice Container 983668 Coupling, Conveyor 1118480 Stop, Cone 1119074 Feeder Cone...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSRS25QFBL00 (Black) 4394691... - Page 10 REFRIGERATOR DOOR PARTS For Model: KSRS25QFBL00 (Black) Illus. Part DESCRIPTION 2194233B Refrigerator Door (Includes #7) 2195497 Load, Lock 2182399 Door, Compartment 2193409 Holder, Beverage 2165792 Butter Dish 2173829 Insert, Handle 2159083 Door Gasket, Magnetic (Service) 2194778B End Cap, Handle 489075 Screw 2194777B Retainer, Insert 489463 Screw 2182132 Door Closer,...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSRS25QFBL00 (Black) 4394691... - Page 12 FREEZER DOOR PARTS For Model: KSRS25QFBL00 (Black) Illus. Part DESCRIPTION 2198265 Freezer Door (Includes #8 And Dispenser Front Parts) 2194777B Retainer, Insert 2194778B End Cap (2) 489463 Screw 3400012 Screw 489075 Screw 2171070 Shelf Bin (4) 2159082 Door Gasket, Magnetic (Service) 2173829 Insert, Handle 2195931 Trim, Door Shelf 2156006 End Cap...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: KSRS25QFBL00 (Black) 4394691... - Page 14 DISPENSER FRONT PARTS For Model: KSRS25QFBL00 (Black) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 489101 Screw 2194719 Retainer, Levers 2180209 Spring, Torsion 2180210 Pin 2180205 Door, Ice 2180208 Door Mechanism Assembly 2180223 Mechanism Delay 2180325 Grille, Overflow 2180225 Water Fitting Assembly (Includes Water Tube) 2180261 Lever, Ice...
-
Page 15: Air Flow Parts
AIR FLOW PARTS For Model: KSRS25QFBL00 (Black) Illus. Part DESCRIPTION 2182120 Fan Scroll 2155590 Retainer, Fan Motor 2161231 Air Scoop 2182063 Air Duct Freezer 2162404 Fan Motor 2169142 Fan Blade 2176759 Fan Grommet (2) 2182146 Duct, Icemaker 2161478 Harness, Fan Evaporator, And Heater, Bi−Metal 2155789 Gasket Cover... -
Page 16: Control Parts
CONTROL PARTS For Model: KSRS25QFBL00 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2172930 Control Box 2172931 Heat Shield 2196003 Tube Barrier, 2182150 Tube Barrier, 527949 Light Bulb Thermostat (FC) Thermostat (RC) 2172953 Control Box 2161460 Thermostat (R.C.) 489214 Screw (3) Harness 2172940 Window... -
Page 17: Unit Parts
UNIT PARTS For Model: KSRS25QFBL00 (Black) 4394691... - Page 18 UNIT PARTS For Model: KSRS25QFBL00 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 486692 Speed Nut 488687 Screw Following Parts Not Illustrated 1108179 Fan, Blade 2157396 Unit Mounting 2198177 Condenser Frame and Optional Parts Not Included Assembly 2194749 Unit, Harness 489464 Screw 2181929 Fan, Motor Bracket 978025 Valve, Access...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Model: KSRS25QFBL00 (Black) 4394691... - Page 20 ICEMAKER PARTS For Model: KSRS25QFBL00 (Black) Illus. Part DESCRIPTION 489084 Screw 2182015 Fitting, Water Tube 488878 Clamp, Tube 2181939 Insert, Tube 628379 Clip, Fuse 2181940 Tube, Water 1106508 Seal, Gasket 489478 Screw 2182106 Valve, Solenoid 627018 Nut, Compression 489385 Tube Clamp 2174155 Cover 488649 Screw 628228 Mold &...
- Page 21 PARTS NOT ILLUSTRATED For Model: KSRS25QFBL00 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous LITERATURE PARTS Parts Not Illustrated and Optional Parts (Not Included) LIT2194922 Use & Care Guide 212643 Sealer, Gum LIT2182866 Service & Wiring (4 Feet) Customer Touch−Up Material Sheet 479502 Tape, Vinyl...
