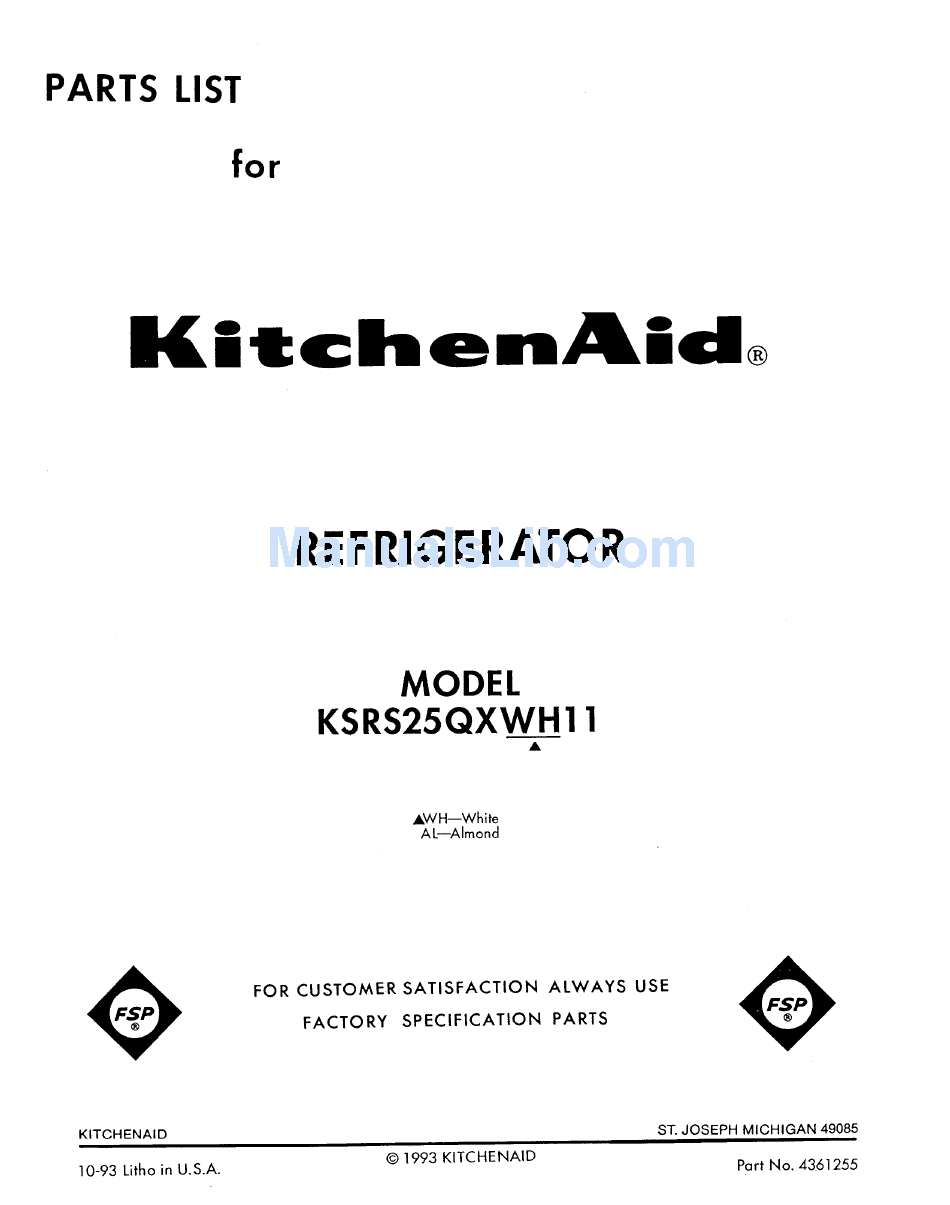

Summary of Contents for KitchenAid KSRS25QXAL11
- Page 3 Cabinet (Not A Serviceable Part 2152011 Front Roller (2) 489333 Screw, 5/16-24 x 1-1/4 981122 Roller (Rear) (2) 488454 Screw, (4) 1/4-28 x 1/2 2155016 Mullion Rail 1110606 Heater Mullion Front Mullion Rail 1123972 White 1123975 Almond 489366 Washer Filler Bottom Mullion 1118361 White 1118362...
- Page 4 549193 Clamp, Service Cord 548745 Clip, Wire 1129188 Wiring Assembly (Icemaker) 836472 Clamp, Water Line (2)
- Page 6 Liner (Not A Serviceable Part) 985468 Escutcheon, Meat Pan Control 984102 Slide Meat Pan Control 992358 Foam Pad 486214 Screw, 8-15 x 1/2 1125675 Stud, Pan Cover 1110718 Stud (9) 1116794 Ladder, Shelf (2) 658944 Stud, Shelf (2) 486298 Screw (2) 487539 Screw, 8 x 1/2 (4) 487559...
- Page 8 1125597 Shelf Assembly, Cantilever (3) 1125593 Glass, Shelf 1125594 Retainer, Glass 1125786 Gasket, Front 1126153 Pan Cover Assembly (2) 1125705 Gasket, Cover (Front) 1125706 Gasket, Cover (Rear) 1125822 Glass, Cover (2) 1125599 Pan Shelf & Slide Assembly 1125595 Glass, Shelf 1125814 Gasket (Front) 1125817...
- Page 10 Liner (Not A Seviceable Part) 1125824 Shelf, Top Compartment 1125657 Door, Ice Compartment 1108436 Evaporator, Support 946356 Stud, R.S. Front 842534 Clip, Air Duct (2) 1115317 Support, Stud (4) 946355 Support, Stud (2) 1110779 Grommet (2) Slide, Container 1119237 Left Side 1119293 Right Side 1125609...
- Page 12 1127163 Fan Scroll 1110798 Air Scoop 489176 Screw 2157544 Air Duct Freezer 1110666 Diffuser Air Duct 2149964 Fan Motor 992920 Fan Blade 992953 Compression Ring 1114354 Fan Grommet (2) 489168 Screw, (2) 1115381 Duct, Icemaker 1127167 Cover, Evaporator 489355 Screw (6) 2157554 Gasket, Evaporator Cover (2) 1110676...
- Page 14 1118386 Bracket, Motor 2152118 Motor, Dispenser 2152713 Soleniod Assembly 2149100 Guide, Solenoid 487523 Screw (2) 1115374 Clip, Wiring 2155171 Wiring Assembly, Ice Dispenser 488906 Screw, 8-32 x 5/16 (4) 983663 Coupling, Motor 489242 Screw 851067 Socket, Light 1115339 Cover, Motor 487294 Screw, 8-32 x 3/8 2152702...
- Page 15 72107 Brush Touch-Up Kit (Almond) 72032 Brush Touch-up kit (Black) Refinishing Material 799340 Enamel, Black (1 Qt. Uncut) 799344 Enamel, White (1 Qt. Uncut) 978883 Enamel, Almond (1 Qt. Uncut) Miscellaneous 212643 Sealer, Gum (4 Feet) 479502 Tape, Vinyl (3/4 x 108") 876370 Kit, Insulation (2 Pcs.
- Page 17 Refrigerator Door 1117863 White 1117867 Almond (Also Order Item 18) 1125733 Door, Compartment 1125695 Gasket, Door 1125981 Holder, Beverage 1125936 Butter Dish Insert, Handle 1117948 White 1117949 Almond 1125929 Door Gasket, Magnetic 509929 Cap, Hinge Sleeve 1107341 End Cap, Handle 941242 Screw Anchor (2) 489075...
- Page 19 Freezer, Door Panel (Also Order Item 11) 1125957 White 1125963 Almond 988402 Tap Plate 1107215 Handle Assembly 939886 Seal, Hinge Pin 1107341 End Cap (2) 487909 Screw, 8 x 1/2 (4) 1107651 Spacer, Handle 489075 Screw (2) 1125676 Shelf Bin (4) 1125928 Door Gasket, Magnetic 876029...
- Page 21 2154789 Heater, Dispenser 987048 Grommet 841707 Insert, Tube Housing, Dispenser 1124715 White 1125969 Almond 488687 Screw, 8 x 5/8 (10) 987053 Tube, Water Frame, Slides 2152717 White 2152718 Almond Slide, Cube/Crush Switch 2152720 White 2152721 Almond 2147168 Door, Ice 2147167 Door Mechanism Assembly (Includes Item 9) 850145 Wire Connector...
- Page 22 Cover, Housing (Includes Item 39) 1125673 White 1125805 Almond 2147172 Heat Shield, Frame 987049 Bracket, Water 488316 Screw, 8-18 x 3/4 2147166 Wiring Assembly, Door 489000 Screw, 9-12 x 1/2 489336 Washer (Repair)
- Page 24 486692 Speed Nut 1108179 Fan, Blade 1105640 Condenser Assembly 488624 Screw 548745 Clip, Wire (2) 489019 Screw, 8-32 x 3/8 934011 Clip (3) 510716 Tube Clamp 510769 Dampener 943322 Spring, Relay Case 1105055 Case, Relay 2154794 Overload 2154654 Relay 1114291 Running Capacitor 509812 Screw Grommet...
- Page 25 978026 Valve, Access (5/16") 978027 Valve, Access (3/8") 978028 Valve, Access (1/2") 978029 Valve, Access (5/8") 978030 Valve, Access (3/4") 876764 Valve, Access (3/16")
- Page 27 489084 Screw, 8 x 1/2 836489 Fitting, Water Tube 488878 Clamp, Tube 841707 Insert, 628379 Clip, Fuse 836074 Dampener 653415 Tube, Water 1106508 Seal, Gasket 486214 Screw, 8 x 1/2 628295 Valve, Solenoid 627018 Nut, Comp. (1/4") 850145 Connector, Wire 1114644 Tube, Water Inlet 628337...
- Page 29 1126344 Control Box 1115241 Tube Barrier, Thermostat 489214 Screw 1123923 Light Switch 1125964 Switch, Lighted 2154985 Adaptive Defrost Control-P.C. Board 489192 Screw (2) 940014 Hole Plug 1125769 Thermostat Assembly 1126028 Window 1125592 Slide, Air Control 1125591 Slide, Thermostat 489242 Screw 1118072 Light Bar 1125589...
