CABINET PARTS
36" BUILT IN
For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00
REFRIGERATOR
(Black)
(Biscuit)
(White) (Etched Aluminum)
1
Part No. 8197675
5−03 Litho In U.S.A. (rcg)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS36QKB00 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSS36QKB00

Summary of Contents for KitchenAid KSSS36QKB00

  • Page 1 CABINET PARTS 36" BUILT IN For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 REFRIGERATOR (Black) (Biscuit) (White) (Etched Aluminum) Part No. 8197675 5−03 Litho In U.S.A. (rcg)

  • Page 2: Cabinet Parts

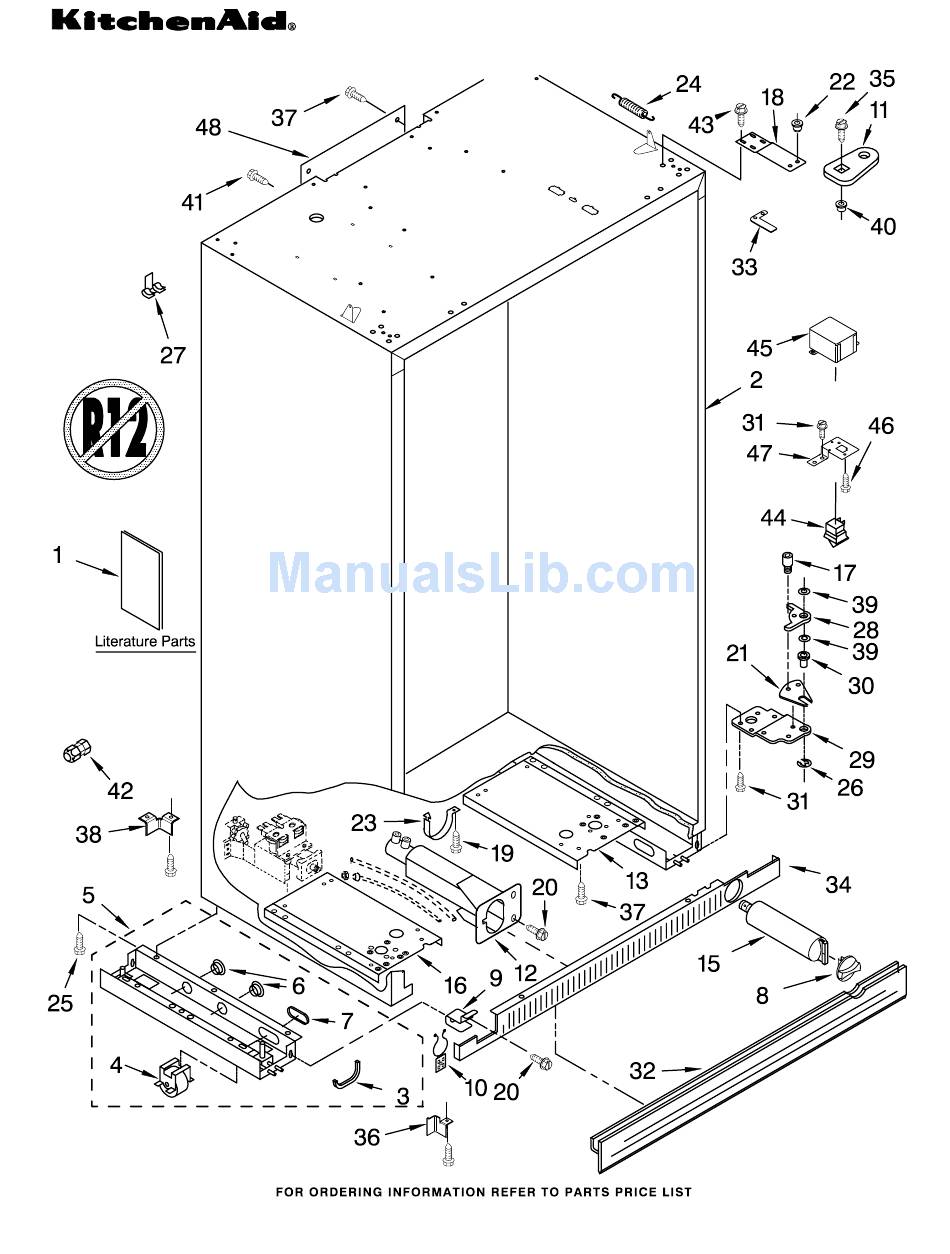

    CABINET PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2209022 Housing, Water 8201584 Extension Arm, Literature Parts Filter Door Closer LIT2215850 Use & Care Guide 2006806 Support, Bottom Grille Bottom, LIT2221082 Energy Label (Right Side)
  • Page 3 CABINET TRIM PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2215919W White 2215919B Black 2215919T Biscuit 8201535 Etched Aluminum 2003857 Screw Screw 8281251 White 8281252 Black 8281253 Biscuit 8281250 Stainless Steel 2209073 Cabinet, Trim (Bottom) 486194 Screw...

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2220889 Solid Shelf 2220846 Front, Ice Compartment 1113636 Shelf, Fixed (2) 1113564 Shelf, Deep 2208192 Basket 2220843 Trim, Basket Slide, Basket 2208198 Right Side 2208197 Left Side 486194 Screw 8197675...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197675...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2208975 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2220888 Meat Pan, Air Duct Cover...

  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2215715 Control Box 2215670 Insert, Control 2209159 Circuit Board, Housing Control 2215941 Control Box Wire Harness 2003841 Retainer, Knob 2162085 Socket, Light 2160708 Light Bulb (2) 486194 Screw 2221067 Overlay 1115375 Clip, Wiring (3)
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION Top Grille Assembly 2215924W White 2215924B Black 2215924T Biscuit 8201576 Etched Aluminum 2209490 Cover, Unit 486194 Screw 2215830 Back Panel 2209492 Guard, Wiring 487415 Screw 2220808 Wire Assembly...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197675...
  • Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2174402 Frame, Shelf 2003375 Glass, Shelf 1113546 Reflector, Shelf 1113790 Gasket, Glass (2) 2179404 Rack, Wine 2216625 Egg Bin 2006523 Frame, Assembly Meat Pan 1113893 Cover, Crisper 2003378 Glass, Crisper (Includes #9)
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197675...
  • Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2208939 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 2155590 Retainer, Fan Motor 2155788 Gasket, Cover 2208968 Grommet 486194 Screw 2003924 Deflector, Air Duct 488500 Screw, Ground...

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197675...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2003939 Bracket, Motor 2155263 Motor, Dispenser 2003979 Soleniod Assembly 2149100 Guide, Solenoid Slide, Container 2002720 Right Side 2002721 Left Side 1113169 Stop, Roller 2209120 Wiring Assembly, Ice Dispenser 489399 Screw...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197675...
  • Page 16 REFRIGERATOR DOOR PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Handle, Door Trim (Bottom) 8201580 Refrigerator 2005953 White 2209417W White Door Panel 2005956 Black 2209417B Black (Includes 2005955 Biscuit 2209417T Biscuit Insulation)

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197675...
  • Page 18 FREEZER DOOR PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION Freezer Door Panel (Includes Insulation) 2215657W White 2215657B Black 2215657T Biscuit 2220810 Hinge, Bottom 489282 Screw 2220922 Hinge, Top 2004520 Spacer−Door, 1112533 Gasket Retainer, Side (2) 1112538 Gasket Retainer, Top &...

  • Page 19: Dispenser Front Parts

    DISPENSER FRONT PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197675...
  • Page 20 DISPENSER AND FRONT PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Overlay, Cover Lever, Water Housing, Dispenser (Not Serviced) Dispenser (Not Serviced) Front Cover 2180268 White 2195051 Strain Relief Assembly 2180270 Black 2202585 Wire Assembly...
  • Page 21 UPPER UNIT PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197675...
  • Page 22 UPPER UNIT PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2209324 Inverter Box 487869 Screw 489373 Screw, Compressor 2209062 Condenser Following Parts Not Illustrated Mounting (4) 943447 Grommet (4) and Optional Parts Not Included 2208937 Compressor 2221009 Wire, Jumper...
  • Page 23 LOWER UNIT AND TUBE PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197675...
  • Page 24 LOWER UNIT AND TUBE PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part DESCRIPTION 2196155 Defrost Bi−Metal 2209119 Wire Harness 486194 Screw 2215508 Bracket 2209067 Side Support 2209035 Suction Tube 2209454 Tube, Connect (Drier) 2209451 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2002448 Sleeve...

  • Page 25: Icemaker Parts

    ICEMAKER PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) 8197675...
  • Page 26 ICEMAKER PARTS For Models: KSSS36QKB00, KSSS36QKT00, KSSS36QKW00, KSSS36QKX00 (Black) (Biscuit) (White) (Etched Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 489322 Screw 841707 Insert, Tube 488937 Clamp Tube 628379 Clip, Fuse 2174155 Cover 489276 Screw 2214613 Tube, Filter Inlet 628228 Mold &...
