KitchenAid KSSS48QHX00 Parts List

KitchenAid KSSS48QHX00 Parts List

48" built in refrigerator
Hide thumbs
Table of Contents

Advertisement

Quick Links

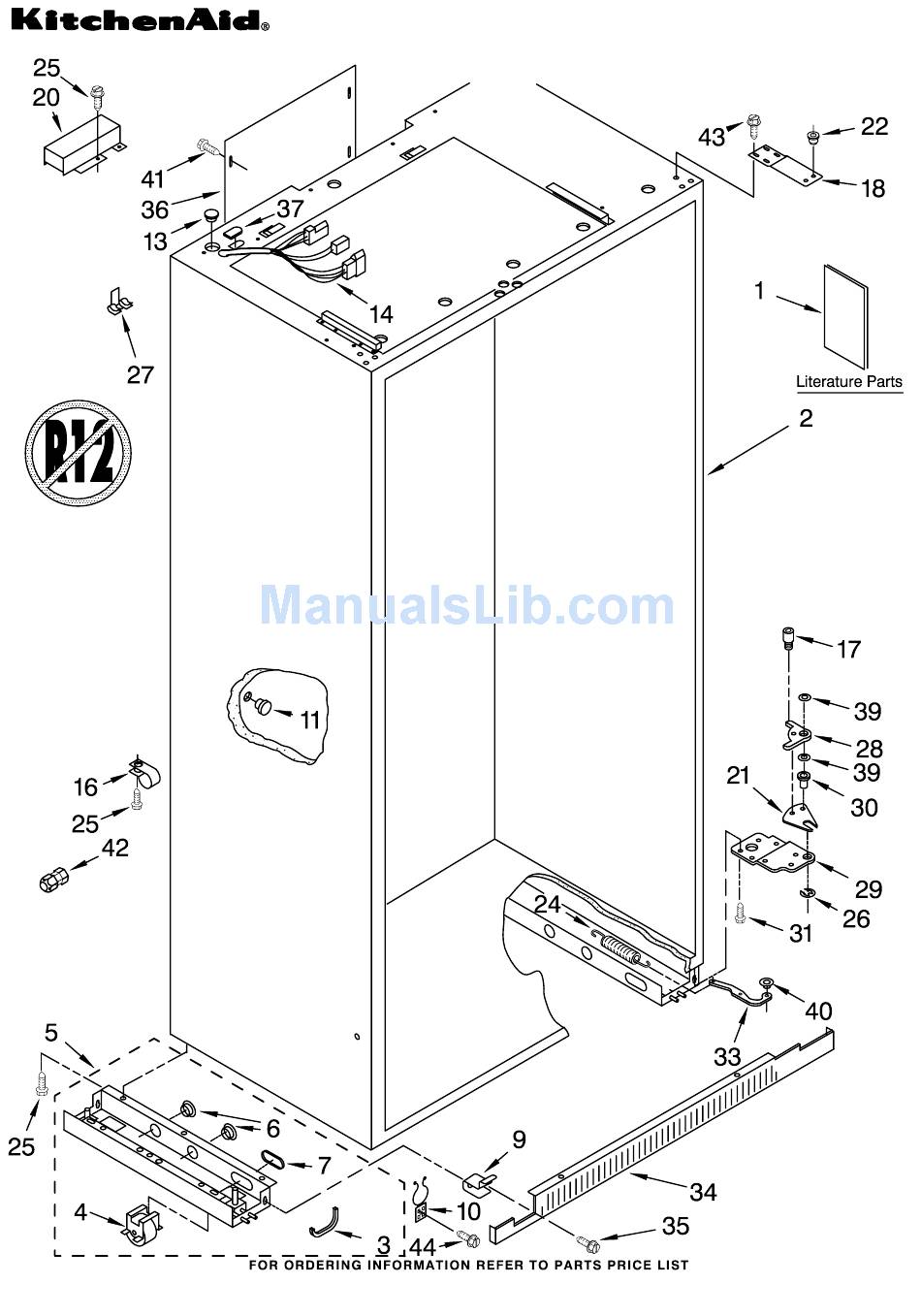

48" BUILT IN
CABINET PARTS
REFRIGERATOR
For Model: KSSS48QHX00
(Stainless Steel)
Part No. 4398497
1
11−99 Litho In U.S.A. (mek)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS48QHX00 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSS48QHX00

Summary of Contents for KitchenAid KSSS48QHX00

  • Page 1 48" BUILT IN CABINET PARTS REFRIGERATOR For Model: KSSS48QHX00 (Stainless Steel) Part No. 4398497 11−99 Litho In U.S.A. (mek)

  • Page 2: Cabinet Parts

    CABINET PARTS For Model: KSSS48QHX00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2006342 Gap, Cover LITERATURE PARTS 2006442 Mounting Stud, Assembly (Bottom) LIT2006136 Use & Care Guide Grill Hinge (Bottom) LIT2006653 Energy Label 2005237 Clip, Wire 2006732 Freezer Side LIT2005930 Service &...
  • Page 3 CABINET TRIM PARTS For Model: KSSS48QHX00 (Stainless Steel) Illus. Part DESCRIPTION 2004553 Cabinet, Trim (2) 2003857 Screw 1163283 Screw 2004538 Cabinet, Trim (Bottom) 486194 Screw 2003647 Cabinet, Trim Top 487944 Washer (2) 2005925 Seal−Trim, Side 4398497...

  • Page 4: Freezer Liner Parts

    FREEZER LINER PARTS For Model: KSSS48QHX00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2005567 Bracket, Light 1113650 Lens 2005042 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control Panel (3) 842534 Clip, Air Duct (4)

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSS48QHX00 (Stainless Steel) 4398497...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KSSS48QHX00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct 2003299 Inlay, Control...
  • Page 7 REFRIGERATOR CONTROL PANEL PARTS For Model: KSSS48QHX00 (Stainless Steel) Illus. Part DESCRIPTION 1112642 Control Panel 2003303 Inlay, Control Panel 2004005 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113137 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 2005566 Shield, Control Panel 2005043 Socket, Light...
  • Page 8 FREEZER CONTROL PANEL PARTS For Model: KSSS48QHX00 (Stainless Steel) Illus. Part DESCRIPTION 1113627 Control Panel 2003309 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113136 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 2005563 Shield, Control Panel 2005042 Socket, Light...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSS48QHX00 (Stainless Steel) 4398497...
  • Page 10 REFRIGERATOR SHELF PARTS For Model: KSSS48QHX00 (Stainless Steel) Illus. Part DESCRIPTION 2174404 Frame, Shelf 2003377 Glass, Shelf 1112006 Reflector, Shelf 1113792 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2006525 Frame, Assembly Meat Pan 2164373 Egg Carrier 1112247 Cover, Crisper 2003380 Glass, Crisper (Includes #9) 2000742 Meat Pan,...

  • Page 11: Freezer Shelf Parts

    FREEZER SHELF PARTS For Model: KSSS48QHX00 (Stainless Steel) Illus. Part DESCRIPTION 2003144 Solid Shelf 2003135 Front, Ice Compartment 1113638 Shelf, Fixed (2) 1112052 Shelf, Deep 2208196 Basket 2003114 Trim, Basket Slide, Basket 2208198 Right Side 2208197 Left Side 486194 Screw 4398497...
  • Page 12 TOP GRILLE AND UNIT COVER PARTS For Model: KSSS48QHX00 (Stainless Steel) Illus. Part DESCRIPTION 2003715 Top Grille Assembly 2005549 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw 2003724 Decortive Panel Assembly 2005534 Guard, Compressor Wiring 2003613 Trim, Grille Bottom 2003619 Trim, Grille 2003599 Trim, Grille Right Side...

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Model: KSSS48QHX00 (Stainless Steel) 4398497...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Model: KSSS48QHX00 (Stainless Steel) Illus. Part DESCRIPTION 2003941 Bracket, Motor 2155263 Motor, Dispenser 2003979 Soleniod Assembly 2149100 Guide, Solenoid Slide, Container 2002720 Right Side 2002721 Left Side 1113169 Stop, Roller 2004006 Wiring Assembly, Ice Dispenser 489399 Screw 983663 Coupling, Motor 489478 Screw...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSS48QHX00 (Stainless Steel) 4398497...
  • Page 16 REFRIGERATOR DOOR PARTS For Model: KSSS48QHX00 (Stainless Steel) Illus. Part DESCRIPTION 2003872 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2005329 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2004523 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112542 Gasket Retainer, Top &...

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSS48QHX00 (Stainless Steel) 4398497...
  • Page 18 FREEZER DOOR PARTS For Model: KSSS48QHX00 (Stainless Steel) Illus. Part DESCRIPTION 2202548B Freezer Door Panel (Includes Insulation) 2004881 Retaining Ring, Door−Closure 2004524 Hinge, Bottom 489282 Screw 2005329 Hinge, Top 2004520 Spacer−Door, 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top & Bottom 2005531 Door Gasket, Magnetic 486194 Screw (34)

  • Page 19: Dispenser Front Parts

    DISPENSER FRONT PARTS For Model: KSSS48QHX00 (Stainless Steel) 4398497...
  • Page 20 DISPENSER AND FRONT PARTS For Model: KSSS48QHX00 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviceable) 2195051 Strain Relief 2150347 Union 2180209 Spring, Torsion 2196195 Pin 2180208 Ice Door Mechanism 2180205 Door, Ice 489000 Screw 2180261 Lever, Ice Dispenser 2202551 Switch Assembly (Also order Item #49) 489000 Screw...
  • Page 21 UPPER UNIT PARTS For Model: KSSS48QHX00 (Stainless Steel) 4398497...
  • Page 22 UPPER UNIT PARTS For Model: KSSS48QHX00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2003398 Assembly, Unit 851095 Wire Tie (2) Following Parts Not Illustrated Base 2202581 Drier 2163787 Clip, Compressor and Optional Parts Not Included 2208903 Motor, Fan Mounting (4) 2190685 Blade, Fan 2183420 Compressor...
  • Page 23 LOWER UNIT AND TUBE PARTS For Model: KSSS48QHX00 (Stainless Steel) 4398497...
  • Page 24 LOWER UNIT AND TUBE PARTS For Model: KSSS48QHX00 (Stainless Steel) Illus. Part DESCRIPTION 2000528 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan 1113062 Hanger, Heater 2005908 Shield, Drain Pan 2002448 Sleeve 2002995 Tube, Discharge...
  • Page 25 AIR FLOW AND RESERVOIR PARTS For Model: KSSS48QHX00 (Stainless Steel) 4398497...
  • Page 26 AIR FLOW AND RESERVOIR PARTS For Model: KSSS48QHX00 (Stainless Steel) Illus. Part DESCRIPTION 2188322 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2003926 Deflector, Air Duct 488500 Screw, Ground 488366 Clamp, Tube 489348 Clamp, Nylon 2001145 Channel, Wiring 1112871 Fastner...

  • Page 27: Icemaker Parts

    ICEMAKER PARTS For Model: KSSS48QHX00 (Stainless Steel) 4398497...
  • Page 28 ICEMAKER PARTS For Model: KSSS48QHX00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 841707 Insert, Tube 628228 Mold & Heater 2171593 Shut Off Arm 628379 Clip, Fuse (Also Order 2171952 Bracket 2208933 Water Inlet 542638 Silicone 489478 Screw Tube Assembly Grease) 628399 Module Assembly...
