CABINET PARTS
48" BUILT IN
REFRIGERATOR
For Model: KSSO48QMB03
(Black)
09−06 Litho In U.S.A. (dmm)
Part No. W10115176
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSO48QMB03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KSSO48QMB03

Summary of Contents for KitchenAid KSSO48QMB03

  • Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Model: KSSO48QMB03 (Black) 09−06 Litho In U.S.A. (dmm) Part No. W10115176...

  • Page 2: Cabinet Parts

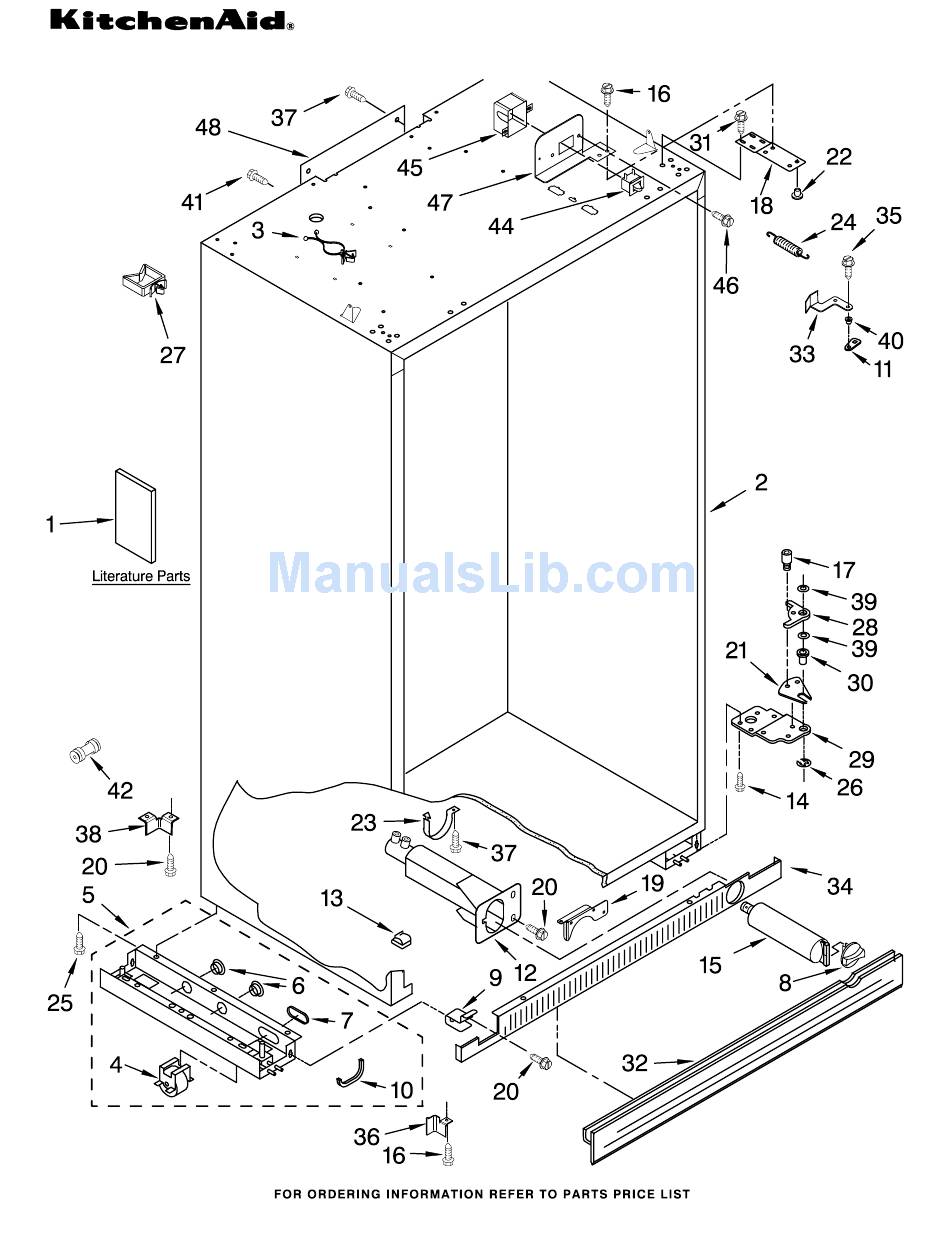

    CABINET PARTS For Model: KSSO48QMB03 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 2209022 Housing, Water Skirt−Grille, 2320531 Use & Care Guide Filter Bottom 2307359 Energy Label 488946 Clip, Water Tube 2209026B Black 2320627 Service & Wiring 3400525 Screw Extension Arm, 2255709 Filter, Water...
  • Page 3 CABINET TRIM PARTS For Model: KSSO48QMB03 (Black) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2257688B Black Screw 8281252 Black 2316688 Cabinet, Trim (Bottom) 486194 Screw 2313993 Cabinet, Trim Top Cabinet Trim (Left Side) 2257689B Black 2005925 Seal−Trim, Side 489464 Screw W10115176...

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Model: KSSO48QMB03 (Black) Illus. Part DESCRIPTION 2302869 Wire, Shelf 2302884 Shelf, Fixed (2) 2259086 Basket 2256271 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10115176...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSO48QMB03 (Black) W10115176...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KSSO48QMB03 (Black) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Control Baffle 2320635 Baffle, Control Assembly...

  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS For Model: KSSO48QMB03 (Black) Illus. Part DESCRIPTION 2302773 Control Box 2303938 Insert, Control 2302913 Circuit Board, Housing Control 2310197 Control Box Wire Harness 2221121 Support, Control 489006 Screw (2) 2306086 Display Board, Ingredient Care Center 2302716 Shield, Light 2162085 Socket, Light 2255743 Light Bulb 486194 Screw...
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSO48QMB03 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Top Grille 2310194 Wire Assembly Grille−Trim. Assembly RC/FC Light Switch Left Side 2259424B Black 2215910 Grommet 2259421B Black 2259320 Cover, Unit 489348 Clamp 1161548 Nut 486194 Screw...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSO48QMB03 (Black) W10115176...
  • Page 10 REFRIGERATOR SHELF PARTS For Model: KSSO48QMB03 (Black) Illus. Part DESCRIPTION 2222593 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin 2302843 Meat Pan Cover Assembly 2302836 Crisper Cover Assembly 2257583 Trim, Glass Rear 2252413 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side 2302955 Right Side 2302831 Trim, Glass Front 2256255 Trim, Glass Rear...
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSO48QMB03 (Black) W10115176...
  • Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSO48QMB03 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2259385 Fan Motor 2215650 Cover, Emitter 2259493 Cover, Receiver 2198665 Tube, P.C. Board Liner (Not A 2317088 Harness, Evap Fan 2169142 Fan Blade Serviceable Part) (Includes Item 55) 2223733 Retainer,...

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Model: KSSO48QMB03 (Black) W10115176...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Model: KSSO48QMB03 (Black) Illus. Part DESCRIPTION 2222970 Ice Bin 2222969 Crusher Bin 2258222 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2198602 Block, Blade 489229 Roll Pin...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSO48QMB03 (Black) W10115176...
  • Page 16 REFRIGERATOR DOOR PARTS For Model: KSSO48QMB03 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2252331 Refrigerator Trim, Door Trim, Door Door Panel (Hinge Side) (Handle Side) (Includes 2257686B Black 2259040B Black Item #9) Trim (Bottom) Cover, Screw 2266854 Hinge Assembly, 2215995B Black (Hinge Side) 2259448B Black...

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSO48QMB03 (Black) W10115176...
  • Page 18 FREEZER DOOR PARTS For Model: KSSO48QMB03 (Black) Illus. Part DESCRIPTION Freezer Door Panel (Includes Item #14) 2320572B Black 2304896 Safety Barrier 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2222810 Door Gasket, Magnetic Cover, Screw (Hinge Side) 2259448B Black Trim, Door (Handle Side) 2259041B Black...

  • Page 19: Dispenser Front Parts

    DISPENSER FRONT PARTS For Model: KSSO48QMB03 (Black) W10115176...
  • Page 20 DISPENSER AND FRONT PARTS For Model: KSSO48QMB03 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Housing, Dispenser Lever, Water Front Cover (Not Serviced) Dispenser Assembly 2195051 Strain Relief 2259395B Black (Includes Items 2310199 Wire Assembly 2194719 Spring, Lever 4, 11, 24 &...
  • Page 21 UPPER UNIT PARTS For Model: KSSO48QMB03 (Black) W10115176...
  • Page 22 UPPER UNIT PARTS For Model: KSSO48QMB03 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2317982 Drier 2310217 Wiring Harness, 2304175 Inverter Box 2310207 Wire Assy. Unit Compartment 489373 Screw, Compressor (Condenser Fan) Mounting (4) 2206036 Motor, Fan 2302967 Compressor 2190685 Blade, Fan (Includes Items Following Parts Not Illustrated...
  • Page 23 LOWER UNIT AND TUBE PARTS For Model: KSSO48QMB03 (Black) W10115176...
  • Page 24 LOWER UNIT AND TUBE PARTS For Model: KSSO48QMB03 (Black) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 2316683 Cover, Wiring 2316684 Cover, Box 2259354 Tube, Discharge 9791833 Clip 2306094 Evaporator 2306389 Heater, Defrost 1113048 Clamp, Heater (2) 2316794 Seal, Return Air...

  • Page 25: Icemaker Parts

    ICEMAKER PARTS For Model: KSSO48QMB03 (Black) W10115176...
  • Page 26 ICEMAKER PARTS For Model: KSSO48QMB03 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2252228 Bracket, Icemaker 2320600 Cover, Bottom Motor (Not Mounting Electrical Serviceable, Order 2320636 Complete Icemaker 2310191 Wire Assembly, Item 35) Assembly Icemaker 628356 Cup−Water Fill 628379 Clip, Fuse 627843 Ejector 2320654 Tube, Filter Inlet...
