Spout Rotator; Control Levers; Clean-Out Tool - Simplicity I75246E Setup & Adjustment Instructions Manual

Intermediate Frame Snowthrowers
Assembly

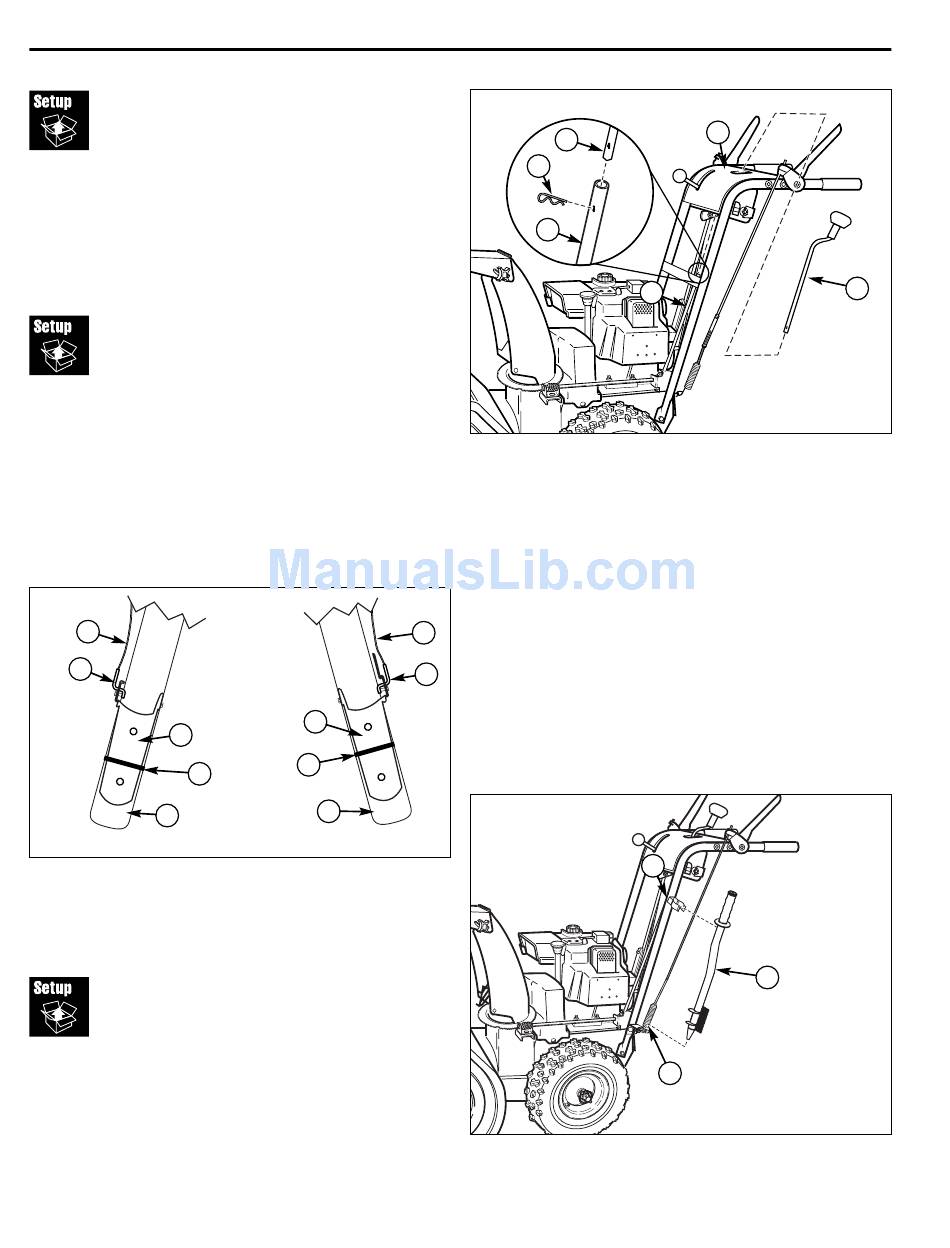

Spout Rotator

On models with folding handles the spout rotator is two
pieces and needs to be connected. Remove crank han-
dle (A, Figure 7) from its packaging. Slide crank handle
(A) through dash (B) and slide into crank tube (C) line up
holes and secure with hair pin (D).
Assembly

Control Levers

On models with control lever cables need to be checked.
Remove wire ties or cardboard tubes (A, Figure 6) that
secure the control levers (B) to the handles (D). Make
sure that the "Z" bend ends (C) of the control cables (E)
are secured in the holes on the control levers (B) as
shown. Check that the cables (E) are not kinked and
have freedom of movement.
E
C
B
A
D
Figure 6. Control Levers (Tube Handle Models)
A. Wire Ties
B. Control Levers
C. "Z" Bend Ends
Assembly

Clean-Out Tool

A clean-out tool is included with all models. Check to be
sure the clean-out tool is secured as shown in figure 8.
TP 300-5196-00-IS-SN
E
C
B
A
D
D. Handles
E. Control Cables
A
D
C
Figure 7. Control Levers (Folding Handle Models)
A. Crank Handles
B. Dash
Figure 8. Clean-Out Tool (all Models)
A. Clean-Out Tool
B. Lower Clip
6
B
C
C. Crank Tube
D. Hair Pin
C
A
B
C. Upper Clip
A
