Simplicity intermediate frame snow thrower initial setup
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Intermediate Frame Snowthrowers
Briggs & Stratton Yard Power Products Group
Copyright © 2007 Briggs & Stratton Corporation
Milwaukee, WI USA. All Rights Reserved
09/2007

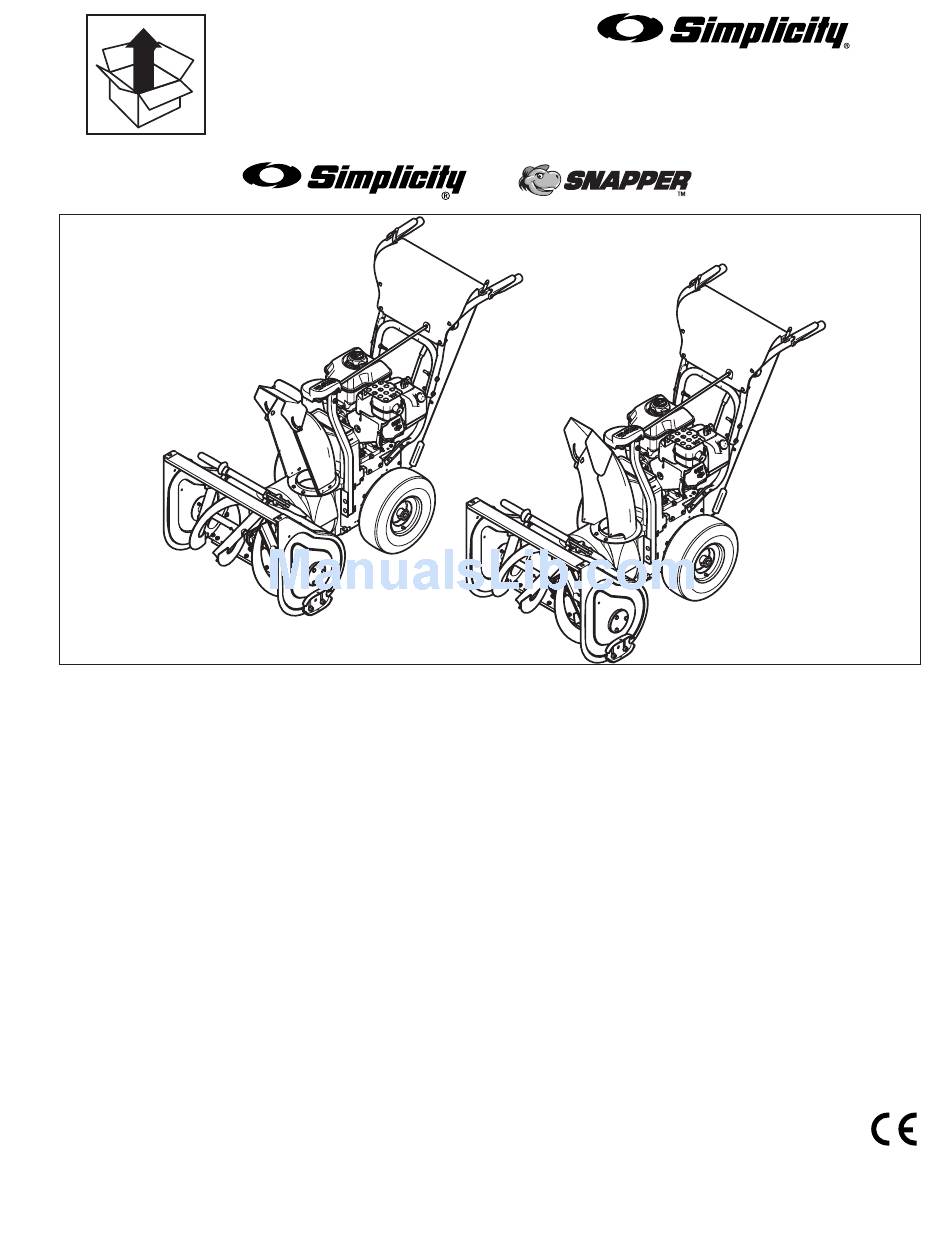

Initial setup
This Dealer Setup Instruction covers the following products:
Intermediate Frame Snowthrowers
Mfg. No.
Description
1695302
SMI I1924E, 9GT, B&S 24
1695311
SMI I1924EX, 9GT, B&S 24 (CE)
1695410
SMI I1924EX, 9GT, B&S 24 (CE)
1695313
SNP I1924E, 9GT, B&S 24
1695314
SNP I1924EX, 9GT, B&S 24 (CE)
1695411
SNP I1924EX, 9GT, B&S 24 (CE)
M A N U FAC T U R I N G , I N C.
TP 300-4681-01-IW-SN
Form No. 1735249

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9GT and is the answer not in the manual?

Questions and answers

Related Manuals for Simplicity 9GT

Summary of Contents for Simplicity 9GT

  • Page 1 Milwaukee, WI USA. All Rights Reserved 09/2007 Initial setup Description SMI I1924E, 9GT, B&S 24 SMI I1924EX, 9GT, B&S 24 (CE) SMI I1924EX, 9GT, B&S 24 (CE) SNP I1924E, 9GT, B&S 24 SNP I1924EX, 9GT, B&S 24 (CE) SNP I1924EX, 9GT, B&S 24 (CE) M A N U FAC T U R I N G , I N C.

  • Page 2: General Operation

    Intermediate Frame Snowthrowers Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. The triangle in text signifies important cautions or warnings which must be followed.

  • Page 3: Table Of Contents

    Table of Contents Unpacking ..........4 1.
  • Page 4 Intermediate Frame Snowthrowers TP 300-4681-01-IW-SN (2) x Size 15 x 5.0-6 1,38 16 x 4.8-8 09/2007...
  • Page 5 09/2007 Intermediate Frame Snowthrowers 5/16-18 x 2 5/16-18 x 2-3/4 7 Nm 5 lb-ft 5/16-18 5/16 TP 300-4681-01-IW-SN...
  • Page 6 Intermediate Frame Snowthrowers TP 300-4681-01-IW-SN 5/16-18 x 1-1/2 5/16-18 09/2007...
  • Page 7 Intermediate Frame Snowthrowers 09/2007 TP 300-4681-01-IW-SN...
  • Page 8 Intermediate Frame Snowthrowers TP 300-4681-01-IW-SN 09/2007...
  • Page 9 Intermediate Frame Snowthrowers 09/2007 TP 300-4681-01-IW-SN...

  • Page 10: Perform Safety Checks

    Intermediate Frame Snowthrowers Perform Safety Checks Check Engine Controls 1. Make sure all safety guards are in place and all nuts, bolts, clips, cotter pins and wires are secure. 2. Check to make sure spark plug wire is attached. 3. Check all controls for proper operation: a.

  • Page 11: Check Snowthrower Controls

    Perform Safety Checks Check Snowthrower Controls 1. Check the skid shoes to make sure they are set at the desired height. Adjust if necessary. 2. Check the traction drive control (B, Figure 2). Snowthrower motion should stop when the control is released.

  • Page 12: Auger Drive Adjustment

    Intermediate Frame Snowthrowers Auger Drive Adjustment WARNING Do not over-tighten, as this may lift the lever and cause auger drive to be engaged without depressing the Auger Control. 1.With the drive lever released, the hook (B, Figure 3) should barely touch the lever (C) without raising it. There can be a maximum 1/32”...

  • Page 13: Traction Drive Adjustment

    WARNING Do not over-tighten, as this may cause traction drive to engage without depressing the traction drive control (arm must remain in down position). Verify that the cables are not over-tightened: With speed selector in position 1 and traction drive control fully released, push snowthrower forward.

  • Page 14: Scraper Bar & Skid Shoe Adjustment

    Intermediate Frame Snowthrowers 7. Loosen shift lever nuts (B, Figure 6), and position the shift speed lever (A) in the lowest forward speed. Figure 6. Shift Lever Adjustment A. Shift Lever B. Nuts, 1/4-20 8. Note the position of the friction wheel (A, Figure 7). The correct distance from the right side of the friction wheel to the outside of the frame is 4-5/16”...

  • Page 15: Belt Adjustment

    Belt Adjustment Auger Drive Belt If your snowthrower will not discharge snow, check the control cable adjustment. If it is correct, then check the condition of the auger drive belt. If it is damaged or loose,replace it (see Belt Replacement in this section of the manual).

  • Page 16: Belt Replacement

    Intermediate Frame Snowthrowers Belt Replacement Auger Drive Belt The drive belts are of special construction and must be replaced with original factory replacement belts available from your nearest authorized service center. Some steps require the assistance of a second person. If the auger drive belt is damaged, the snow thrower will not discharge snow.
  • Page 17 Figure 14. Rotator Shaft Removal A. Pin, Hair B. Shaft Figure 15. Offset Tube (Lower) Removal A. Nuts, KEPS, hex, 5/16-18 B. Bolts, Carriage, 5/16 x 1-1/2 C. Tube, Offset D. Bracket, tube support 9. Remove hair pin (A, Figure 14) and slide rod (B) backward about 3 inches (until shaft separates from the worm drive).

  • Page 18: Traction Drive Belt

    Intermediate Frame Snowthrowers Figure 18. Traction Belt Change A. Swing Plate B. Alignment Tabs 17. Slide spout rotator rod (B, Figure 14) into worm gear, and secure with hair pin (A). 18. Install rotator cover (A, Figure 13) and secure with 5/16-18 flange lock nut (B).
