CRAFTSMAN nextec HAMMERHEAD 320.61352 Operator's Manual

12.0-volt lithium-ion cordless auto-hammer.
Hide thumbs

Advertisement

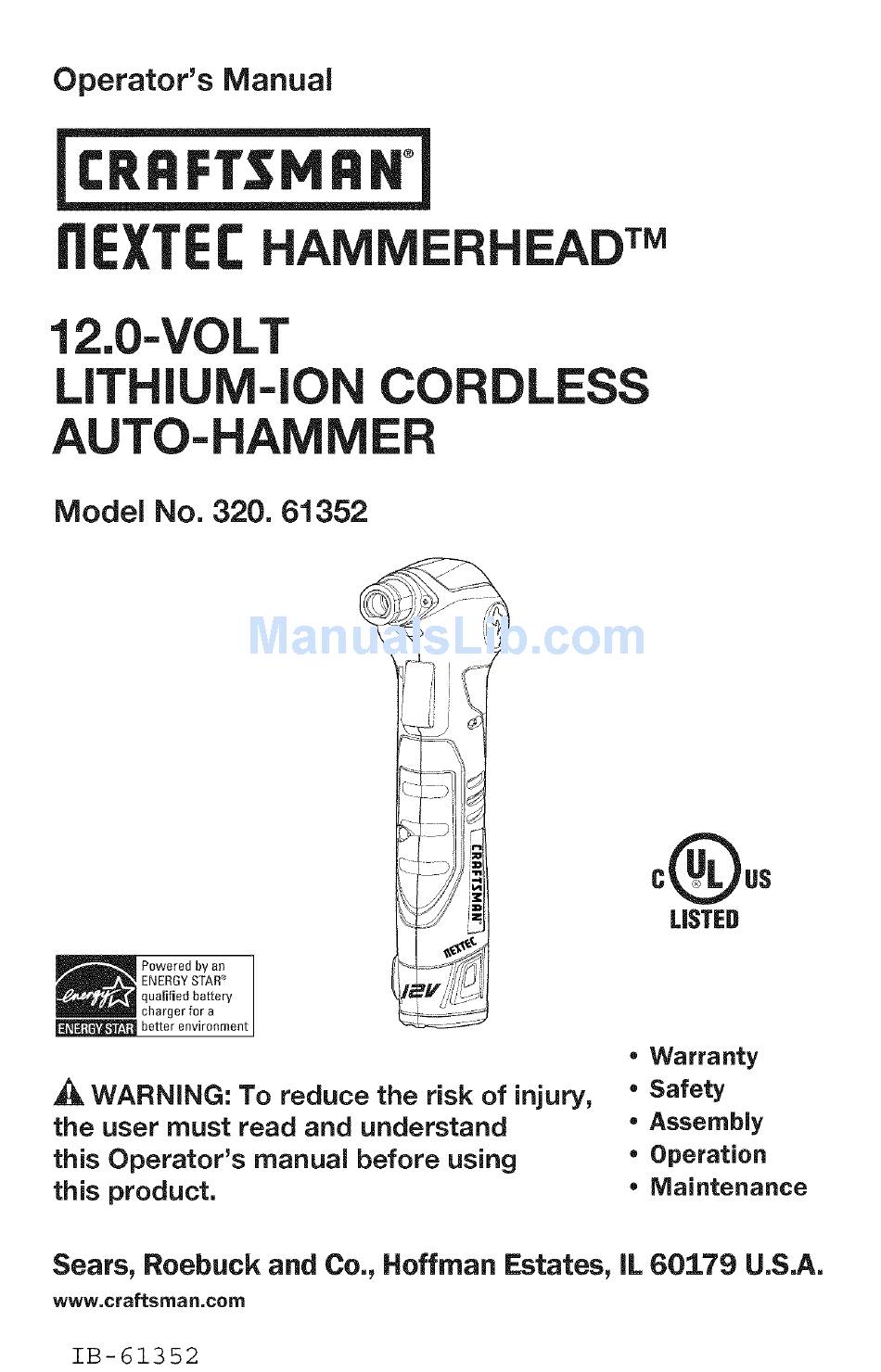

Operator's
Manual
n
T
HAMMERHEAD TM
12.0-VOLT
LITHIUM-ION
CORDLESS
AUTO-HAMMER
Model
No. 320. 61352
Powered by an
ENERGY STAR"
quaJified battery
charger for a
better environment
WARNING:
To reduce
the risk of injury,
the user must read and understand
this Operator's
manual
before
using
this product.
* Warranty
* Safety
* Assembly
* Operation
* Maintenance
Sears, Roebuck
and Co., Hoffman
Estates,
IL 60179
U.S.A.
www,craftsman,com
IB-61352

Advertisement

   Related Manuals for CRAFTSMAN nextec HAMMERHEAD 320.61352

   Summary of Contents for CRAFTSMAN nextec HAMMERHEAD 320.61352

  • Page 1

    * Warranty * Safety WARNING: To reduce the risk of injury, the user must read and understand * Assembly * Operation this Operator's manual before using * Maintenance this product. Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www,craftsman,com IB-61352...

  • Page 2

    If this Craftsman tool fails to give complete satisfaction within one year from the date of purchase, return it to any Sears store or parts & repair center or other craftsman outlet in the United States for free repair (or replacement, if repair proves impossible).

  • Page 3: Safety Symbols

    The purpose of safety symbols is to attract you attention to possible dangers. The safety symbols, and the explanations with them, deserve your careful atten- tion and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warning they give are no substitutes for proper accident...

  • Page 4

    Some of these following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles...

  • Page 5

    GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. The term "power tool" in all of the warnings listed below refer to corded power tools or battery-operated (cordless) power tools.

  • Page 6

    Keep the Auto-Hammer dry, clean, and free from oil and grease. Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum- based products or any strong solvent to clean the hammer. Do not expose the Auto=Hammer to rain or wet conditions. Water entering the tool will increase the risk of electric shock.

  • Page 7

    Use safety equipment. Always wear eye protection. Safety equipment, such as dust masks, non-skid safety shoes, hard hat and hearing protection, used for appropriate conditions will reduce personal injuries. Avoid accidental starting. Ensure that the switch is in the off position before plugging in.

  • Page 8

    Disconnect the plug from the power source and/or the batter pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar...

  • Page 9

    When the battery pack is not in use, keep it away from other metal objects, such as paper clips, coins, keys, nails screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

  • Page 10

    SERVICE Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. • When servicing a power tool, use only identical replacement parts. Follow instructions in the Maintenance section...

  • Page 11

    KNOW YOUR HAMMER (Fig. 1) Fig. 1 Battery pack release button Battery pack Trigger switch Magnetic sleeve Hammerhead (recessed within magnetic sleeve) PRODUCT SEPCIFICATION Clamp 7/16-in. Motor 12 Volt DC Hammer Weight (without battery) 1.1 Ibs Battery Type Lithium-Ion Battery Voltage 12.0 Volt DC Charger Input 120-Volts,...

  • Page 12

    HAMMERHEAD Fig. 2 Magnetic The hammerhead impacts Sleeve nails automatically when the tool is turned on. Magnetic Sleeve MAGNETIC SLEEVE The magnetic sleeve holds the head of the inserted nail against the recessed hammerhead the beginning of nail driving. The sleeve retracts at the end of nail driving to allow the hammerhead to drive the nail...

  • Page 13

    LOW BATTERY CAPACITY iNDiCATOR • If the LED begins to rapidly flash when the trigger switch is depressed, battery pack's power has run out, and the battery pack should be recharged. Unlike other battery pack types, Lithium-Ion battery packs deliver fade-free power for their entire run time.

  • Page 14: Assembly

    Make sure that the latch on the battery pack snaps into place and the battery pack is secured to the tool before beginning operation. TO DETACH BATTERY PACK (Fig. 3} CAUTION: Avoid the possibility of accidental starting: always take care not to activate the trigger switch when attaching the battery pack or making any adjustment...

  • Page 15

    HAMMERING NAILS (Fig. 6) Fig. 6 1. Attach the battery pack to the Auto-Hammer. Secure the material to be nailed with clamps to keep it from turning when hammering. Insert the head of the nail into the magnetic sleeve and up against the hammerhead, where it will be held in place by magnetism.

  • Page 16

    Recommended Nails to Use The Auto-Hammer is versatile for use with a variety of nails. Nails with diameters less than 7/16-in and lengths equal to or less than 2-1/2 in. are recommended for use with this Auto-Hammer. Refer to below table for recommended nails to use with: Nail Type Size...

  • Page 17: Maintenance

    To avoid serious personal injury, always remove the battery pack from the tool when cleaning or performing any maintenance. WARNING: When servicing, use only identical Craftsman replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING: It is not recommended...

  • Page 18

    12.0 VOLT LITHIUM-ION CORDLESS AUTO-HAMMER MODEL NUMBER 320.61352 The Model Number will be found on the Nameplate attached to the handle of the Auto-Hammer. Always mention the Model Number when ordering parts for this tool. 61352 Manual_Revised_08 0924 Page 18...

  • Page 19

    12.0 VOLT LITHIUM-ION CORDLESS AUTO-HAMMER MODEL NUMBER 320.61352 The Model Number will be found on the Nameplate attached to the handle of the Auto-Hammer. Always mention the Model Number when ordering parts for this tool. 3704397000 Nail Remover 2770153000 5120 Power Pack 3704254000 Handle Hoop 2822577000...

  • Page 20: Troubleshooting

    Your Home For expert troubleshooting and home solutions advice: manage home www.managemyhome.com For repair - in your home - of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it ! For the replacement parts, accessories and owner's manuals that you need to do-it-yourself For Sears professional installation of home appliances...
