Craftsman 315.113861 Operator's Manual

3/8 in., 18 volt drill variable speed/reversible
Hide thumbs

Advertisement

Quick Links

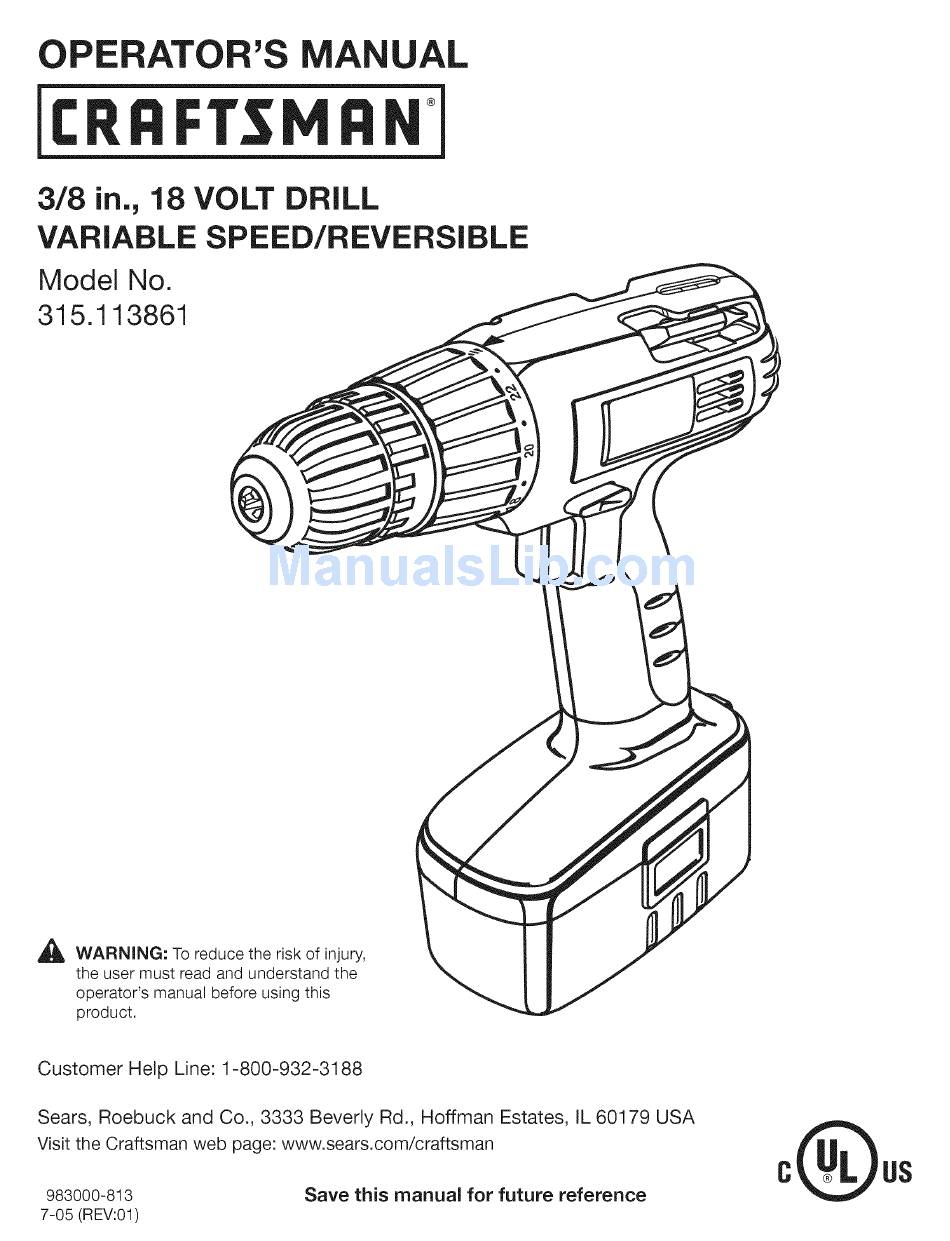

PERATOR'S
T$
MANUAL
®
3/8 in., 18 VOLT DRILL
VARIABLE SPEED/REVERSIBLE
Model No.
315.113861
WARNING:
To reduce the risk of injury,
the user must read and understand the
operator's manual before using this
product.
Customer
Help Line: 1-800-932-3188
Sears, Roebuck
and Co., 3333 Beverly Rd., Hoffman
Estates, IL 60179 USA
Visit the Craftsman web page: www.sears.com/craftsman
983000-813
Save this manual
for future
reference
7-05 (REV:01)
C

Advertisement

loading

  Related Manuals for Craftsman 315.113861

  Summary of Contents for Craftsman 315.113861

  • Page 1 Customer Help Line: 1-800-932-3188 Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 USA Visit the Craftsman web page: www.sears.com/craftsman 983000-813 Save this manual for future reference 7-05 (REV:01)
  • Page 2: One Year Full Warranty

    If this Craftsman tool fails to give complete satisfaction within one year from date of purchase, RETURN IT TO THE NEAREST SEARS STORE IN THE UNITED STATES, and Sears will replace it, free of charge. If this Craftsman tool is used for commercial or rental purposes, this warranty applies for only 90 days from the date of purchase.
  • Page 3 [] Do not overreach. Keep proper footing and balance _IL WARNING! READ AND UNDERSTAND ALL IN= at all times. Proper footing and balance enable better STRUCTIONS. Failure to follow all instructions listed control of the tool in unexpected situations. below may result in electric shock, fire and/or serious [] Use safety equipment.
  • Page 4 SERVICE When servicing a tool, use only identical replace- [] Toolservicemustbe performed only by qualified merit parts. Follow instructions in the Maintenance repair personnel. Service or maintenance performed section of this manual. Use of unauthorized parts or by unqualified personnel may result in a risk of injury. failure to follow Maintenance Instructions may create a risk of shock or injury.
  • Page 5 could result in a risk of fire and electric shock. If WARNING! READ AND UNDERSTAND ALL extension cord must be used, make sure: INSTRUCTIONS. Failure to follow aii instructions a. That pins on plug of extension cord are the listed below, may result in electric shock, fire same number, size and shape as those of and/or serious personal injury.
  • Page 6 Someofthefollowing symbols maybeusedonthistool.Please study themandlearn theirmeaning. Proper i nterpreta- tionofthesesymbols willallowyouto operate thetoolbetterandsafer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Current Am pe res Hertz Frequency (cycles per second) Watt Power Minutes Time Alternating Current Type of current Direct Current Type or a characteristic of current No Load Speed Rotational speed, at no load...
  • Page 7 Thefollowing signal w ordsandmeanings a reintended to explain the levels ofriskassociated w iththis product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not avoided, will DANGER: result in death or serious injury. Indicates a potentially hazardous situation, which, if not avoided, could WARNING: result in death or serious injury.
  • Page 8 PRODUCT SPECiFICATiONS Clutch ..............24 Position Chuck ............3/8 in. Keyless Motor ..............18 Volt DC Torque ..........Maximum 125 in.lb. Switch ............Variable Speed Charger Input ........120 V, 60 Hz, AC only No Load Speed ..........0-650/min. Charge Rate ............3 hours LEVEL TORQUE...
  • Page 9 KNOWYOURDRILL KEYLESS CHUCK See Figure 1. The keyless chuck allows you to hand-tighten or release Before attempting to use this product, familiarize yourself the drill bit in the chuck jaws. with all operating features and safety rules. LEVEL BIT STORAGE A level is located on the top of the motor housing to help you keep the drill bit level during use.
  • Page 10: Charging The Battery

    [] Press down on battery pack to be sure contacts on WARNING: Do not allow familiarity with tools to battery pack engage properly with contacts in charging make you careless. Remember that a careless stand. fraction of a second is sufficient to inflict serious [] The charge indicator light (LED), located on the charg- injury.
  • Page 11 BATTERY PACK TO REMOVE BATTERY PACK SHOWNIN CHARGER See Figure 3. ADAPTER [] Lock the switch trigger on the drill by placing the direc- tion of rotation selector in the center position. [] Locate the latches on the side of the battery pack and depress to release the battery pack from the drill.
  • Page 12 NOTE: The drill will not run unless the direction of rotation ,_hk WARNING: Battery tools are always in operating selector is pushed fully to the left or right. condition. Therefore, the switch should always be Avoid running the drill at low speeds for extended periods locked when not in use or carrying at your side.
  • Page 13 BIT STORAGE ADJUSTABLE TORQUE CLUTCH See Figure 7. The drill is equipped with an adjustable torque clutch for When not in use, bits provided with the drill can be placed driving different types of screws into different materials. in the storage area located on the top of the drill. The proper setting depends on the type of material and the size of screw you are using.
  • Page 14 INSTALLINGBITS See Figures 8 - 9. [] Lock the switch trigger by placing the direction of rotation selector in the center position. [] Open or close the chuck jaws to a point where the opening is slightly larger than the bit size you intend to use.
  • Page 15 DRILLING LEVEL See Figure 10. A level is located on top of the motor housing to help keep the drill bit level during use. [] Check the direction of rotation selector for the correct setting (forward or reverse). [] Secure the material to be drilled in a vise or with clamps to keep it from turning as the drill bit rotates.
  • Page 16: General Maintenance

    GENERAL MAINTENANCE WARNING: When servicing, use only identical Craftsman replacement parts. Use of any other part Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of may create a hazard or cause product damage.
  • Page 17: Chuck Removal

    CHUCK REMOVAL MALLET See Figures 11 - 13. The chuck may be removed and replaced by a new one. [] Lock the switch trigger by placing the direction of rota- tion selector in center position. [] Insert a 5/16 in. or larger hex key into the chuck of the drill and tighten the chuck jaws securely.
  • Page 18 CRAFTSMAN 18 VOLT DRILL- MODEL NUMBER 315.113861 number in all correspondence regarding your DRILL or when ordering repair parts. he model number will be found on a plate attached to the motor housing. Always mention the model SEE BACK PAGE FOR PARTS ORDERING...
