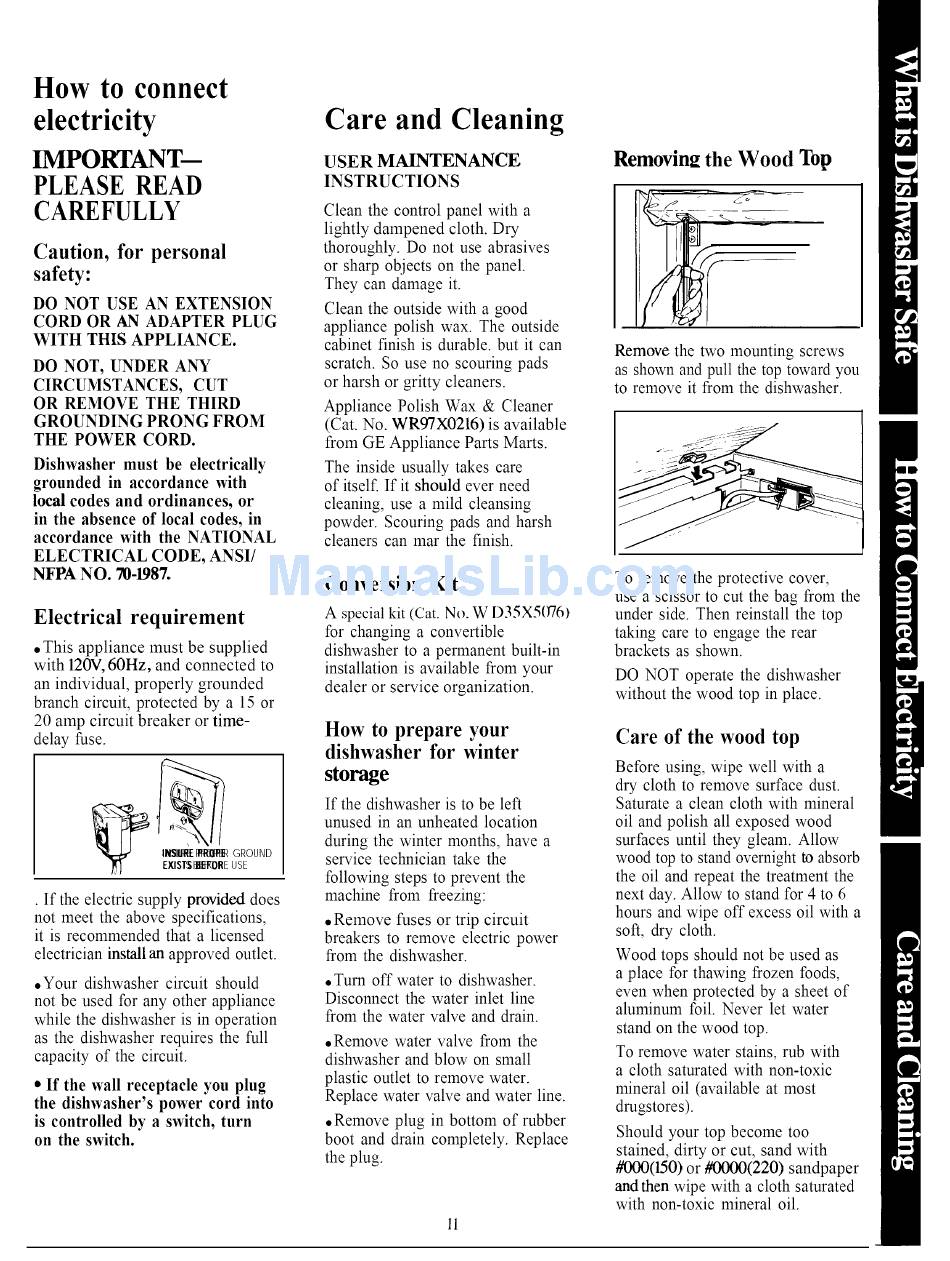

How to connect
electricity
IMPORTANT--
PLEASE READ
CAREFULLY
Caution, for personal
safety:
DO NOT USE AN EXTENSION
CORD OR AN ADAPTER
PLUG
WITH THIS APPLIANCE.
DO NOT, UNDER ANY
CIRCUMSTANCES,
CUT
OR REMOVE
THE THIRD
GROUNDING
PRONG
FROM
THE POWER
CORD.
Dishwasher
must be electrically
grounded
in accordance
with
local codes and ordinances,
or
in the absence
of local codes, in
accordance
with the NATIONAL
ELECTRICAL
CODE, ANSI/
NEPA NO. 70-1987.
Electrical
requirement
• This appliance
must be supplied
with 120V, 60Hz, and comlected
to
an individual,
properly
grounded
branch circuit, protected
by a 15 or
20 amp circuit breaker or time-
delay fuse•
IN_
GROUND
EXISTS [B_t(ORE USE
• If the electric supply provided does
not meet the above specifications,
it is recommended that a licensed
electrician install an approved outlet.
• Your dishwasher circuit should
not be used for any other appliance
while the dishwasher is in operation
as the dishwasher requires the full
capacity of the circuit.
* If the wall receptacle you plug
the dishwasher's
power
cord into
is controlled by a switch, turn
on the switch.
Care and Cleaning
USER MAINTENANCE
INSTRUCTIONS
Clean the control panel with a
lightly dampened cloth. Dry
thoroughly. Do not use abrasives
or sharp objects on the panel.
They can damage it•
Clean the outside with a good
appliance polish wax• The outside
cabinet finish is durable, but it can
scratch. So use no scouring pads
or harsh or gritty cleaners.
Appliance Polish Wax & Cleaner
(Cat. No. WR97X0216) is available
from GE Appliance Parts Marts.
The inside usually takes care
of itself. If it should ever need
cleaning, use a mild cleansing
powder. Scouring pads and harsh
cleaners can mar the finish.
Conversion
Kit
A special kit (Cat. No. W D35X5(176)
for changing a convertible
dishwasher
to a permanent
built-in
installation is available from your
dealer or service organization.
How to prepare
your
dishwasher for winter
storage
If the dishwasher
is to be left
unused in an unheated
location
during the winter months, have a
service technician take the
following steps to prevent the
machine
from freezing:
• Remove fuses or trip circuit
breakers to remove electric power
from the dishwasher•
• Turn off water to dishwasher.
Disconnect
the water inlet line
from the water valve and drain•
• Remove water valve from the
dishwasher
and blow on small
plastic outlet to remove water.
Replace water valve and water line.
• Remove plug in bottom of rubber
boot and drain completely.
Replace
the plug.
11
Removing the Wood Top
Remove the two mounting
screws
as shown and pull the top toward you
to remove it from the dishwasher.
To remove the protective cover,
use a scissor to cut the bag from the
under side. Then reinstall the top
taking care to engage the rear
brackets as shown.
DO NOT operate the dishwasher
without the wood top in place.
Care of the wood top
Before using, wipe well with a
dry cloth to remove surface dust.
Saturate a clean cloth with mineral
oil and polish all exposed wood
surfaces until they gleam. Allow
wood top to stand overnight to absorb
the oil and repeat the treatment the
next day• Allow to stand for 4 to 6
hours and wipe off excess oil with a
soft, dry cloth.
Wood tops should not be used as
a place for thawing frozen foods,
even when protected
by a sheet of
aluminum
foil. Never let water
stand on the wood top•
To remove water stains, rub with
a cloth saturated with non-toxic
mineral oil (available at most
drugstores).
Should your top become too
stained, dirty or cut, sand with
#000(150) or #0000(220)
sandpaper
and then wipe with a cloth saturated
with non-toxic
mineral oil•
