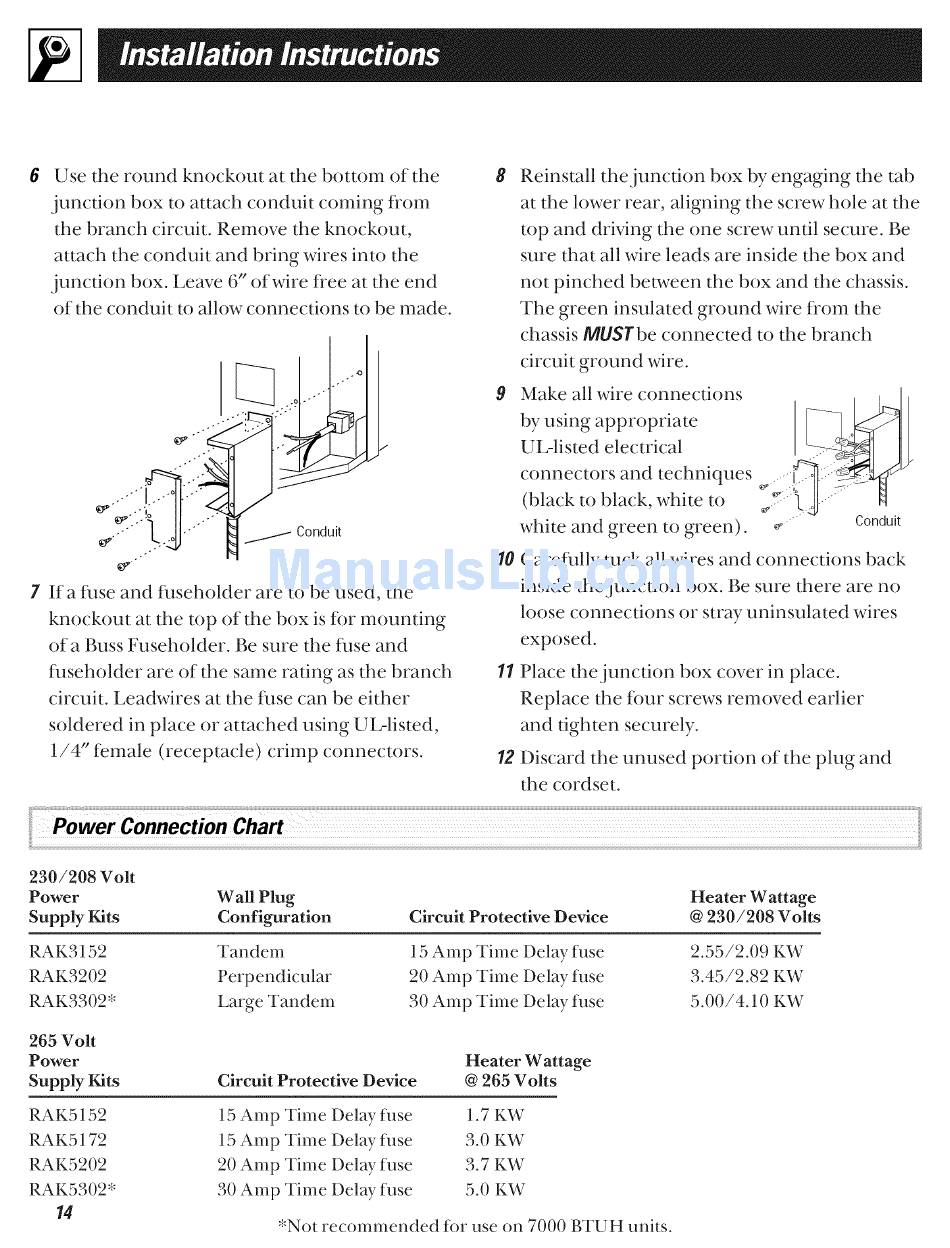

GE Zoneline 5200 Series Owner's Manual page 14

Use the round knockout at the bottom of the
junction box to attach conduit coming from
the branch circuit. Remove the knockout,
attach the conduit and bring wires into the
junction box. Leave 6" of wire free at the end
of the conduit to allow connections to be made.
1
7 Ifa fl_se and fl_seholder are to be used, the
knockout at the top of the box is for mounting
of a Buss Fuseholder. Be sure the fl_se and
fl_seholder are of the same rating as the branch
circuit. Leadwires at the fl_se can be either
soldered in place or attached using UL-listed,
1/4" female (receptacle) crimp connectors.
10
11
/2
Reinstall the junction box by engaging the tab
at the lower rear, aligning the screw hole at the
top and driving the one screw until secure. Be
sure that all wire leads are inside the box and
not pinched between the box and the chassis.
The green insulated ground wire from the
chassis MUSYbe connected to the branch
circuit ground wire.
Make all wire connections
by using appropriate
UL-listed electrical
connectors and techniques _ ......
(black to black, white to _.....
white andgreen togreen).
_ .... Conduit
Careflflly rock all wires and connections back
inside the junction box. Be sure there are no
loose connections or stray uninsulated wires
exposed.
Place the junction box cover in place.
Replace the four screws removed earlier
and tighten securely.
Discard the unused portion of the plug and
the cordset.
t,owoConnection
chaa
230/208 Volt
Power Wall Plug
Supply Kits Configuration
RAK3152 Tandem
RAK3202 Perpendicular
RAK3302* Large Tandem
Circuit Protective Device
15 Amp Time Delay fuse
20 Amp Time Delay fllse
30 Amp Time Delay thse
Heater Wattage
@ 230/208 Volts
2.55/2.09 KW
34 _
•. 5/2.82 KW
5.00/4.10 KW
265 Volt
Power
Supply Kits
RAK5152
RAK5172
RAK5202
RAK5302*
14
Circuit Protective Device
Heater Wattage
@ 265 Volts
15 Amp Time Delay fllse
15 Amp Time Delay fllse
20 Amp Time Delay fllse
30 Amp Time Delay fllse
1.7KW
3.0KW
3.7KW
5.0KW
*Not recommended fbr use on 7000 BTUH units.
