Summary of Contents for Olympus Single Use Cannula V StarTip V

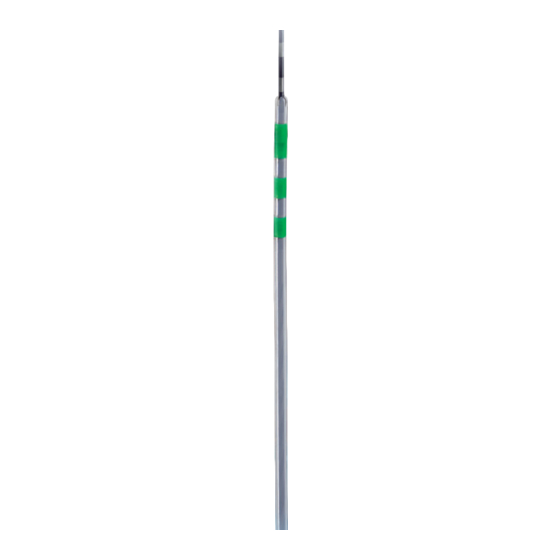

- Page 1 Single Use Cannula V Single Use Cannula V...
- Page 2 The Innovative V-System Design Lets You Proceed with Confidence and Efficiency The V-System is a complete system that integrates Olympus endoscopes and EndoTherapy devices. The revolutionary V-System design offers the option of guidewire manipulation by the physician or the assistant, allows easier exchange of catheters, and enhances cannulation capability.
- Page 3 Spacifications Model Shape of the distal end Distal tip diameter Portion Diameter Working length Compatible guidewire PR-V414Q Short taper 4.5Fr 1700mm 0.89mm(0.035inch) PR-V416Q Standard 4.0Fr 0.89mm(0.035inch) PR-V418Q Short taper 3.5Fr 0.64mm(0.025inch) PR-V420Q Long taper 3.5Fr 2.1mm 0.64mm(0.025inch) 1950mm PR-V427Q Slit 2.5Fr 0.89mm(0.035inch) PR-V434Q...
- Page 4 Single Use 3-Lumen Extraction Balloon V...
- Page 5 Confidence and Efficiency Precise Balloon Inflation and Efficient Stone Extraction The V-System is a complete system that integrates Olympus endoscopes and EndoTherapy devices. The revolutionary V-System design offers the option of guidewire manipulation by the physician or the assistant, allows easier exchange Multiple balloon sizing of catheters, and enhances cannulation capability.
- Page 6 Triple Lumen, Multi Size Balloon with Reliable, Efficient Stone Extraction with the Multi-Size Balloon Design, Three Pre-Measured Syringes, and The Sheath is Revolutionary V-System Exchange Capability for More Manufactured from a Special Material That Allows for Easier Cannulation, Exchange and Injection of Contrast Media. Precise Balloon Inflation and Efficient Stone Extraction Three pre-measured syringes for reliable inflation Multiple balloon sizing...
- Page 7 Spacifications Model B-V231P-A B-V231P-B Injection port Above Below Balloon diameter 8.5mm/11.5mm/15.0mm 8.5mm/11.5mm/15.0mm Sheath Distal end 5.5Fr/Proximal end 7Fr Distal end 5.5Fr/Proximal end 7Fr Working length 1900mm 1900mm Minimum channel size 2.8mm min 2.8mm min Compatible guidewire 0.89mm(0.035inch) 0.89mm(0.035inch) Radiopaque band One band at the distal end and one band One band at the distal end and one band at the proximal end of balloon...
- Page 9 Confidence and Efficiency The V-System is a complete system that integrates Olympus endoscopes and EndoTherapy devices. The revolutionary V-System design offers the option of guidewire manipulation by the physician or the assistant, allows easier exchange of catheters, and enhances cannulation capability.
- Page 10 Spacifications Model Basket type Rotatable/Guidewire type Working length Opening width Minimum channel size Compatible guidewire FG-V401QR 8wire type Rotatable type 1950mm 20mm 2.8mm FG-V402QR 4wire type Rotatable type 1950mm 22mm 2.8mm FG-V411Q 8wire type Guidewire type 1950mm 20mm 3.7mm 0.89mm(0.035inch) FG-V412Q 4wire type Guidewire type...
- Page 11 Single Use 2-Lumen Sphincterotome V Single Use 3-Lumen Sphincterotome V...
- Page 12 Confidence and Efficiency in ERCP Sphincterotomy The V-System is a complete system that integrates Olympus endoscopes and EndoTherapy devices. The revolutionary V-System design offers the option of guidewire manipulation by the physician or the assistant, allows easier exchange of The CleverCut3V offers excellent catheters, and enhances cannulation capability.
- Page 13 CleverCut coating enhances safety The CleverCut3V wire, injection lumen and guidewire efficient cannulation capability Olympus’s signature CleverCut coating on the lumen are arranged to allow easier orientation of the The CleverCut2V has two stiffening wires proximal end of the cutting wire minimizes damage cutting wire for effective sphincterotomy.
- Page 14 Spacifications Maximum insertion Model Lumen type Distal tip diameter Working length Compatible guidewire Tip length Knife length portion diameter KD-V411M-0320 20mm KD-V411M-0330 30mm KD-V411M-0720 20mm KD-V411M-0725 25mm 4.5Fr 0.89mm(0.035inch) KD-V411M-0730 30mm 3-Lumen type 2.5mm KD-V411M-1520 15mm 20mm KD-V411M-1530 15mm 30mm KD-V411M-3030 30mm 30mm...
- Page 15 DISPOSABLE GUIDEWIRE...
- Page 16 Confidence and Efficiency the Revolutionary Exchange Capability of the V-System. The V-System is a complete system that integrates Olympus endoscopes and EndoTherapy devices. The revolutionary V-System design offers the option of guidewire manipulation by the physician or the assistant, allows easier exchange of catheters, and enhances cannulation capability.
- Page 17 Note: This instrument meets the recognized standard for high frequency electrosurgical leakage current - ANSI/AAMI HF-18(1993), 4.2.5.2 and 5.2.5.2 - when used with an Olympus sphinctetorome. Removal of the guidewire is not necessary during sphincterotomy.
- Page 18 Spacifications Hydrophilic Model Outer diameter Working length Shape of distal portion coating length G-V210-3527S Straight 2,700mm G-V210-3527A Angulated 0.89mm(0.035") 500mm G-V210-3545S Straight 4,500mm G-V210-3545A Angulated Specifications, design and accessories are subject to change without any notice or obligation on the part of the manufacturer. Shinjuku Monolith, 3-1 Nishi-Shinjuku 2-chome, Shinjuku-ku, Tokyo 163-0914, Japan 491B River Valley Road #12-01/04,Valley Point Office Tower,Singapore 248373 Postfach 10 49 08, 20034 Hamburg / Wendenstrasse 14-18, 20097 Hamburg, Germany...
