Craftsman 917.2738t2 Owner's Manual
  1. Manuals
  2. Brands
  3. Craftsman Manuals
  4. Lawn Mower
  5. 917.2738t2
  6. Owner's manual
Craftsman 917.2738t2 Owner's Manual

Craftsman 917.2738t2 Owner's Manual

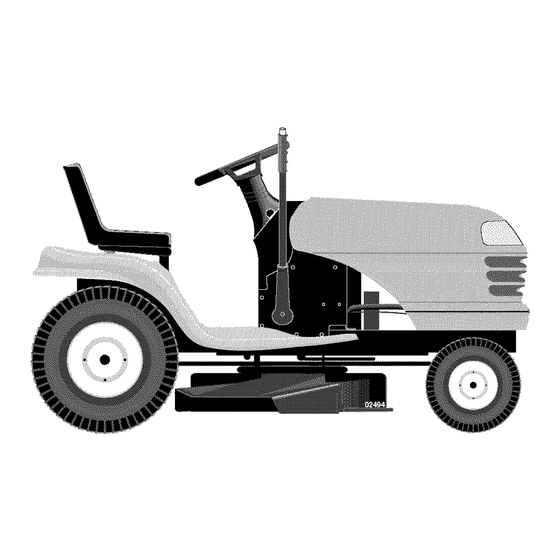

18.5 hp, 42" mower electric start 6 speed transaxle
