OPERATION

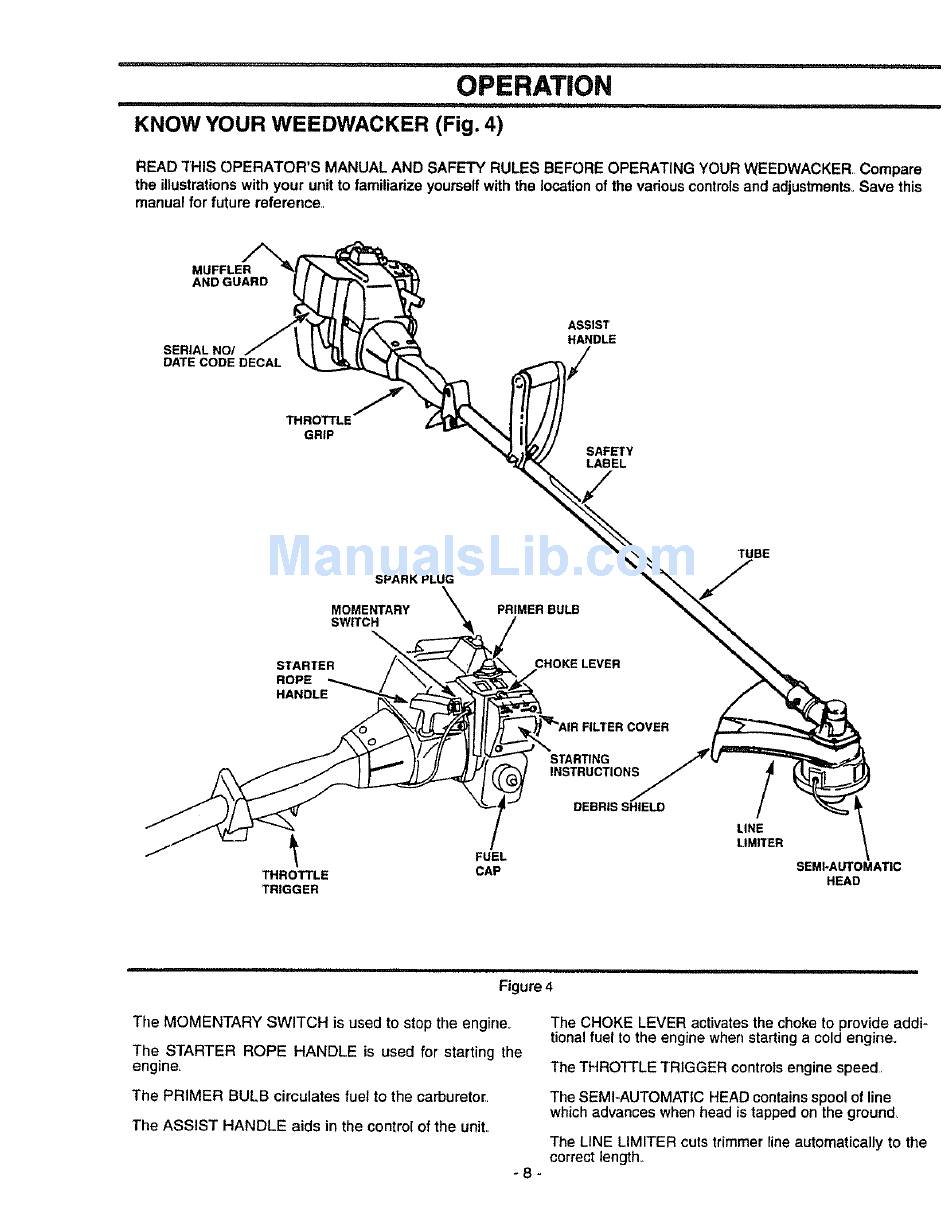

KNOW YOUR WEEDWACKER
(Fig. 4)
READ THIS OPERATOR'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR WEEDWACKER Compare
the illustrations with your unit to familiarize yourseff with the location of the various controls and adjustments. Save this
manual for future reference,
MUFFLER
AND GUARD
SERIAL NO/
DATE CODE DECAL
THROTTLE /
GRIP
ASSIST
HANDLE
SAFETY
LABEL
SPARK PLUG
MOMENTARY
SWITCH
STARTER
ROPE
HANDLE
THROTTLE
TRIGGER
PRIMER BULB
CHOKE LEVER
FUEL
CAP
R FILTER COVER
STARTING
INSTRUCTIONS
DEBRIS SHIELD
/
LINE
LIMrfER
SEMI-AUTOMATIC
HEAD
Figure 4
The MOMENTARY SWITCH is used to stop the engine.
The STARTER ROPE HANDLE is used for starting the
engine,
The PRIMER BULB circulates fuel to the carburetor.
The ASSIST HANDLE aids in the control of the unit.
-8 =
The CHOKE LEVER activates the choke to provide addi-
tional fuel to the engine when starting a cold engine.
The THROTTLE TRIGGER controls engine speed.
The SEMI-AUTOMATIC HEAD contains spool of line
which advances when head is tapped on the ground,
The LINE LIMITER cuts trimmer line automatically to the
correct length
