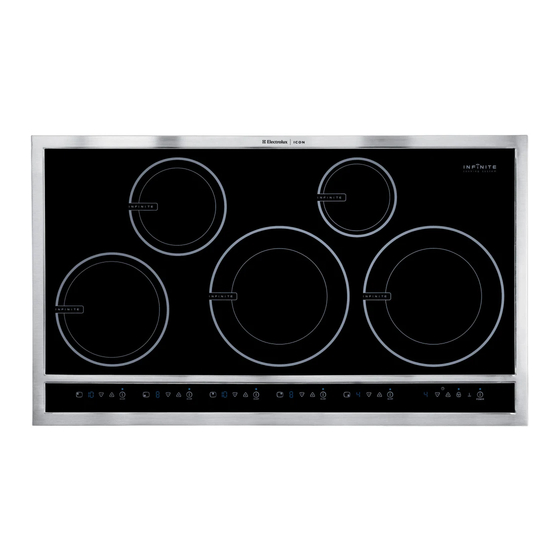

Electrolux E36IC75FSS4 Use & Care Manual

Induction cooktop
Hide thumbs

Advertisement

J_
Use
_
Care
Guide
-Induction
Cooktop

Advertisement

loading

  Also See for Electrolux E36IC75FSS4

  Related Manuals for Electrolux E36IC75FSS4

  Summary of Contents for Electrolux E36IC75FSS4

  • Page 1: Before Using The Cooktop

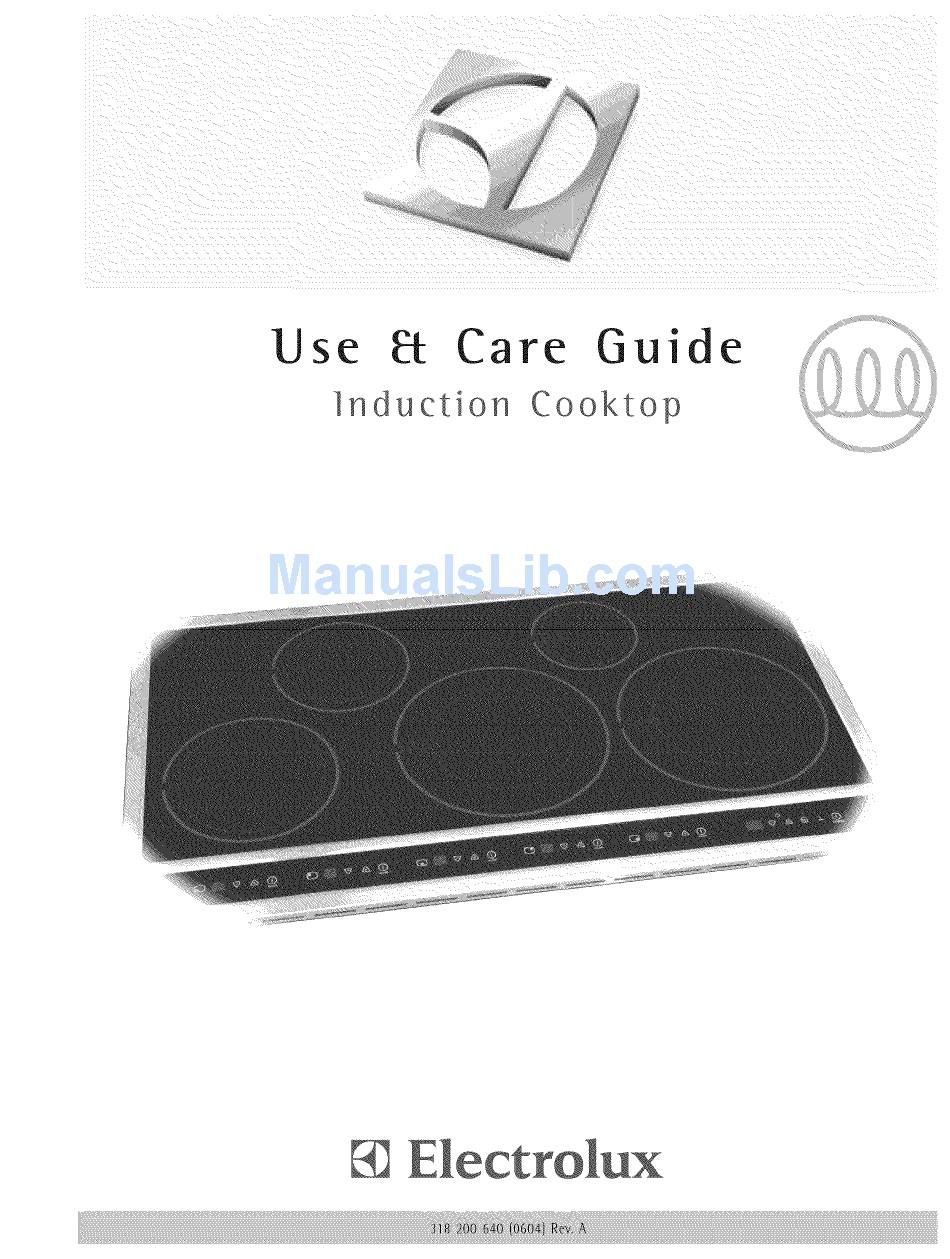

    Care Guide -Induction Cooktop...
  • Page 2: Finding Information

    Serial Number For toll-free telephone support in the U.S. and Canada: l=877-4ELECTROLUX (1-877-435-3287) For online support and internet product information: www.electrolu×.com ©2006 Electrolux Home Products, inc. Post Office Box 212378, Augusta, Georgia 30917, USA All rights reserved. Printed in the USA...
  • Page 3: Table Of Contents

    Finding information TABLE OF CONTENTS Finding Information .......... 2-3 GeneralCare& Cleaning....... 19-20 Makea Recordfor Futureuse ......... 2 CeramicGlassCooktopCleaning& Maintenance ... 19 Questions? ............... Cleaning Recommendations for Ceramic GlassCooktop........19-20 :: Safety ..............Important SafetyInstructions ........4 ::::: Solut ons to Common Prob ems 21-23 nduct on Cooktop Features ""...
  • Page 4: Safety

    Safety Read all instructions before using this appliance. Save these instructions for future reference. This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given. This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.
  • Page 5 Safety Code, Part 1, in Canada, and local code requirements. Install only per installation instructions provided in the hterature package for this apphance Ask your dealer to recommend a qualified technician and an authonzed repair service Know how to disconnect the electncal power to the apphance at the circuit breaker or fuse box in case of an emergency •...
  • Page 6 Safety iMPORTANT SAFETY iNSTRUCTiONS USING YOUR COOKTOP = Know which touch key pads controls each surface of the Cooking Zones. Clean the appliance regularly to keep all parts free of grease that could catch fire. Exhaust fan ventilation hoods and grease filters should be kept clean. Do not allowgrease to accumulate on hood or filter.
  • Page 7 ction Cooktop Features INDUCT ON COOKTOP FEATURES READ THESE iNSTRUCTiONS CAREFULLY BEFORE USING THE COOKTOP A COOLER COOKTOP-A unique feature of the Induction Cooktop is whether turned ON or OFF, the cooktop surface remains cooler than standard ceramic cooktops. MAGNETIC DETECTOR - The coil sensor automatically detects whether the pan is magnetic and eliminates accidental "tum-ONs."...
  • Page 8: Nduct)On Cooktopfeatures

    induction Cooktop Features )NDUCT)ON COOKTOPFEATURES (CONT'D} Fig 2. Fig 3. 6. Left Front Cooking Zone Control Pads. 7. Left Rear Cooking Zone Control Pads. 8 Central Cooking Zone Control Pads. 9. Right Rear Cooking Zone Control Pads. 10. Right Front Cooking Zone Pads. 11.
  • Page 9: Induction Cooktop Display Messages

    ii !;i ii i i ii i !i ii!i! ii! induction Cooktop Display Messages !!:!!!!!]!!]!i!!;!i ii!iii!iiiii!ililili_; iiiiiiiiii/iliiii!i!i!i!;_ii! i_i_iiii_i!i_i_i!i_iiSi!;iii! !iii!ii!_i_i_!_i_i_!_i% LED MESSAGESOR LIGHT IND_CATORS DmSPLAYED _;:_;;_]_]_]_]i!i:!_]: BY MAiN CONTROL CONTROLS LOCK[ - This feature allows the cooktop to be locked only when the cooktop is switched to OFR Touch and hold the LOCK key pad for 5 seconds.
  • Page 10: Ledmessages Or Lightindicatorsdisplayed By Cookin Zonecontrols

    induction Cooktop Display Messages LED MESSAGESOR LIGHT INDICATORS DISPLAYED BY COOKING ZONECONTROLS (CONT'D} POWER LEVEL SETTINGS - The Cooking Zones have five separate Power Level LEDs. Once active, the Cooking Zones will provide 10 Power Levels to choose from. These include 7 2, 3, _, 5, 6 (fig.
  • Page 11: Usethe Correctcookwaretype

    USETHE CORRECTCOOKWARETYPE The magnetic Cooking Zone sensors located below the cooktop surface require the use of cookware made with magnetic material in order to start the heating process on any of the Cooking Zones. When purchasing pans, look for cookware specifically identified by the manufacturer for use with Induction cooktops.
  • Page 12: Cookware Recommendations

    Before Using the Coo op COOKWARE RECOMMENDATIONS _CORRECT CORRECT = Cookware not centered on Cook- • Cookware centered correctly on ing Zone surface. Cooking Zone surface. • Curved or warped pan bottoms or • Flat pan bottom & straight sides. sides.
  • Page 13: Usequalitycookware In Goodcondition

    USEQUAU COOKWARE IN GOODCONDITION [] m The cookware used with the induction Cooktop should have flat bottoms that make good contact with the entire surface of the Cooking Zone. Check for flatness by rotating a ruler across the bottom of the cookware (See Fig. 21). Be sure to follow all the recommendations for using cookware as shown in Fig.
  • Page 14: Setting Surface Controls

    Setting Surface Controls USING THETOUCHCONTROL [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] The recommended way to use the touch pads on the cooktop is shown in Fig.
  • Page 15 OPE TING THE COOKING ZONES (CONTDI [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] II To Turn ON one or more of the Cooking Zones (cont'd) NOTE: Touch once, or repeatedly touch the _ or _ key pads to adjust or scroll through power levels at any time during the cooking process (To scroll through the...
  • Page 16: Preheatrecommendations

    Setting Surface Controls PREHEATRECOMMENDATIONS When preheating a pan on the cooktop always watch carefully. Whenever using the cooktop the user should always pay attention to any items cooking and remain attentive until the cooking process is complete. Keep in mind that induction may decrease the amount of time required to preheat a cooking utensil.
  • Page 17: Minute Timer

    Setting Surface Controls M[NUTET[MER [] [] [] [] [] [] [] [] [] [] [] [] [] [] To Cancel the Minute Timer: Touch the _ and _ key pads at the same time or touch and hold either the _ key pad and scroll to 00.
  • Page 18: Powersharing

    Setting Surface Controls POWER SHARING Your cooktop is equipped with five induction elements within three heating sections. The right-hand, left-hand and center Cooking Zones are powered by three independent induction inverters - one inverter for each heating sections. Two Cooking Zones in a heating section share the power of one inverter.
  • Page 19: Generalcare& Cleaning

    General Care & Cleaning CE MIC G SS COOKTOPCLEANING& MAINTENANCE Prior to using your cooktop for the first time, apply the recommended CookTop(b Cleaning Creme to the ceramic surface. Buff with a non-abrasive cloth or no-scratch cleaning pad. This will make cleaning easier when soiled from cooking.
  • Page 20: Cleaning Recommendations For

    General Care & Cieani CLEANING RECOMMENDATIONS FORTHECE MIC G SS COOKTOP (CONTINUED) If SOilSremain, carefully scrape soils with a metal razor blade scraper, holding scraper at a 30 degree angle to the surface. Remove loosened soils with cooktop cleaning cream and buff surface clean. IMPORTANT NOTE: Damage to the ceramic glass cooktop may occur ifyou use an abrasive type scratch pad.
  • Page 21: Cooktopturnsoffwhilecooking

    ENTIRECOOKTOPDOESNOT OPE_TE • Cooktop controls are locked. Set the cooktop controls to unlock the Cooktop (See p. 17 for further instructions). • Make sure household electrical circuit breaker is ON and that power is properly supplied to the Cooktop. • Service wiring not complete.
  • Page 22: Cookng Zoneheatsfood Toohot Or Not Enough

    Solutions to Common Problems COOKINGZONEH_T$ F_D HOT OR NOT HOT ENOUGH • Incorrect power level setting, Adjust the power level setting higher or lower and refer to recipe for guidance and adjust accordingly, FOODDOESNOT NEATEVENLY Lightweight or warped pans were used. Be sure to use good quality cookware (Refer to Figs.
  • Page 23: Metalmarkson Ceramic Cooktopglass

    Sliding or scraping of metal utensils on cooktop surface. DO NOT slide cookware or cooking utensils across the cooktop surface. Use the recommended ceramic glass cooktop cleaning creme to remove the marks. See "Cooktop Cleaning & Maintenance" in the General Care & Cleaning section (Refer to ps.
  • Page 24: Warranty Information

    Yourcooktop is protected by this warranty In the U.S.A., your appliance is warranted by Electrolux Home Products North America, a division of White Consolidatedindustries, Inc. We authorizeno personto change or add to any of our obligationsunder this warranty.Our obligationsfor service and parts under this warrantymust be performedby us or an authorized Electrolux Home Products North America servicer.In Canada, your appliance is warranted by Electrolux...
