KitchenAid KSSS48MDX00 Parts List

KitchenAid KSSS48MDX00 Parts List

48" built in refrigerator
Hide thumbs Also See for KSSS48MDX00:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Use and Care Manual, Instruction and Installation Manual
CABINET PARTS
48" BUILT IN
REFRIGERATOR
For Model: KSSS48MDX00
1
Part No. 4379847
5−95 Litho In U.S.A. (RCG)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS48MDX00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KSSS48MDX00

Summary of Contents for KitchenAid KSSS48MDX00

  • Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Model: KSSS48MDX00 Part No. 4379847 5−95 Litho In U.S.A. (RCG)

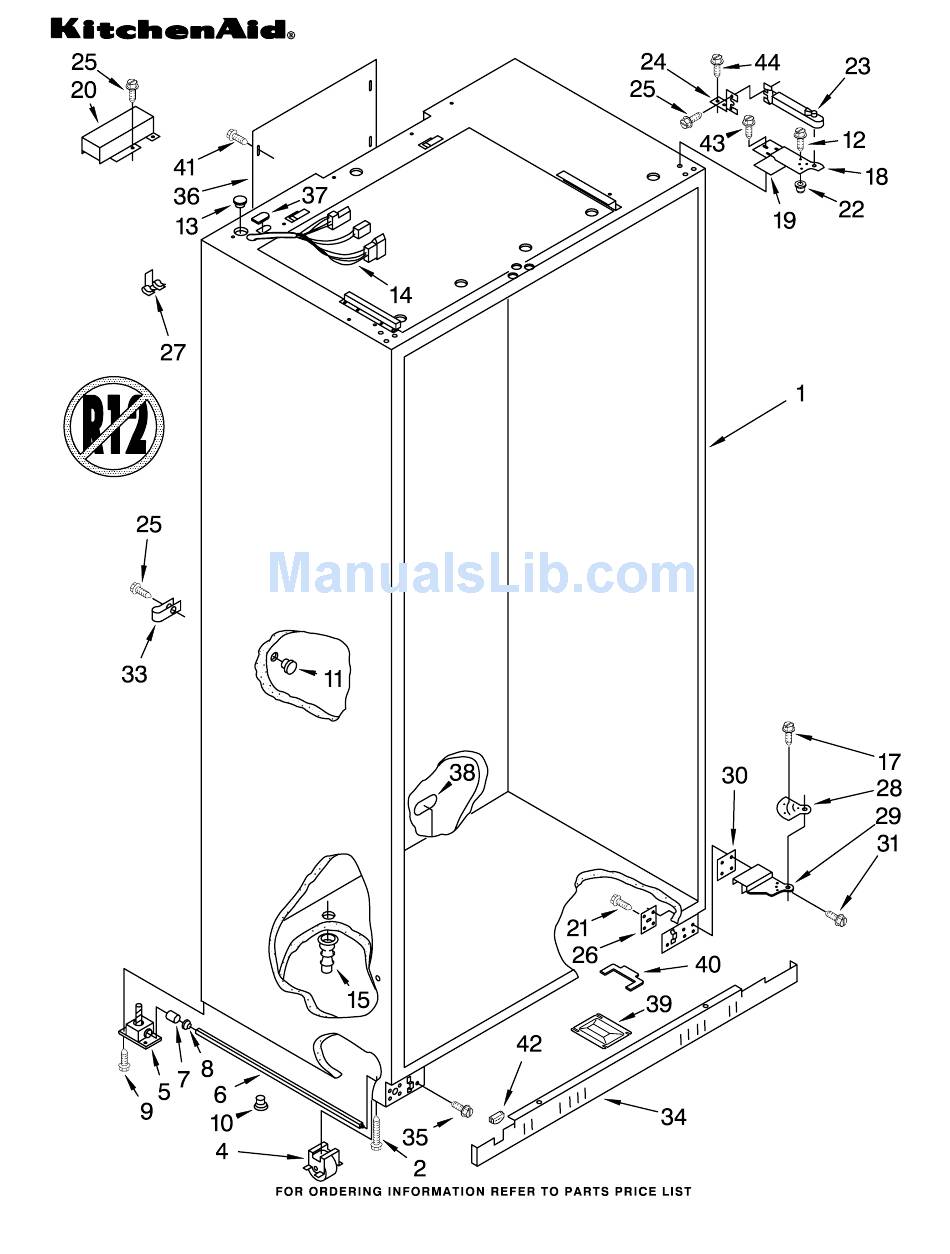

  • Page 2: Cabinet Parts

    CABINET PARTS For Model: KSSS48MDX00 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Cabinet (Not A 1112848 Drain Fitting Hinge (Bottom) Serviceable Part) 2001295 Shoulder Screw 2001978 Left Side 1112019 Leveler, Front (2) Hinge (Top) 2001977 Right Side 1112023 Roller, Front & 2001976 Left Side 1112942 Shim, Hinge (1) Rear (4)
  • Page 3 CABINET TRIM PARTS For Model: KSSS48MDX00 Illus. Part DESCRIPTION 2002194 Cabinet, Trim (2) 486194 Screw 2001297 Screw 2001190 Cabinet, Trim (Bottom) 488649 Screw 2002230 Cabinet, Trim Top 2000007 Retainer, Unit Base (2) 487944 Washer (2) 2002474 Retainer Clip 4379847...

  • Page 4: Freezer Liner Parts

    FREEZER LINER PARTS For Model: KSSS48MDX00 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 1113649 Bracket, Light 1113650 Lens 1112613 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control Panel (3) 842534 Clip, Air Duct (4) 1112260 Support,...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSS48MDX00 4379847...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KSSS48MDX00 Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2000740 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct 2003299 Inlay, Control Meat Pan...
  • Page 7 REFRIGERATOR CONTROL PANEL PARTS For Model: KSSS48MDX00 Illus. Part DESCRIPTION 1112642 Control Panel 2003303 Inlay, Control Panel 2000789 Circuit Board 2001738 Control Knob 837444 Retainer, Knob 1118894 Switch, Rocker Arm 1113137 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113775 Shield, Control Panel 1112613 Socket, Light (2)
  • Page 8 FREEZER CONTROL PANEL PARTS For Model: KSSS48MDX00 Illus. Part DESCRIPTION 1113627 Control Panel 2003309 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113136 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113769 Shield, Control Panel 1112613 Socket, Light...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSS48MDX00 4379847...
  • Page 10 REFRIGERATOR SHELF PARTS For Model: KSSS48MDX00 Illus. Part DESCRIPTION 2174404 Frame, Shelf 2003377 Glass, Shelf 1112006 Reflector, Shelf 1113792 Gasket, Glass (2) 2179375 Rack, Wine 2164372 Egg Bin 2003327 Frame, Assembly Meat Pan 2164373 Egg Carrier 1112247 Cover, Crisper 2003380 Glass, Crisper (Includes #9) 2000742 Meat Pan, Connector...

  • Page 11: Freezer Shelf Parts

    FREEZER SHELF PARTS For Model: KSSS48MDX00 Illus. Part DESCRIPTION 2003144 Solid Shelf 2003135 Front, Ice Compartment 1113638 Shelf, Fixed (2) 1112052 Shelf, Fixed−Deep 2001626 Basket (2) 2002727 Ice Container 2003045 Front Cover Slide, Container 2002720 Right Side 2002721 Left Side 2003046 Hole Plug, Front 2003047 Hole Plug, Rear 2003114 Trim, Basket...
  • Page 12 TOP GRILLE AND UNIT COVER PARTS For Model: KSSS48MDX00 Illus. Part DESCRIPTION 2002584 Top Grille Assembly 2003267 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw 2002956 Decortive Panel Assembly 2003480 Guard, Compressor Wiring 2003483 Guard, Water Valve Wiring 4379847...

  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSS48MDX00 4379847...
  • Page 14 REFRIGERATOR DOOR PARTS For Model: KSSS48MDX00 Illus. Part DESCRIPTION 2002834 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2001983 Hinge Assembly, 1113955 Gasket 489282 Screw 2002073 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112542 Gasket Retainer, Top & Bottom 2001049 Door Gasket, Magnetic 489089 Screw (40)

  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSS48MDX00 4379847...
  • Page 16 FREEZER DOOR PARTS For Model: KSSS48MDX00 Illus. Part DESCRIPTION 2002867 Freezer Door Panel (Includes Insulation) 2002074 Hinge, Bottom 489282 Screw 2001984 Hinge, Top 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top & Bottom 2000878 Door Gasket, Magnetic 489089 Screw (36) 2002226 Handle, Door 2001230 Washer 2002007 Door, Spacer...
  • Page 17 UPPER UNIT PARTS For Model: KSSS48MDX00 4379847...
  • Page 18 UPPER UNIT PARTS For Model: KSSS48MDX00 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 851095 Wire Tie (2) 2003398 Assembly, Unit 2164492 Drier Base Following Parts Not Illustrated 2169135 Motor, Fan 2163787 Clip, Compressor and Optional Parts Not Included Mounting (4) 1108179 Blade, Fan 2169444 Compressor...
  • Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSS48MDX00 4379847...
  • Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSS48MDX00 Illus. Part DESCRIPTION 2000528 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003015 Tube, Connect (Drier) 2002994 Heater, Drain Pan 1113062 Hanger, Heater 1113105 Bracket, Heater 487534 Screw 2002995 Tube, Discharge 2003272 Sleeve...
  • Page 21 AIR FLOW AND RESERVOIR PARTS For Model: KSSS48MDX00 4379847...
  • Page 22 AIR FLOW AND RESERVOIR PARTS For Model: KSSS48MDX00 Illus. Part DESCRIPTION 2003200 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2000618 Motor, Wiring 488500 Screw, Ground 488366 Clamp, Tube 489348 Clamp, Nylon 2001145 Channel, Wiring 1112871 Fastner 2000783 Scroll, Fan...

  • Page 23: Icemaker Parts

    ICEMAKER PARTS For Model: KSSS48MDX00 4379847...
  • Page 24 ICEMAKER PARTS For Model: KSSS48MDX00 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2001087 Clamp Tube 489322 Screw 489084 Screw 628399 Module Assembly 487857 Nut 2154472 Connector 489276 Screw 628355 Cover 841707 Insert, Tube 2171593 Shut Off Arm 628228 Mold & Heater 628379 Clip, Fuse (Also Order 627915 Bracket...
