KitchenAid KSSS48MDX04 Parts List

KitchenAid KSSS48MDX04 Parts List

48" built in refrigerator
Hide thumbs Also See for KSSS48MDX04:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Use and Care Manual

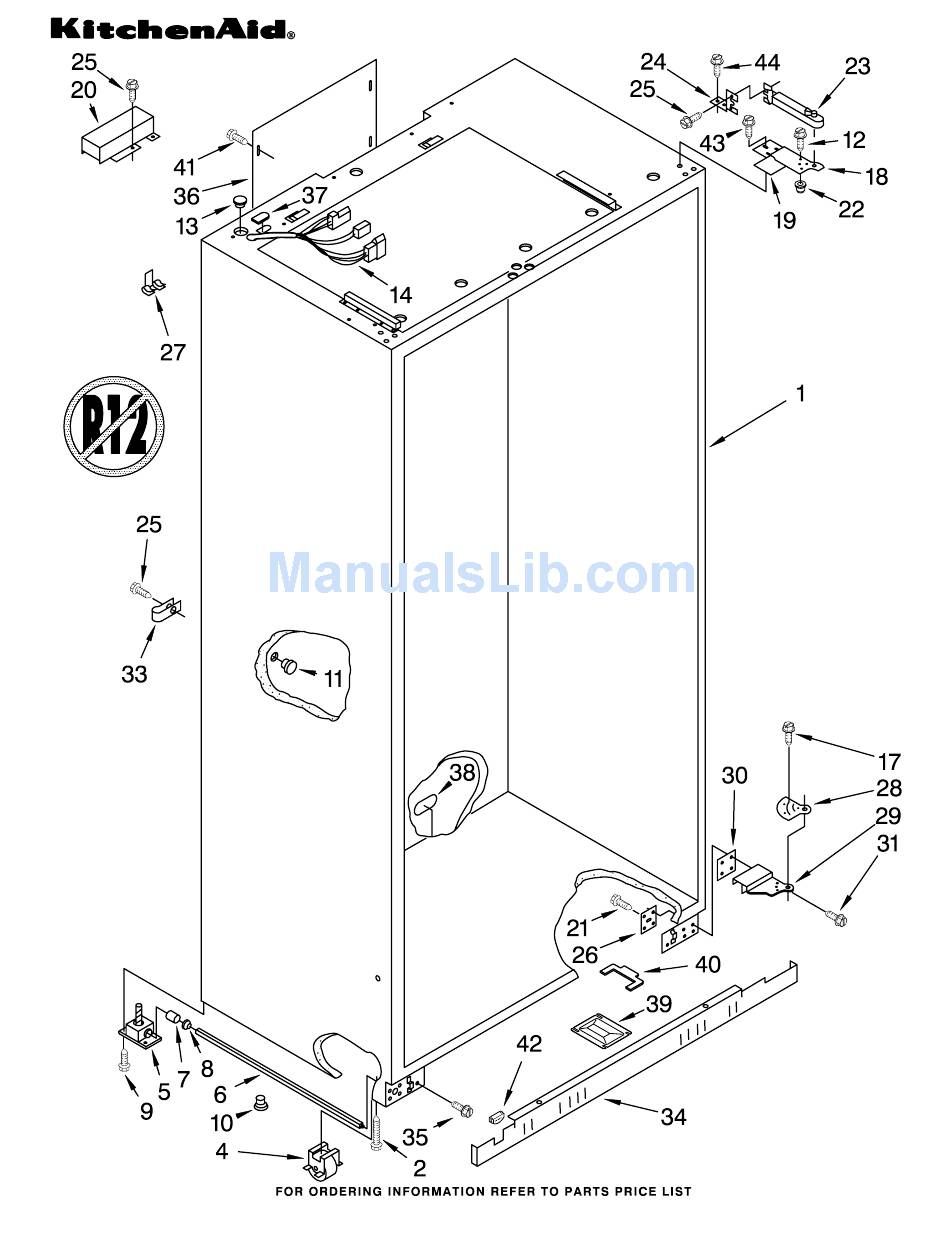

CABINET PARTS
48" BUILT IN
REFRIGERATOR
For Model: KSSS48MDX04
9−96 Litho In U.S.A. (RCG)
1
Part No. 4394496

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS48MDX04 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KSSS48MDX04

Summary of Contents for KitchenAid KSSS48MDX04

  • Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Model: KSSS48MDX04 9−96 Litho In U.S.A. (RCG) Part No. 4394496...

  • Page 2: Cabinet Parts

    489359 Screw 1112939 Hole Plug, Leveler 1112849 Cap, Grommet 2002902 Stop Screw 1113122 Grommet, Wiring 2003805 Wiring Harness, Cabinet CABINET PARTS For Model: KSSS48MDX04 Illus. Part DESCRIPTION 2001295 Shoulder Screw Hinge (Top) 2001976 Left Side 2001975 Right Side 2000770 Shim, Hinge...
  • Page 3 4394496 CABINET TRIM PARTS For Model: KSSS48MDX04 Illus. Part DESCRIPTION 2003643 Cabinet, Trim (2) 2003857 Screw 2001297 Screw 2003592 Cabinet, Trim (Bottom) 488649 Screw 2003647 Cabinet, Trim Top...

  • Page 4: Freezer Liner Parts

    FREEZER LINER PARTS For Model: KSSS48MDX04 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 1113649 Bracket, Light 1113650 Lens 1112613 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSS48MDX04 4394496...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KSSS48MDX04 Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air Duct Cover...
  • Page 7 REFRIGERATOR CONTROL PANEL PARTS 4394496 For Model: KSSS48MDX04 Illus. Part DESCRIPTION 1112642 Control Panel 2003303 Inlay, Control Panel 2004005 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113137 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3)
  • Page 8 FREEZER CONTROL PANEL PARTS For Model: KSSS48MDX04 Illus. Part DESCRIPTION 1113627 Control Panel 2003309 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113136 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3)

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSS48MDX04 4394496...
  • Page 10 REFRIGERATOR SHELF PARTS For Model: KSSS48MDX04 Illus. Part DESCRIPTION 2174404 Frame, Shelf 2003377 Glass, Shelf 1112006 Reflector, Shelf 1113792 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2003327 Frame, Assembly Meat Pan 2164373 Egg Carrier 1112247 Cover, Crisper 2003380 Glass, Crisper...

  • Page 11: Freezer Shelf Parts

    4394496 FREEZER SHELF PARTS For Model: KSSS48MDX04 Illus. Part DESCRIPTION 2003144 Solid Shelf 2003135 Front, Ice Compartment 1113638 Shelf, Fixed (2) 1112052 Shelf, Fixed−Deep 2001626 Basket (2) 2002727 Ice Container 2003045 Front Cover Slide, Container 2002720 Right Side 2002721 Left Side...
  • Page 12 TOP GRILLE AND UNIT COVER PARTS For Model: KSSS48MDX04 Illus. Part 2003715 Top Grille 2003267 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw 2003724 Decortive Panel 2003480 Guard, Compressor 2003483 Guard, Water DESCRIPTION Assembly Assembly Wiring Valve Wiring 4394496...

  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSS48MDX04 4394496...
  • Page 14 REFRIGERATOR DOOR PARTS For Model: KSSS48MDX04 Illus. Part DESCRIPTION 2003872 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2001983 Hinge Assembly, 1113955 Gasket 489282 Screw 2003986 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112542 Gasket Retainer, Top & Bottom...

  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSS48MDX04 4394496...
  • Page 16 FREEZER DOOR PARTS For Model: KSSS48MDX04 Illus. Part DESCRIPTION 2003878 Freezer Door Panel (Includes Insulation) 2003985 Hinge, Bottom 489282 Screw 2001984 Hinge, Top 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top & Bottom 2000878 Door Gasket, Magnetic 486194 Screw (36)
  • Page 17 UPPER UNIT PARTS For Model: KSSS48MDX04 4394496...
  • Page 18 Relay (See Overload) 2169137 Capacitor 486899 Screw 487869 Screw 2003392 Condenser 943447 Grommet (4) 1113019 Clamp (4) UPPER UNIT PARTS For Model: KSSS48MDX04 Illus. Part DESCRIPTION 487522 Screw 851095 Wire Tie (2) 2164492 Drier 2169135 Motor, Fan 1108179 Blade, Fan...
  • Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSS48MDX04 4394496...
  • Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSS48MDX04 Illus. Part DESCRIPTION 2000528 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve 2003015 Tube, Connect (Drier) 2002994 Heater, Drain Pan 1113062 Hanger, Heater...
  • Page 21 AIR FLOW AND RESERVOIR PARTS For Model: KSSS48MDX04 4394496...
  • Page 22 AIR FLOW AND RESERVOIR PARTS For Model: KSSS48MDX04 Illus. Part DESCRIPTION 2003200 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2003926 Deflector, Air Duct 488500 Screw, Ground 488366 Clamp, Tube...

  • Page 23: Icemaker Parts

    ICEMAKER PARTS For Model: KSSS48MDX04 4394496...
  • Page 24 227991 Connector, Wire 2003477 Water Valve, Harness 2001320 Inlet Water Line 489348 Clamp, Nylon Valve PARTS NOT ILLUSTRATED ICEMAKER PARTS For Model: KSSS48MDX04 Illus. Part DESCRIPTION 2001087 Clamp Tube 487857 Nut 2174155 Cover 628228 Mold & Heater (Also Order 542638 Silicone...
