CABINET PARTS
REFRIGERATOR
For Model: KSSS48MAX03
9−93 Litho In U.S.A.
Part No. 4379181
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS48MAX03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KitchenAid KSSS48MAX03

  • Page 1 CABINET PARTS REFRIGERATOR For Model: KSSS48MAX03 9−93 Litho In U.S.A. Part No. 4379181...

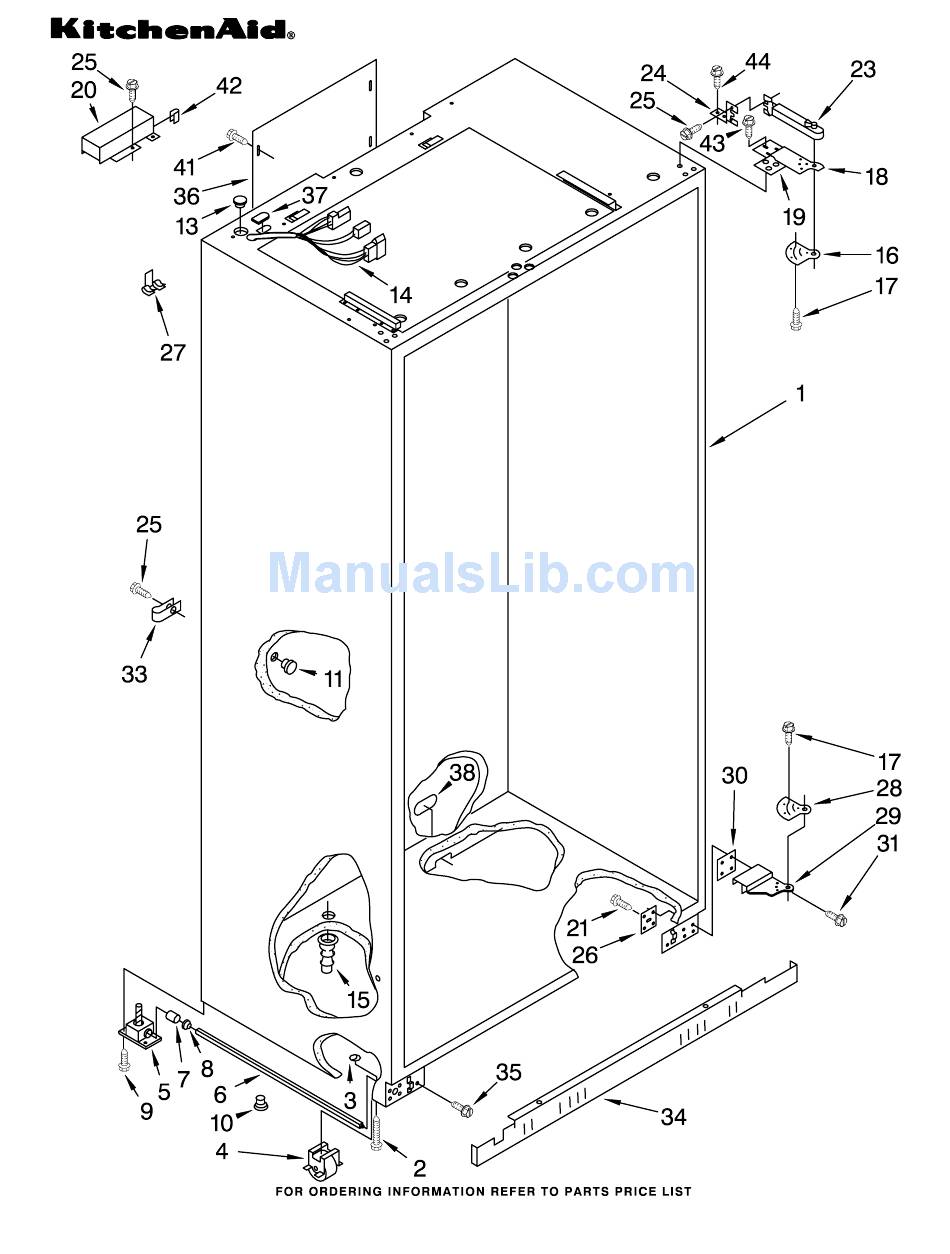

  • Page 2: Cabinet Parts

    Hole Plug, Leveler 11 1112849 Cap, Grommet 13 1113122 Grommet, Wiring 14 2000835 Wiring Harness, Cabinet 15 1112848 Drain Fitting CABINET PARTS For Model: KSSS48MAX03 Illus. Part DESCRIPTION Gap, Cover Assembly (Top) 2000305 Left Side 2000304 Right Side 17 2001295 Shoulder Screw...
  • Page 3 CABINET TRIMS AND BREAKER TRIM PARTS For Model: KSSS48MAX03 4379181...
  • Page 4 CABINET TRIMS AND BREAKER TRIM PARTS For Model: KSSS48MAX03 Illus. Part 1 2001764 5 1112682 6 1112679 1112681 2000321 10 2000322 11 2001297 12 1112802 488649 2001311 15 2000007 487944 DESCRIPTION Breaker Trim & Retainer Assembly Magnet, Side (4) Magnet,...
  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSS48MAX03 4379181...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KSSS48MAX03 Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 2 1112591 Spacer, Control Panel (3) 5 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw, 8 x 1−1/4 (8) 486194 Screw, 8 x 1/2...
  • Page 7: Freezer Liner Parts

    4379181 FREEZER LINER PARTS For Model: KSSS48MAX03 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2 1113649 Bracket 3 1113650 Light Lens 4 1112613 Light Socket 547225 Light Bulb 538533 Support Clip, Icemaker (2) 7 2000193 Grommet, Screw (2) 488552 Screw, 10−12 x 3/8 (2)
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSS48MAX03 Illus. Part 1 2001317 2 1113356 3 2001579 4 2001088 486194 6 1113300 7 1113317 DESCRIPTION Decorative Panel Assembly Back Up Panel Top Grille Assembly Cover, Unit Screw Cover, Component Assembly...
  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSS48MAX03 4379181...
  • Page 10: Freezer Shelf Parts

    Gasket, Glass (2) 5 1125913 Rack, Wine 6 1112324 Retainer Glass 7 1112014 Frame Assembly 9 1112247 Cover, Crisper FREEZER SHELF PARTS For Model: KSSS48MAX03 Illus. Part DESCRIPTION 10 1113238 Glass, Crisper 11 2000742 Meat, Pan Connector 14 2000554 Crisper Pan...
  • Page 11: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSS48MAX03 4379181...
  • Page 12 6 2000698 Hinge Assembly, Bottom 7 1112533 Gasket Retainer, Side (2) 8 1112542 Gasket Retainer, Top & Bottom REFRIGERATOR CONTROL PANEL PARTS For Model: KSSS48MAX03 Illus. Part DESCRIPTION 9 2001049 Door Gasket, Magnetic 489101 Screw, 7 x 1/2 (36) 11 2000323...
  • Page 13: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSS48MAX03 4379181...
  • Page 14 2000721 Hinge, Top 9 2000303 Spacer Plate 10 2000697 Door, Spacer Bottom FREEZER CONTROL PANEL PARTS FREEZER DOOR PARTS For Model: KSSS48MAX03 Illus. Part DESCRIPTION 12 1112533 Gasket Retainer, Side (2) 13 1112539 Gasket Retainer, Top & Bottom 14 2000878...
  • Page 15 UPPER UNIT PARTS For Model: KSSS48MAX03 4379181...
  • Page 16 16 1113015 Condenser 943447 Grommet (4) 18 1113019 Clamp (4) 487522 Screw, 8−32 x 5/8 (4) UPPER UNIT PARTS For Model: KSSS48MAX03 Illus. Part DESCRIPTION 20 1113228 Wire Tie (2) 21 1108023 Drier 22 2000358 Mounting Bracket, Motor 23 1113081...
  • Page 17 LOWER UNIT AND TUBE PARTS For Model: KSSS48MAX03 4379181...
  • Page 18 LOWER UNIT AND TUBE PARTS For Model: KSSS48MAX03 Illus. Part DESCRIPTION 1 2000528 Defrost Bi−Metal 2 1113043 Clamp, Bi−Metal 486194 Screw, 8 x 1/2 4 1113293 Tube, Connect (Suction) 5 1113209 Tube, Connect (Discharge) 6 1113296 Tube, Flow Divider (2)
  • Page 19 AIR FLOW AND RESERVOIR PARTS For Model: KSSS48MAX03 4379181...
  • Page 20 AIR FLOW AND RESERVOIR PARTS For Model: KSSS48MAX03 Illus. Part DESCRIPTION 1 2001086 Fan Motor 3 2154800 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw, 8 x 1/2 8 2000618 Motor, Wiring 488500 Screw, Ground 488366...
  • Page 21: Icemaker Parts

    ICEMAKER PARTS For Model: KSSS48MAX03 4379181...
  • Page 22 627018 Nut, Compression 227991 Connector, Wire 13 2000837 Water Valve, Harness 14 2001320 Copper, Water Line PARTS NOT ILLUSTRATED ICEMAKER PARTS For Model: KSSS48MAX03 Illus. Part DESCRIPTION 489348 Clamp, Nylon Valve 16 1113066 Clamp Tube 487857 18 1113703 Cover 628228 Mold &...
