Summary of Contents for KitchenAid KSSS48MDX03
- Page 1 CABINET PARTS 48" BUILT IN REFRIGERATOR For Model: KSSS48MDX03 6−96 Litho In U.S.A. (RCG) Part No. 4394439...
-

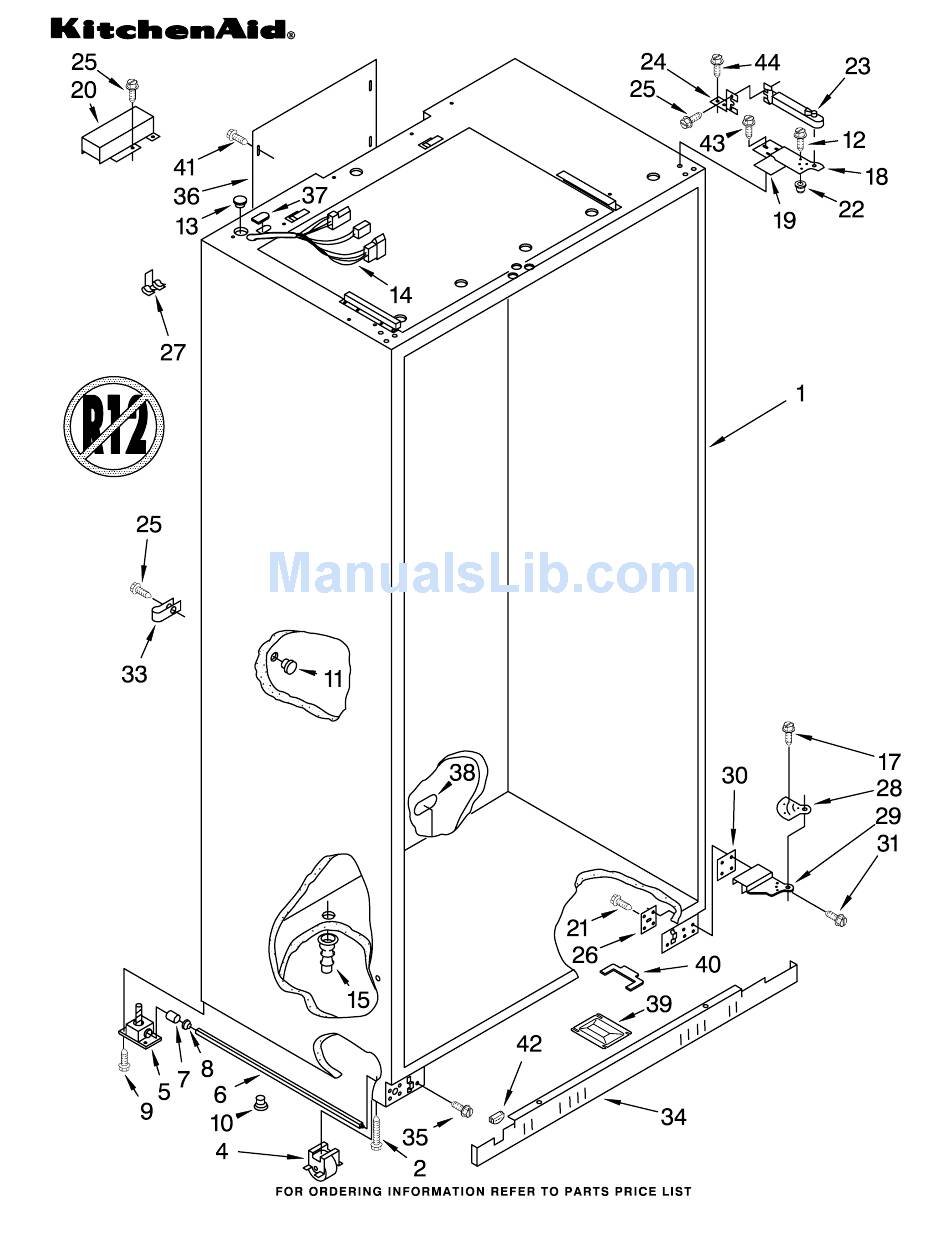

Page 2: Cabinet Parts
CABINET PARTS For Model: KSSS48MDX03 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Hinge (Top) Cabinet (Not A Hinge (Bottom) 2001976 Left Side Serviceable Part) 2001978 Left Side 1112019 Leveler, Front (2) 2001975 Right Side 2001977 Right Side 1112023 Roller, Front & 2000770 Shim, Hinge 1112942 Shim, Hinge (1) Rear (4) - Page 3 CABINET TRIM PARTS For Model: KSSS48MDX03 Illus. Part DESCRIPTION 2003643 Cabinet, Trim (2) 2003857 Screw 2001297 Screw 2003592 Cabinet, Trim (Bottom) 488649 Screw 2003647 Cabinet, Trim Top 4394439...
-
Page 4: Freezer Liner Parts
FREEZER LINER PARTS For Model: KSSS48MDX03 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 1113649 Bracket, Light 1113650 Lens 1112613 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control Panel (3) 842534 Clip, Air Duct (4) 1112260 Support,... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSS48MDX03 4394439... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSS48MDX03 Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct 2003299 Inlay, Control Meat Pan...
- Page 7 REFRIGERATOR CONTROL PANEL PARTS For Model: KSSS48MDX03 Illus. Part DESCRIPTION 1112642 Control Panel 2003303 Inlay, Control Panel 2000789 Circuit Board 2182110 Control Knob 837444 Retainer, Knob 1118894 Switch, Rocker Arm 1113137 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113775 Shield, Control Panel 1112613 Socket, Light (2)
- Page 8 FREEZER CONTROL PANEL PARTS For Model: KSSS48MDX03 Illus. Part DESCRIPTION 1113627 Control Panel 2003309 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113136 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113769 Shield, Control Panel 1112613 Socket, Light...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSS48MDX03 4394439... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSS48MDX03 Illus. Part DESCRIPTION 2174404 Frame, Shelf 2003377 Glass, Shelf 1112006 Reflector, Shelf 1113792 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2003327 Frame, Assembly Meat Pan 2164373 Egg Carrier 1112247 Cover, Crisper 2003380 Glass, Crisper (Includes #9) 2000742 Meat Pan, Connector...
-
Page 11: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSS48MDX03 Illus. Part DESCRIPTION 2003144 Solid Shelf 2003135 Front, Ice Compartment 1113638 Shelf, Fixed (2) 1112052 Shelf, Fixed−Deep 2004592 Basket (2) 2002727 Ice Container 2003045 Front Cover Slide, Container 2002720 Right Side 2002721 Left Side 2003046 Hole Plug, Front 2003047 Hole Plug, Rear 2003114 Trim, Basket... - Page 12 TOP GRILLE AND UNIT COVER PARTS For Model: KSSS48MDX03 Illus. Part DESCRIPTION 2003715 Top Grille Assembly 2003267 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw 2003724 Decortive Panel Assembly 2003480 Guard, Compressor Wiring 2003483 Guard, Water Valve Wiring 4394439...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSS48MDX03 4394439... - Page 14 REFRIGERATOR DOOR PARTS For Model: KSSS48MDX03 Illus. Part DESCRIPTION 2003872 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2001983 Hinge Assembly, 1113955 Gasket 489282 Screw 2003986 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112542 Gasket Retainer, Top & Bottom 2001049 Door Gasket, Magnetic 2003679 Handle, Door...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSS48MDX03 4394439... - Page 16 FREEZER DOOR PARTS For Model: KSSS48MDX03 Illus. Part DESCRIPTION 2003878 Freezer Door Panel (Includes Insulation) 2003985 Hinge, Bottom 489282 Screw 2001984 Hinge, Top 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top & Bottom 2000878 Door Gasket, Magnetic 486194 Screw (36) 2003681 Handle, Door 2001230 Washer 2003982 Door, Spacer...
- Page 17 UPPER UNIT PARTS For Model: KSSS48MDX03 4394439...
- Page 18 UPPER UNIT PARTS For Model: KSSS48MDX03 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 851095 Wire Tie (2) 2003398 Assembly, Unit 2164492 Drier Base Following Parts Not Illustrated 2169135 Motor, Fan 2163787 Clip, Compressor and Optional Parts Not Included 1108179 Blade, Fan Mounting (4) 2003169 Orifice, Fan...
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSS48MDX03 4394439...
- Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSS48MDX03 Illus. Part DESCRIPTION 2000528 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve 2003015 Tube, Connect (Drier) 2002994 Heater, Drain Pan 1113062 Hanger, Heater 1113105 Bracket, Heater 487534 Screw 2002995 Tube, Discharge...
- Page 21 AIR FLOW AND RESERVOIR PARTS For Model: KSSS48MDX03 4394439...
- Page 22 AIR FLOW AND RESERVOIR PARTS For Model: KSSS48MDX03 Illus. Part DESCRIPTION 2003200 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2000618 Motor, Wiring 488500 Screw, Ground 488366 Clamp, Tube 489348 Clamp, Nylon 2001145 Channel, Wiring 1112871 Fastner 2000783 Scroll, Fan...
-
Page 23: Icemaker Parts
ICEMAKER PARTS For Model: KSSS48MDX03 4394439... - Page 24 ICEMAKER PARTS For Model: KSSS48MDX03 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 487857 Nut 489322 Screw 2154472 Connector 2174155 Cover 489276 Screw 841707 Insert, Tube 628228 Mold & Heater 2171593 Shut Off Arm 628379 Clip, Fuse (Also Order 2171952 Bracket 2003814 Water Inlet 542638 Silicone...
