For all models except KECC051 series:
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge copper wire.
Electrically ground cooktop.
Failure to follow these instructions can result in death,
fire, or electrical shock.
For model KECC051 series only:
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use 12 gauge copper wire.
Electrically ground cooktop.
Failure to follow these instructions can result in death,
fire, or electrical shock.
This cooktop is manufactured with a frame connected, green or
bare ground wire. Connect the cooktop cable to the junction box
through the UL listed or CSA approved conduit connector.
Electrical Connection Options
For cooktops with a 4-wire cable:
If your home has:
And you will be
connecting to:
4-wire direct
A fused
disconnect or
circuit breaker
box
5"
(12.7 cm)
3-wire direct
A fused
disconnect or
circuit breaker
box
3 "
(8.9 cm)
6

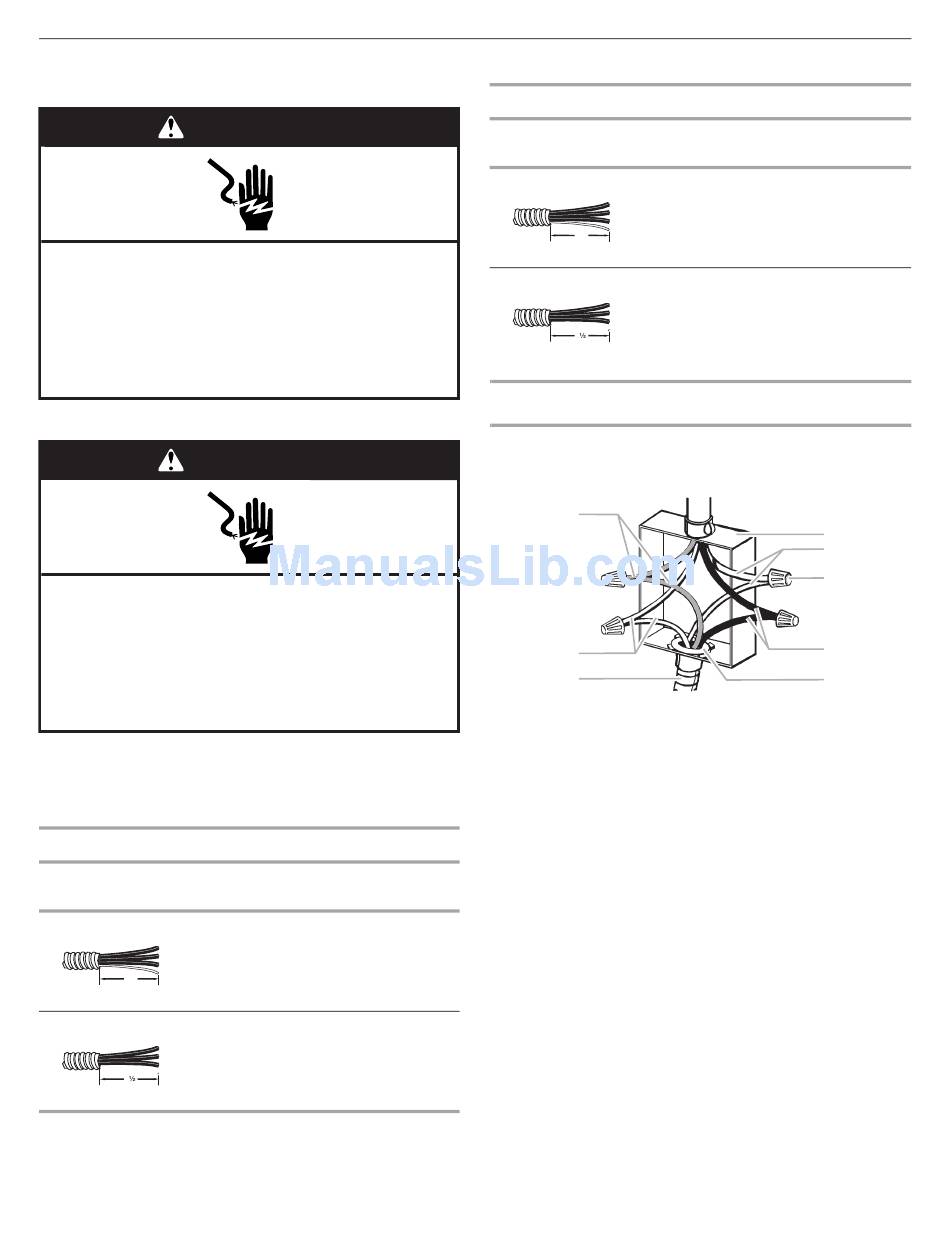

Make Electrical Connection

For cooktops with a 3-wire cable
If your home has:
4-wire direct
3-wire direct
4-Wire Cable from Power Supply to 4-Wire Cable from
Cooktop
IMPORTANT: Use the 4-wire cable from power supply where local
codes do not permit connecting the frame-ground conductor to
the neutral (white) junction box wire.
A. Red wires
B. Bare or green wires
C. 4-Wire cable from cooktop
D. Junction box
1. Disconnect power.
2. Remove junction box cover if present.
3. Connect the flexible cable conduit from the cooktop to the
Go to Section:
4. Tighten screws on conduit connector, if present.
5. Connect the two black wires together using the UL listed wire
4-Wire Cable from
Power Supply to
6. Connect the two red wires together using the UL listed wire
4-Wire Cable from
Cooktop
7. Connect the two white wires together using the UL listed wire
8. Connect the green or bare ground wire from the cooktop
3-Wire Cable from
Power Supply to
4-Wire Cable from
9. Install junction box cover.
Cooktop
10. Reconnect power.
And you will be
connecting to:
A fused
disconnect or
circuit breaker
box
5"
(12.7 cm)
A fused
disconnect or
circuit breaker
box
3 "
(8.9 cm)
A
B
C
junction box using a UL listed or CSA approved conduit
connector.
nuts.
nuts.
nuts.
cable to the green or bare ground wire (in the junction box)
using the UL listed wire nuts.
Go to Section:
4-Wire Cable from
Power Supply to
3-Wire Cable from
Cooktop
3-Wire Cable from
Power Supply to
3-Wire Cable from
Cooktop
D
E
F
G
H
E. White wires
F. UL listed wire nut
G. Black wires
H. UL listed or CSA approved
conduit connector
