Estate TS22AFXK Dimension Manual

Side by Side Refrigerator
PRODUCT MODEL NUMBERS
TS22AFXK
TS25AFXK
TS25AGXR
Electrical: A 115 Volt, 60 Hz., AC only 15 or 20
amp fused, grounded electrical supply is required.
It is recommended that a separate circuit serving
only your refrigerator be provided. Use an outlet
that cannot be turned off by a switch. Do not use
an extension cord.
Water: A cold water line with water pressure
between 30 and 120 psi is required for the water
dispenser and ice maker.
If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to
be a minimum of 40 to 60 psi (276-414 kPa).
LOCATION REQUIREMENTS
1 / " (1.25 cm)
2
2" (5.08 cm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

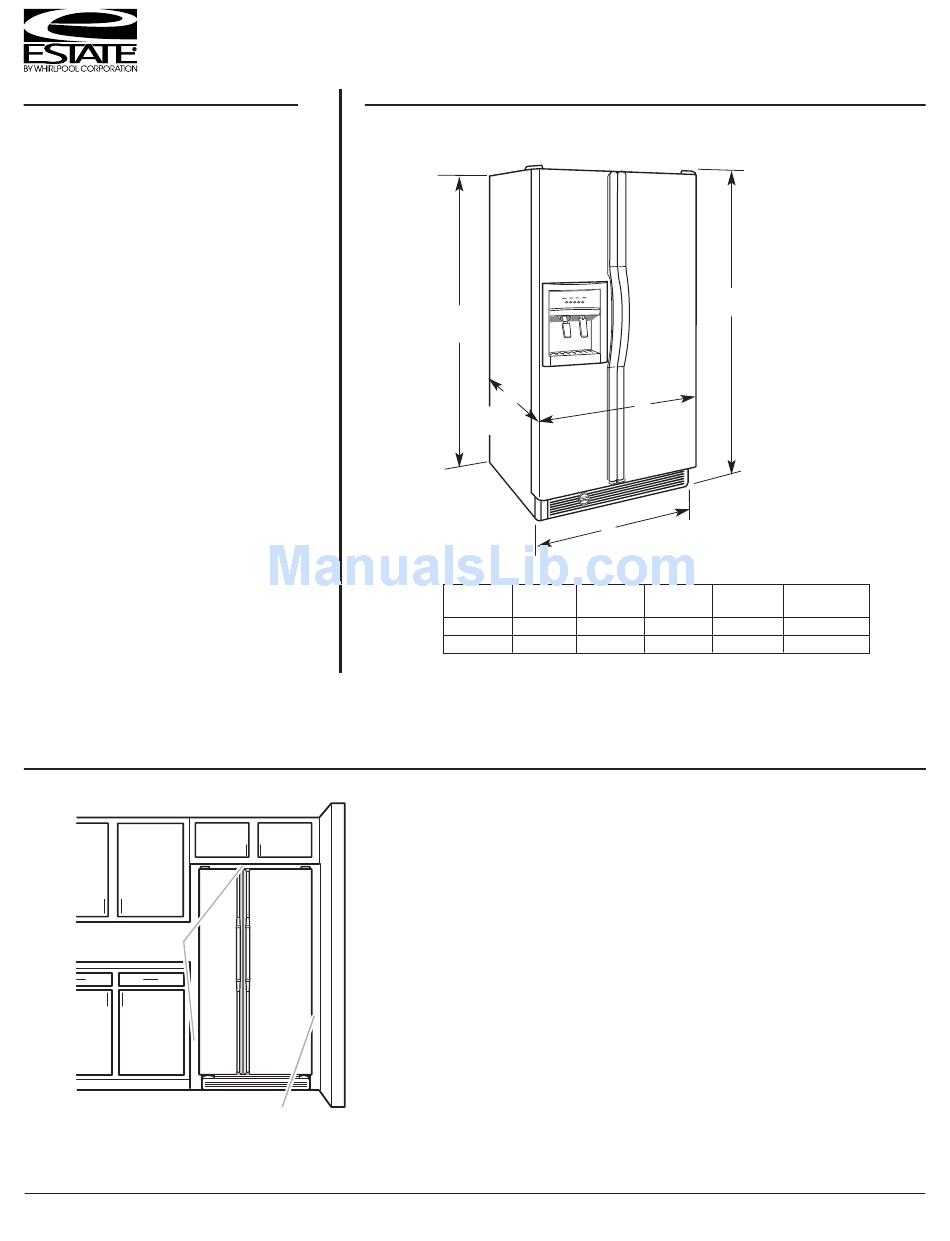

OVERALL DIMENSIONS
D
top of
cabinet
A
not incl.
handle
Depth
Model size "A"
22 cu.ft. 31 3/8"
25 cu.ft. 31 3/8"
To ensure proper ventilation for your refrigerator, allow for 1⁄2 in. (1.25 cm) space
on each side and at the top. (At the top, when using half depth cabinet, use top of
cabinet height "D" dimension. When using full depth cabinet, use overall "E"
dimension.) When installing your refrigerator next to a fixed wall, leave 2 in.
(5.08 cm) minimum on each side (depending on your model) to allow for the door
to swing open. If your refrigerator has a water dispenser and ice maker, allow extra
space at the back for the water line connections.
NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor
in a location where the temperature will fall below 55°F (13°C).
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
1
E
overall
Handle and door style
will vary with model.
C
Dimensions "D" and "E"
include rollers extended 3/4".
B
Cab. Width Door Width Cab. Height Overall Height
"B" "C" "D"
32 3/4" 33 1/8" 65 7/8"
35 1/2" 35 7/8" 68 7/8"
"E"
66 3/4"
69 3/4"
Ref. 2315506
09-20-05
