Hard Disk Drive (HDD)
Data Protection Kit

Installation Instructions

59399801

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C830dn and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oki C830dn

Summary of Contents for Oki C830dn

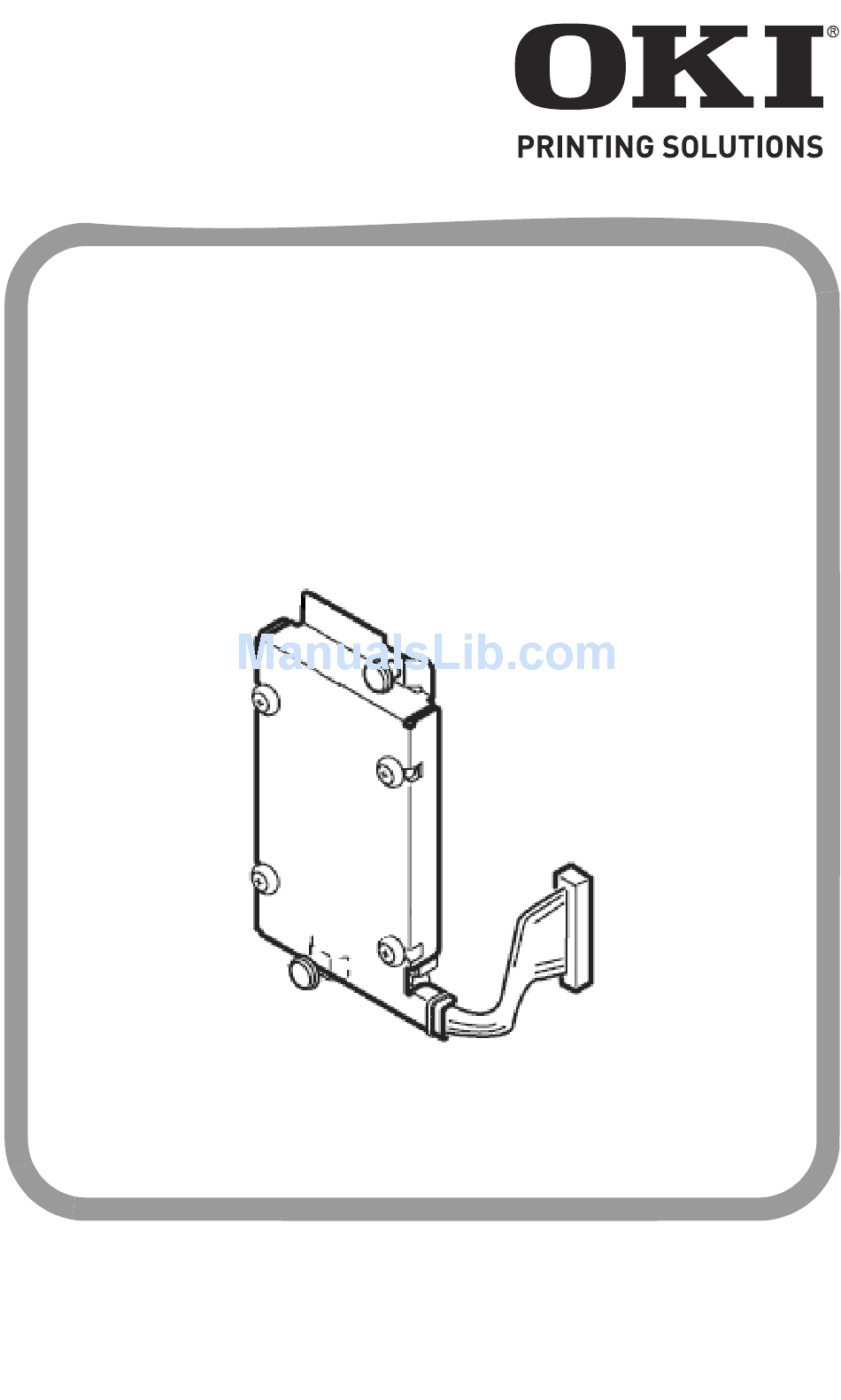

  • Page 1: Installation Instructions

    Hard Disk Drive (HDD) Data Protection Kit Installation Instructions 59399801...
  • Page 2 © 2009 by Oki Data Americas, Inc. All rights reserved. Disclaimer Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. The manufacturer assumes no responsibility for the results of errors beyond its control. The manufacturer also cannot...
  • Page 3 If the HDD becomes damaged • Both the HDD and the printer control board must be replaced. The printer control board can only be used with the Data Protection Kit HDD installed. Note: For printer control board replacement, contact your Oki Data dealer.

  • Page 4: Installation

    Installation 1. Turn off the printer and detach the power cord from the back of the printer. 2. Detach the interface cable.
  • Page 5 3. Open the top cover.
  • Page 6 Warning! If the printer has been powered on recently, the fuser will be hot. This area is clearly labeled. 4. If it is not already open, lower the MP Tray. 5. Lift the inside cover release and open the cover.
  • Page 7 6. Loosen the thumbscrew (1) holding the side panel in place. Lift the left edge of the side cover slightly and pull the cover away from the printer at the top. Lift the cover slightly to remove it from the printer. Place it safely to one side.
  • Page 8 7. Slide the access door in the metal plate to the right and open it. 8. Remove the HDD from its shipping package. Caution! Observe antistatic precautions when installing the hard disk drive.
  • Page 9 9. Plug the connecting cable (1) firmly into the connector (2) on the printer, then tighten the two thumbscrews (3) to fasten the HDD in place.
  • Page 10 10. Swing the access cover closed and slide it to the left to secure it in the metal plate.
  • Page 11 11. Align the tabs at either end of the inside bottom of the side panel with the slots in the side of the printer. then swing the side panel toward the printer. Be sure to feed the silver ribbon (1) on the printer cover into the slot (2) on the side panel before pushing the panel back onto the printer.
  • Page 12 12. Secure the side panel in place with the thumbscrew. 13. Close the inside front cover.
  • Page 13 14. If you are not using it, close the MP Tray. 15. Close the top cover. 16. Reattach the interface cable.
  • Page 14 17. Plug the power cord into the back and turn on the printer.

  • Page 15: Verify The Installation

    Verify the Installation Print the Configuration Report NTER ANCEL 1. Press the Enter button. 2. Press the Menu up button (▲) then the Enter button to select the Print Information menu. 3. Select Configuration with the Enter button. 4. Press the Enter button once more to execute the Configuration report.

  • Page 16: Postscript Emulation Driver

    Activate the HDD in the Driver ® Windows Postscript Emulation Driver 1. First Windows Vista Click Start → Settings → [Hardware and Sound] Printer. Windows XP, Server 2003 Click Start → Settings → Printers and Faxes. Windows 2000 Click Start → Settings → Printers. 2.

  • Page 17: Pcl Driver

    PCL Driver 1. First Windows Vista Click Start → Settings → [Hardware and Sound] Printer. Windows XP, Server 2003 Click Start → Settings → Printers and Faxes. Windows 2000 Click Start → Settings → Printers. 2. Right click the PCL printer icon. Click [Properties].
  • Page 18 ® Macintosh Mac OS 10.5 (Leopard) 1. Open the Mac OS X [Print & Fax Preferences]. 2. Make sure your model is selected. 3. Select [Options & Supplies]. 4. Select [Driver]. 5. Select the hard disk drive (HDD) and click [OK].
  • Page 19 Mac OS 10.3 (Panther) 1. Open the Mac OS X [Print & Fax Preferences]. 2. Select [Printing…]. 3. Select [Set Up Printers…]. 4. Make sure your model is selected, then select [Show Info…]. 5. Select the menu and choose [Installable Options…] 6.
  • Page 20 © 2009 Oki Data Americas, Inc.
