Model A6534A hp surestore director fc-64

Installation Guide

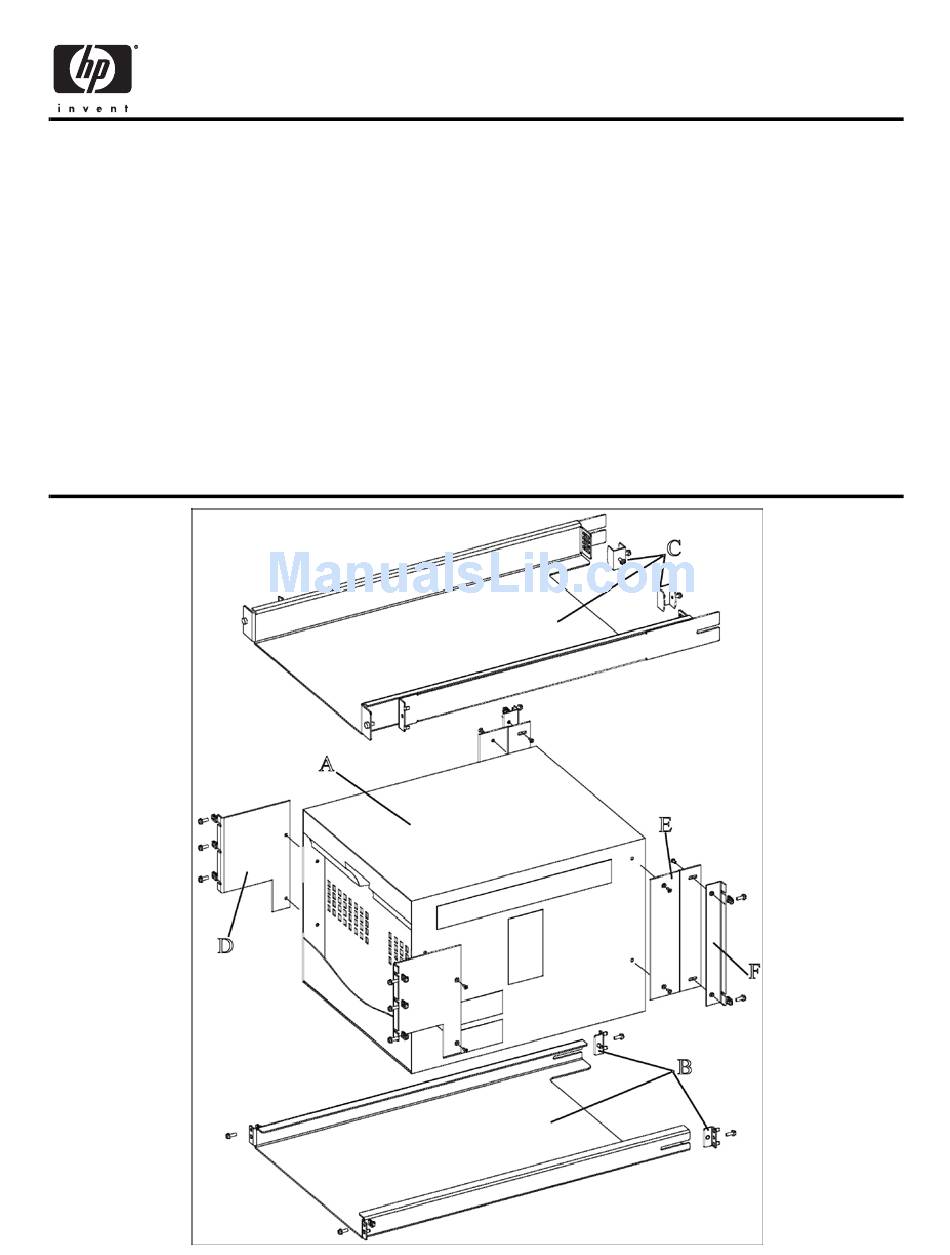

Contents
(A) hp surestore director fc-64 (PN A6534-62001)
(B) Rail Tray Kit (PN A6534-60016):
•
Rail tray (1)
•
Mounting brackets (2)
•
M5 Tinnerman nuts (2)
•
Torx T25 16mm M5 SEM screws (4)
(C) Sliding Shelf - only available with the Management
Station (PN J1526-60001):
•
Shelf with attached rails (1)
•
Mounting brackets (2)
•
Torx T25 16mm M5 SEM screws (4)
(D, E, & F) Mounting Hardware:
•
Rack mount brackets (PN A6534-60014) containing front
mounting brackets (2), rear mounting brackets (2), and
angle brackets (2)
•
Switch rack hardware (PN A6534-62002) containing Torx
T25 16mm M5 SEM screws (22, includes extras), sheet
metal nuts (18), and 10-32 flat-head Phillips screws (8,
includes extras)
Tools Needed:
•
Phillips head screwdriver, no.2
•
Torx head driver T25
General Information: The 15Us used to mount the switch
are called U1 through U15; U1 is the lowest of the 15Us.
Notice
The information contained in this document is subject to change without
notice.
Hewlett-Packard makes no warranty of any kind with regard to this
material, including, but not limit to, the implied warranties of
merchantability and fitness for a particular purpose. Hewlett-Packard shall
not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing performance, or use of this
material.
This document contains proprietary information that is protected by
copyright. All rights are reserved. No part of this document may be
photocopied, reproduced, or translated to another language without the
prior written consent of Hewlett-Packard Company.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Surestore 64 - Director Switch and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HP Surestore 64 - Director Switch

Summary of Contents for HP Surestore 64 - Director Switch

  • Page 1: Installation Guide

    The information contained in this document is subject to change without notice. • Mounting brackets (2) Hewlett-Packard makes no warranty of any kind with regard to this • Torx T25 16mm M5 SEM screws (4) material, including, but not limit to, the implied warranties of merchantability and fitness for a particular purpose.
  • Page 2 Step 1: Mount the anti-tip feet (HP Rosebowl II rack only) Place the anti-tip feet (A) on the front and back of the rack base. Use the supplied hardware to bolt the feet to the base of the rack. Be sure to lower the rack feet (B) until they touch the floor.
  • Page 3 Step 3: Position and attach the rear brackets Locate the lowest U of the 15 you chose for mounting the switch (the lowest being U1). Attach the rear rail- tray brackets to the rear rack uprights at U1. Use one M5 Torx screw for each bracket.
  • Page 4 Step 5: Insert the rail tray in the rack Position the rail tray as shown in the following figure and insert it into the rack from the front. The slots in the sides of the rail tray must slide over the posts on the rear rail-tray brackets, and the posts on the rail tray’s front mounting flanges must be inserted in the center holes of U1.
  • Page 5 Step 8: Prepare the back rack columns Standing at the back of the rack, count up from the the top of the rail tray (A) to 12th and 28th on the rack’s back face. Slide a sheet metal nut (B) on each of the located holes.
  • Page 6 Step 10: Position the switch on the rails Using a lifting jack, position the switch. Slide the switch back on the rails until the front mounting brackets are against the front rack columns. The use of the Genie Load Lifter is recommended. Step 11: Mount the switch in the rack On one side of the back of the switch, position an angle bracket (A) so that its threaded holes (B) are...
  • Page 7 Step 12: Install the sliding shelf brackets (Management Station only) Select a U slot above the switch. On each back column of the rack, locate the hole (A) that is 2 holes up from the EIA number of the selected U slot (B). Line up this hole with the threaded hole on the bracket's side.

  • Page 8: Recommended Cable Management

    Step 12: Install the sliding shelf brackets (Management Station only) - continued Make sure that the shelf and rails are horizontal. Push the rails' front tabs (A) into the corresponding holes on the rack columns (B). At the back of the rack, tighten the screws that attach the shelf rails to the mounting brackets.
  • Page 10 Copyright 2002 Printed in USA 01/02 A6534-96010 *A6534-960010*...
