Frigidaire FPDF4085KF - 40" Dual Fuel Range Product Specifications page 3

Professional
Freestanding Range Specifications
• Product Shipping Weight (approx.) – 265 Lbs.
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt,
•
60 Hertz, fused on both sides of line with ground. (If local code
permits, range may be connected by hard-wiring or by means
of power supply cord kit.)
• Connected Load (kW Rating) @ 240 / 208 Volts = 4.5 / 3.4 kW
Amps @ 240 / 208 Volts = 19.0 / 16.0 Amps
•
• Recommended Circuit Breaker – 30 Amps
Always consult local and national electric and gas codes.
•
• Make sure wall coverings around range can withstand heat generated
by range.
• Linoleum or any other synthetic floor covering located beneath range,
must be capable of withstanding minimum heat of 90° F above room
temperature without shrinking, warping or discoloring. Insulating pad
or 1/4"-thick plywood required between range and a carpeted floor.
• Do not obstruct flow of combustion air at oven vent nor around base
or beneath lower front panel of range. Range requires fresh air for
proper burner combustion.
• Range ships with 1/2" NPT factory regulator.
• LP Gas conversion kit supplied.
• Gas supply piping can be routed through side wall of right cabinet.
Right side cabinet is ideal location for main shutoff valve.
• Overhead cabinetry should not exceed a 13" maximum depth.
USA 10200 David Taylor Drive
• •
CANADA 5855 Terry Fox Way Mississauga, ON L5V 3E4
• •
FPDF4085K 10/10
Charlotte, NC 28262 1-800-FRIGIDAIRE
•
1-800-265-8352
•
© 2010 Electrolux Home Products, Inc.

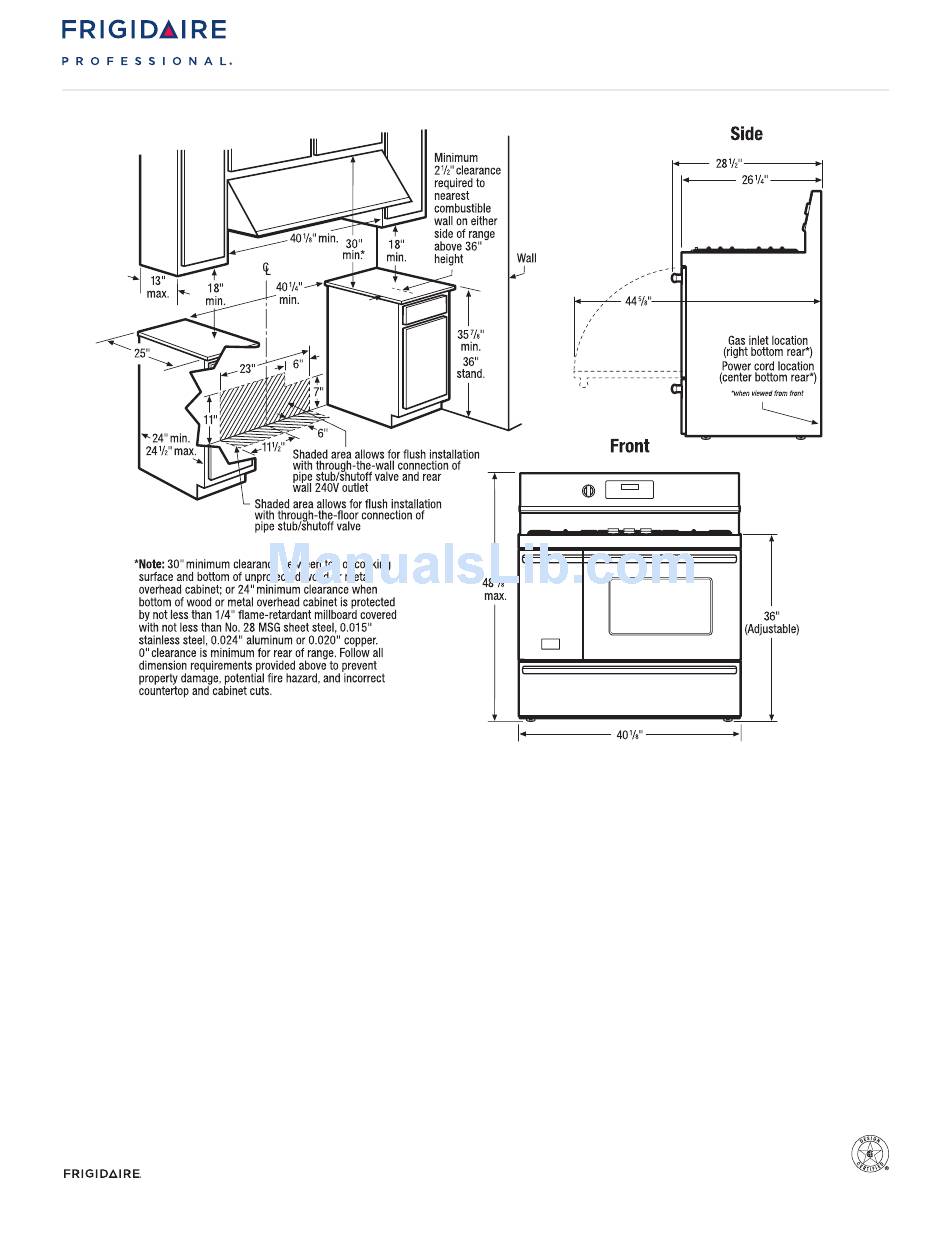

• Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
• Allow 24" minimum clearance between rangetop and bottom of
cabinet when bottom of wood or metal cabinet is protected by
not less than 1/4" flame-retardant millboard covered with not less
than No. 28 MGS sheet steel, 0.015" stainless steel, 0.024" aluminum
or 0.020" copper. Allow 30" minimum clearance when cabinet is
unprotected.
• To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
Minimum 2-1/2" clearance required from edge of rangetop to nearest
•
combustible wall on either side of range above 36" height.
• Range can be installed flush to wall with 0" minimum rear clearance.
• For installation against left side wall that extends to or beyond
range's side panel, allow 2-3/4" minimum clearance to allow
auxiliary oven door to open.
• Follow all dimension requirements provided to prevent property
damage, potential fire hazard, and incorrect countertop and
cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
frigidaire.com
•
frigidaire.ca
•
Freestanding Range
FPDF4085K F 40" Dual Fuel
Specifications
subject to change.
