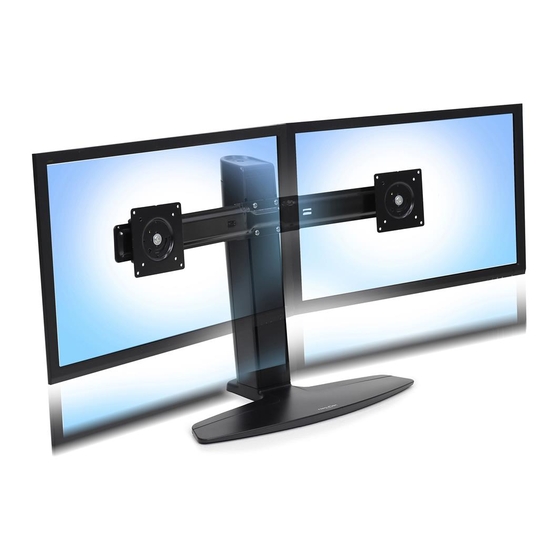

Ergotron Neo-Flex Assembly Instructions Manual

Combo workbase
Hide thumbs Also See for Neo-Flex:

Advertisement

Quick Links

Download this manual See also: User Manual, Assembly and Instruction Manual
A
1x
1
2
1x
4mm
3
4
4x
5
888-33-292-W-00 rev. B • 12/08
B
1x
1x
4x
M4 x 10mm
1x
Neo-Flex™ Combo WorkBase
1x
4x
4x
1x
M6 x 10mm
1x
1x
M4 x 10mm
4x
10mm
ASSEMBLY INSTRUCTIONS
INSTRUCCIONES DE INSTALACIÓN
NOTICE D'ASSEMBLAGE
MONTAGEANLEITUNGEN
INSTALLATIE INSTRUCTIES
MANUALI D'ISTRUZIONE
6-16 lbs
(2.7-7.3 kg)
6-12 lbs
(2.7-5.4 kg)
C
1x
M6 x 7mm
2x
D
FRONT
Frontal
Avant
Vorderseite
Voorzijde
M4 x 5mm
M4 x 25mm
1 of 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the Neo-Flex and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ergotron Neo-Flex

Summary of Contents for Ergotron Neo-Flex

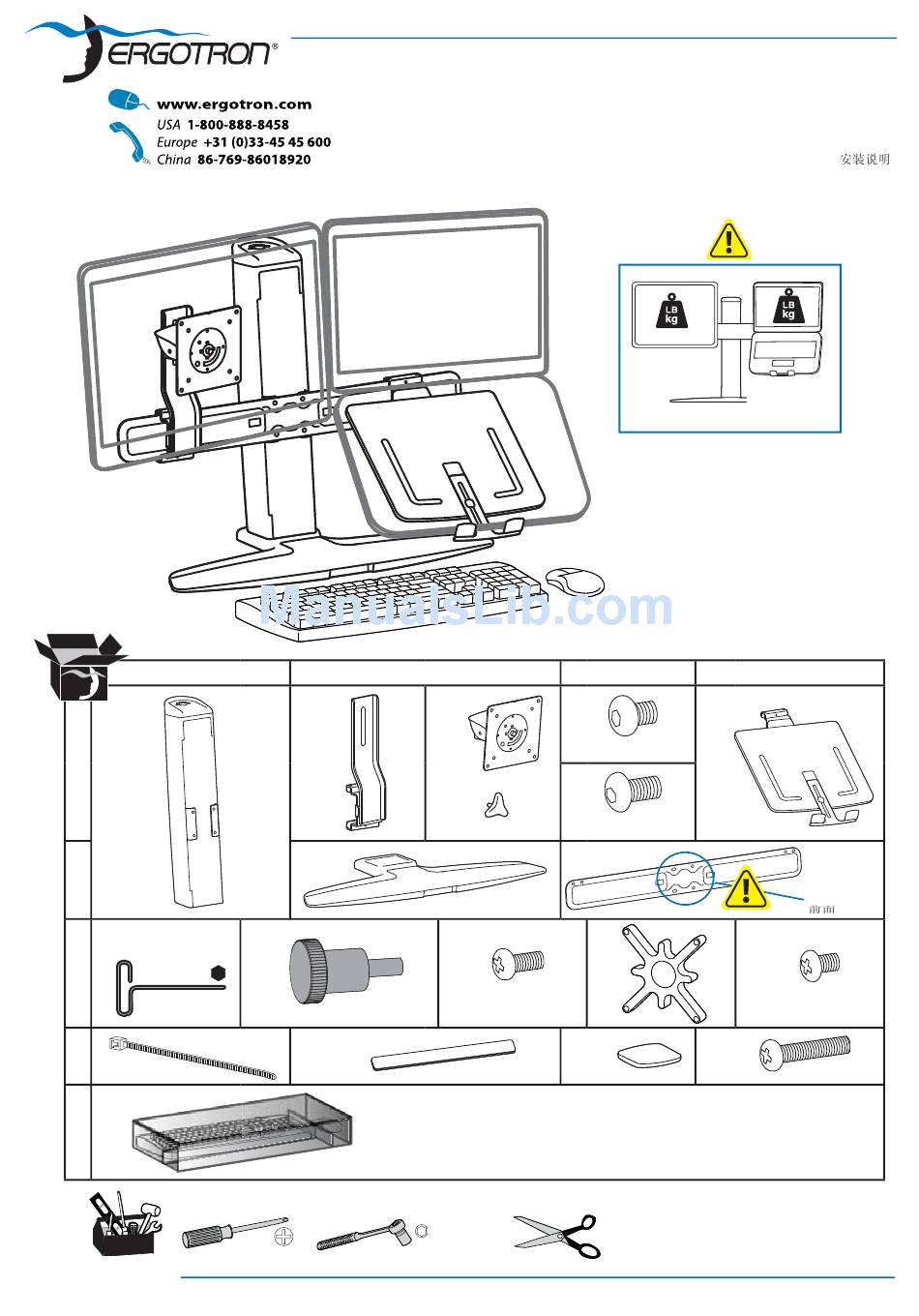

  • Page 1 Neo-Flex™ Combo WorkBase ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE INSTALACIÓN NOTICE D’ASSEMBLAGE MONTAGEANLEITUNGEN INSTALLATIE INSTRUCTIES MANUALI D’ISTRUZIONE 6-16 lbs (2.7-7.3 kg) 6-12 lbs (2.7-5.4 kg) M6 x 7mm M6 x 10mm FRONT Frontal Avant Vorderseite Voorzijde M4 x 10mm M4 x 5mm...
