Summary of Contents for Equator PAC 10

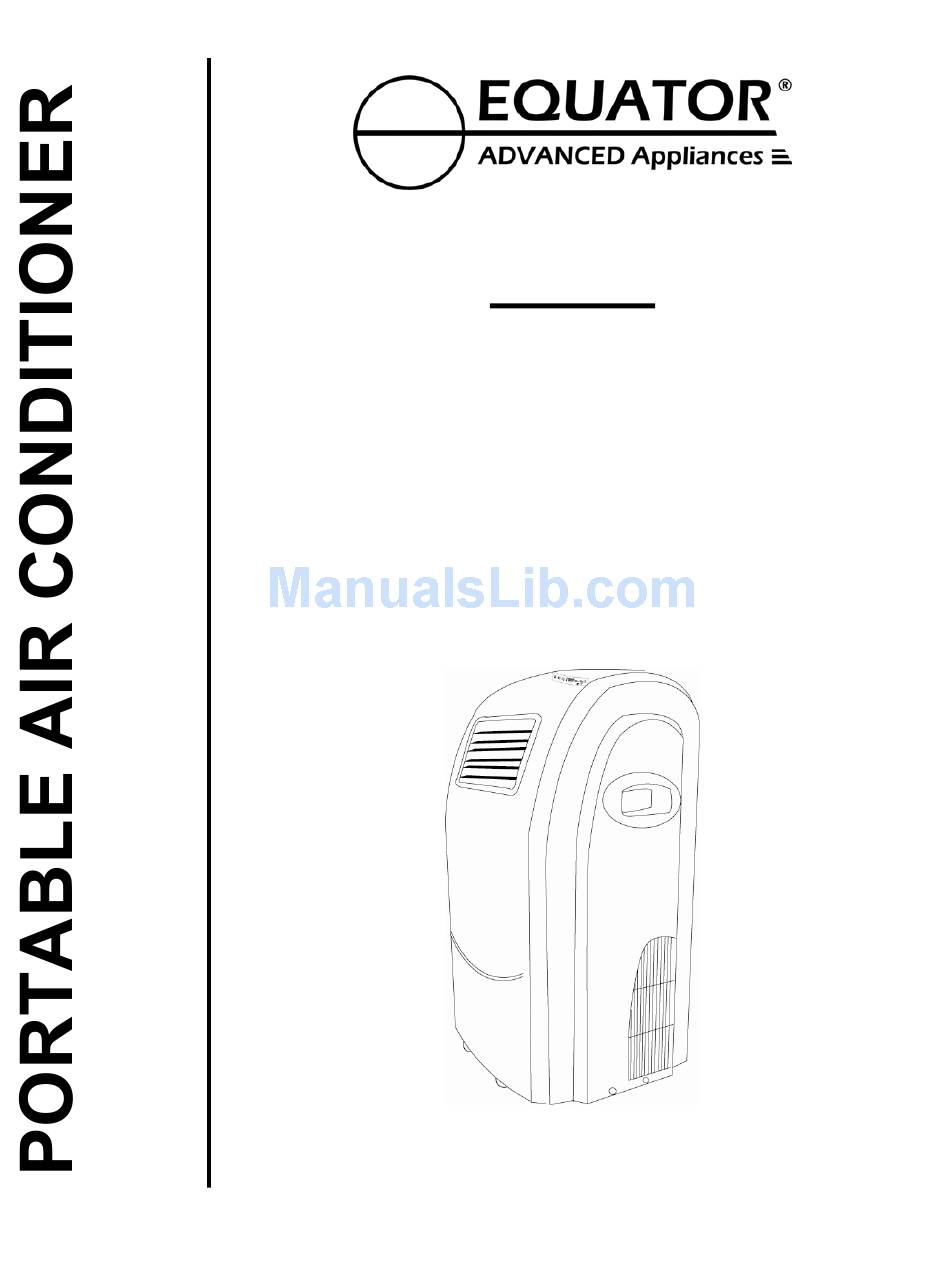

- Page 1 Models PAC 8 PAC 10 PAC 12 Owner’s Manual Color: White...
-
Page 2: Table Of Contents
Using the Control Panel……………………………………………………..…….12 Using the Remote Control…………………………………………………………13 Water Drainage ……………………………………………………………………14 Maintenance & Service ………………………………………………………..15-16 Safety ……………………………………………………………………………….17 Troubleshooting .………………………………………………….……………… 18 Company Information .…………………………………………………………… 19 Please read the Owner’s Manual carefully before using your new Equator Portable Air Conditioner Portable Air Conditioner Owner’s Manual... -
Page 3: Warranty
For commercial use, the product is warranteed for a period of 90 days. During this period, Equator Corporation will provide all labor and parts necessary to correct such defect, free of charge, if the appliance has been installed and operated in accordance with Equator Corporation’s written instructions with the appliance. -
Page 4: Warranty & Service
Remember to send in your Warranty Registration Card so that a proof of your purchase exists with Equator. You can also register online at www.equatoronline.com. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State. -
Page 5: Introduction
This instruction manual is used for guidance and does not form part of a contract. We reserve the right to make technical changes without prior notice. Here are some of the best reasons for buying your Equator Portable Air Conditioner 1. -
Page 6: Important Safety Instructions
This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death. This symbol refers to a hazard or unsafe practice which can result in severe personal injury or product or property damage. SAVE THESE INSTRUCTIONS Portable Air Conditioner Owner’s Manual... -
Page 7: Portable Air Conditioner Views
Portable Air Conditioner Owner’s Manual... -
Page 8: Installation
Selection of installation location Put the Portable air conditioner in a fiat location where the air outlets cannot be covered up. Place the unit at least 20” away from a wall or other obstacles. Procedure for Mounting the Air Exhaust Duct... - Page 9 INSTALLATION Correct mounting shown below (if mounting in the wall, the height of the hole should be 16” – 51”) If the air exhaust requires bending, see below. Portable Air Conditioner Owner’s Manual...
- Page 10 However, it may be necessary for you to improvise/modify some aspects of the installation procedures for certain types of windows. Please refer to Fig. 24 & Fig. 24a for minimum and maximum window openings. Fixing the water pipe (refer to figure below) Portable Air Conditioner Owner’s Manual...
- Page 11 Exterior Wind Suction Adapter: 1 pc (optional) Customer could select and assemble the Exterior Wind Suction Adapter - a tube that draws in fresh air from outdoors, which cools down the condenser. The installation is as following figure. Portable Air Conditioner Owner’s Manual...
-
Page 12: Control Panel
Portable Air Conditioner Owner’s Manual... -
Page 13: Using The Control Panel
• The AC socket must be firm and reliable. • Don’t connect the Portable air conditioner to a multiple socket outlet which is also being used for other electrical appliances. • Insert the AC power plug securely into the AC socket before using the unit. Two seconds after it beeps, press the ”ON/OFF“... -
Page 14: Using The Remote Control
Portable Air Conditioner Owner’s Manual... -
Page 15: Water Drainage
After the water level in the water tank is below I, the switch of water level will disconnect, and without the alarm, the indication of trouble code E5 will disappear. The main engine will resume standby. Portable Air Conditioner Owner’s Manual... -
Page 16: Maintenance & Service
1. Attach the filter to the filter cover with the attachment hooks on the inside surface of the cover. 2. Place the hooks at the bottom of the filter cover into the holes in the case, push it back into its original position. Portable Air Conditioner Owner’s Manual MAINTENANCE/SERVICE... -
Page 17: Storage Methods
2. Switch off the unit and disconnect the plug from the power supply. 3. Tie the cable with a string. 4. Wrap the machine with the plastic bag, and keep it in a cool, dry place. Portable Air Conditioner Owner’s Manual... -
Page 18: Safety
Do not spray with insecticide or other chemicals as the plastic case may be deformed. FEATURES OF HEATING OPERATION MODE • When the air conditioner heats the room air, the compressor does not work – only the PTC electric tube works. Portable Air Conditioner Owner’s Manual... -
Page 19: Troubleshooting
Check code FAULT E8 FAULT E3 FAULT E2 FAULT E4 FAULT E5 Portable Air Conditioner Owner’s Manual TROUBLESHOOTING Check Is there power? Is the unit plugged in? Did the fuse or circuit breaker break off? -
Page 20: Company Information
COMPANY INFORMATION EQUATOR CONTACT NUMBERS SERVICE: (800) 776-3538 PARTS, ACCESSORIES & DETERGENT ORDERING: (888) 483-9627 TECHNICAL SUPPORT: (888) 935-1565 Equator Corporation Equator Plaza, 2801 W Sam Houston Pkwy N, Houston, Texas 77043-1611 Phone (800) 935-1955 • Fax (713) 464-2151 All rights reserved.
