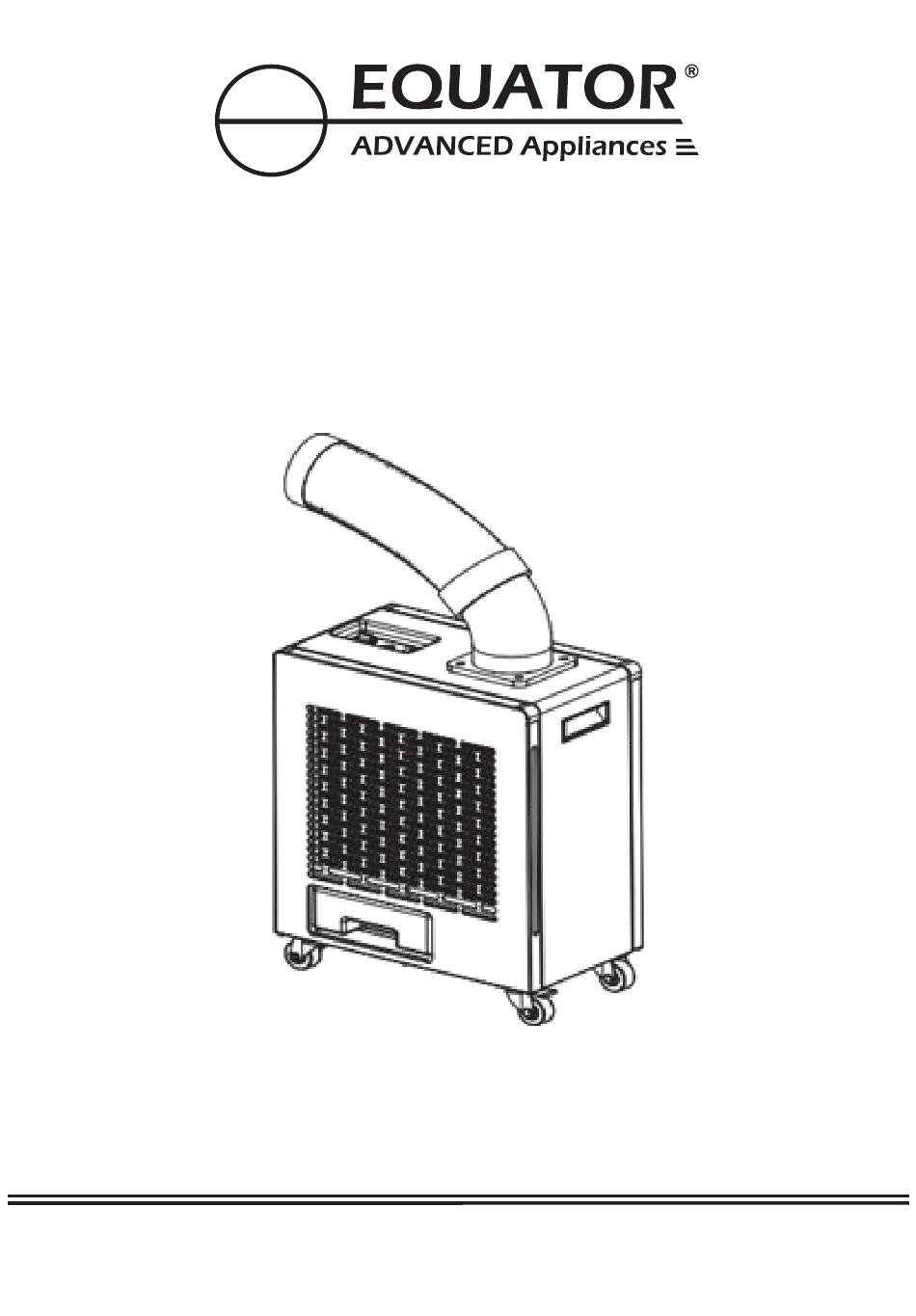

- Page 1 OUTDOOR AIR CONDITIONER Model - OAC 2000 OWNER’S MANUAL Read the instructions carefully and keep for future reference...
- Page 3 Exclusions In no event shall Equator Appliances be liable for incidental or consequential damages or for damages resulting from external causes such as abuse, misuse, incorrect voltage or acts of God.
- Page 4 Since it is a responsibility of the consumer-owner to establish the warranty period by verifying the original purchase date, Equator Appliances recommends that a receipt, delivery slip or some other appropriate payment record be kept for that purpose. This warranty gives you specific legal rights, and you may also...
- Page 5 Safety Keep the appliance away from volatile and flammable substances. Keep ventilation openings clear of obstructions. When positioning the appliance, ensure the electrical cord is not trapped or damaged. Do not place multiple portable socket-outlets at the rear of the appliance. Never unplug the appliance by pulling on the power cord.
- Page 6 Description The Outdoor Air Conditioner (OAC) is a portable appliance that can be used outdoors. The OAC pulls ambient air through the Air Intake Screen, circulates it through the compressor and blows out cool air through the Cooling Air Hose. The Cooling Air Hose is flexible, can be rotated 360 degrees and can be positioned to blow to a desired area.
- Page 7 Assembly The Outdoor Air Conditioner (OAC) is easy to use and requires only a few quick steps to assemble the parts. Most of the appliance is already assembled and only requires the Air Cooling Hose to be attached to the main unit. Cooling Hose Elbow Elbow Base...
-
Page 8: Operation
Operation Check the plug and cable before connecting the power and ensure it is 110 voltage. Fan Speed Knob Power Button Press the Power Button to turn the OAC on. Rotate the Fan Speed Knob from the 0 (Off) position to either low or high cool setting. -
Page 9: Maintenance
Remove the Water Tank, discard the water and then replace it again before turning the OAC on. Do not move the OAC when it is full of water. Drainage Hose Remove the Water Tank. Attach the Drainage Hose directly onto the outlet where it enters the Water Tank cavity. -
Page 10: Troubleshooting
Troubleshooting Problem Possible Cause and Solution Not Working Check the fuse. Check if it is plugged in correctly to the power source. Heat exchanger surface is blocked. Not Cooling Clean and remove blockage. Filter needs cleaning. Ambient temperature is very high (above 113 F). -
Page 11: Electrical Diagram
Technical Specifications for OAC 2000 Model OAC 2000 Capacity 2000W / 6800BTU Air Flow 135.4 cu.ft / min Voltage 110V 60Hz Current 6.4 Amps Power 700 W Refrigerant R410A Working Temperature 64.4 F - 113 F Weight Net / Gross 56.2 / 66 lbs...
