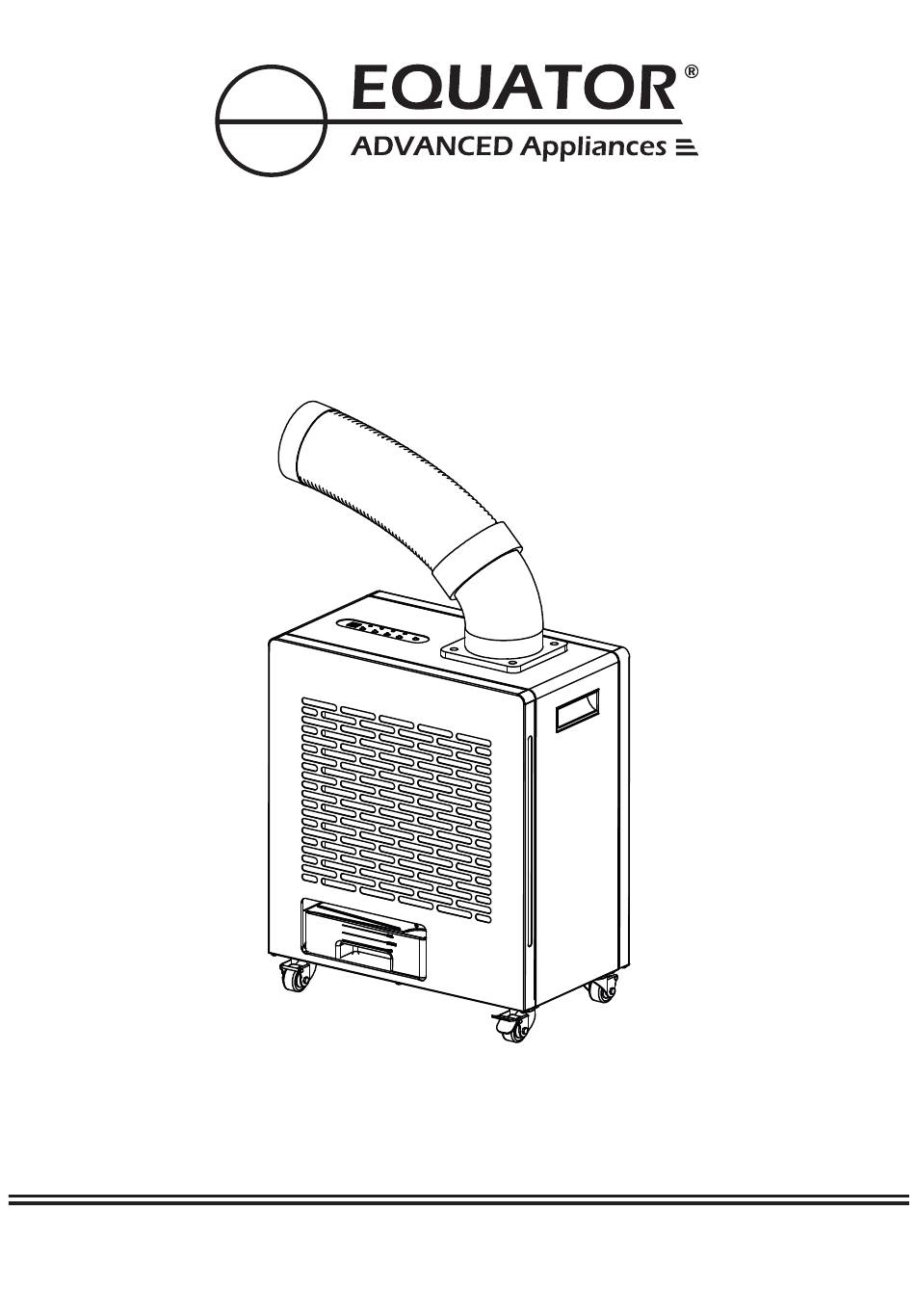

- Page 1 OUTDOOR AIR CONDITIONER Model - OAC 3000 OWNER’S MANUAL Please read the instructions carefully and keep for future reference. Information may be updated from time to time so please refer to the website for the latest version of the manual.
- Page 2 Services would be provided from Monday to Friday between normal business hours. Exclusions In no event shall Equator Appliances be liable for incidental or consequential damages or for damages resulting from external causes such as abuse, misuse, incorrect voltage or acts of God. This warranty does not cover service calls which do not involve defective workmanship or materials covered by this warranty.
- Page 3 Since it is a responsibility of the consumer-owner to establish the warranty period by verifying the original purchase date, Equator Appliances recommends that a receipt, delivery slip or some other appropriate payment record be kept for that purpose. This warranty gives you specific legal rights, and you may also...
- Page 4 Safety Keep the appliance away from volatile and flammable substances. Keep ventilation openings clear of obstructions. When positioning the appliance, ensure the electrical cord is not trapped or damaged. Do not place multiple portable socket-outlets at the rear of the appliance. Never unplug the appliance by pulling on the power cord.
- Page 5 Description The Outdoor Air Conditioner (OAC) is a portable appliance that can be used outdoors. The OAC pulls ambient air through the Air Intake Screen, circulates it through the compressor and blows out cool air through the Cooling Air Hose. The Cooling Air Hose is flexible, can be rotated 360 degrees and can be positioned to blow to a desired area.
- Page 6 Assembly The Outdoor Air Conditioner (OAC) is easy to use and requires only a few quick steps to assemble the parts. Most of the appliance is already assembled and only requires the Air Cooling Hose to be attached to the main unit. Cooling Hose Elbow Elbow Base...
- Page 7 Water Tank and Drainage Hose In the course of operating the OAC, condensate water is produced. The water can either be collected in the Water Tank or can be discharged directly outdoors through a Drainage Hose included with the unit. Water Tank The Water Tank is located at the bottom of the OAC.
-
Page 8: Operation
Operation Check the plug and cable before connecting the power and ensure it is 110 voltage. Indicator Lights Power Display Button Panel Press the Power Button to turn the OAC on. Press the COOL icon to exhaust cool air the screen will show "L"(Low).Press again to adjust speed. -
Page 9: Maintenance
Functions: 1. Power-o ffmemory function: The machine will remember the settings before a power failure. When power comes back on, OAC will automatically start and work based on the settings before the power failure. 2. 12 hours safety shutdown function: The machine will shut down automatically after continuously working for 12 hours, in order to prevent overheating. -
Page 10: Troubleshooting
Troubleshooting Problem Possible Cause and Solution Not Working Check the fuse. Check if it is plugged in correctly to the power source. Air Intake Screen surface is blocked. Not Cooling Clean and remove blockage. Filter needs cleaning. Ambient temperature is very high (above 113F/45C). -
Page 11: Electrical Diagram
Technical Specifications for OAC 3000 Model OAC 3000 Cooling / Heating Capacity 9000 BTU / 6200 BTU Air Volume 230 m³/h Voltage 110V / 60Hz Cooling / Heating Current 8.6 A / 13.6 A Cooling / Heating Power 950 W/1800 W... - Page 12 Efficient, Highest Quality and Innova ve household appliances. Equator’s mission is to provide Innova ve, Prac cal, Top-Quality appliances that Save Time, Space and Energy and Simplify domes c chores. Equator’s vision is to Improve the Quality of Life for our Customers! Equator Appliances USA www.EquatorAppliances.com...
