For Models: KGSS907SBL00,KGSS907SWH00, KGSS907SBT00, KGSS907SSS00
Illus.
Part
No.
No.
DESCRIPTION
1
9752980 Shield, Flame
2
4451583 Motor, Convection
3
4457277 Grill, Broiler
4
4457276 Pan, Broiler
5
9757779 Fitting, Broiler
6
4448717 Rack, Oven
7
4453625 Element, Broil
8
4453957 Pan Support, Bake
9
9760229 Electrode, Bake
10
9760228 Burner, Bake Log

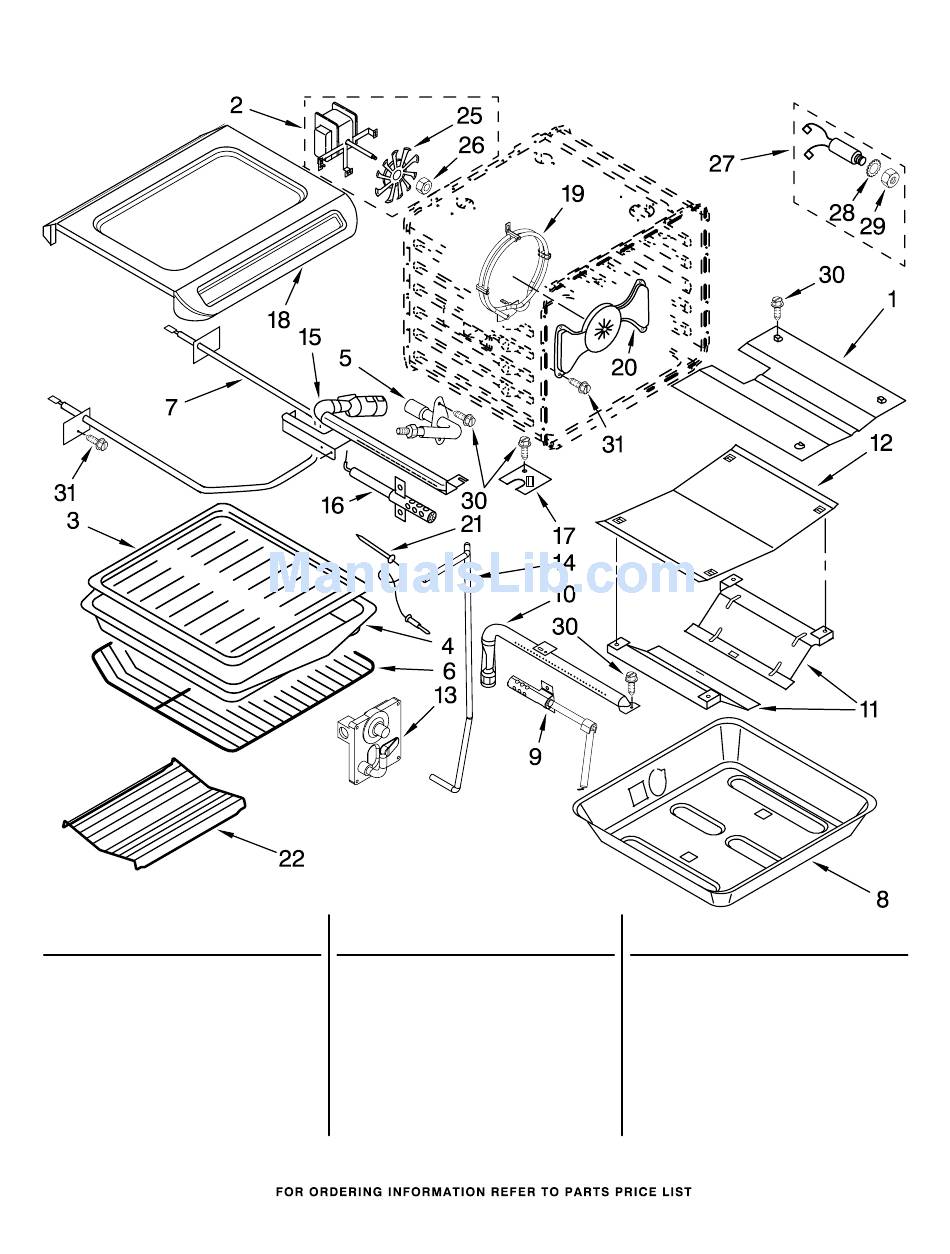

INTERNAL OVEN PARTS
(Black)
(White)
Illus.
Part
No.
No.
DESCRIPTION
11
9752737 Shield, Oven
12
4453984 Shield, Bake Flame
3196176 Screw
13
9763716 Valve, Assy
14
9756831 Tube, Broil
15
9757700 Burner, Broil
16
8054129 Ignitor, Broil
17
4454009 Cover, Ignitor
18
4453920 Pan, Oven Bottom
19
4453650 Element, Convect
(Biscuit)
Illus.
No.
20 W10104790 Cover, Fan
21
22
25
26
27
28
29
30
31
8
(S.Steel)
Part
No.
DESCRIPTION
9755542 Probe, Meat
3181534 Rack, Roasting
4452226 Blade, fan
4452227 Nut
4451355 Jack, Meat Probe
9755547 Lock Washer
9755546 Hex Nut
3196176 Screw
4449154 Screw
8186671
