KitchenAid KWCU320JSS0 Parts List

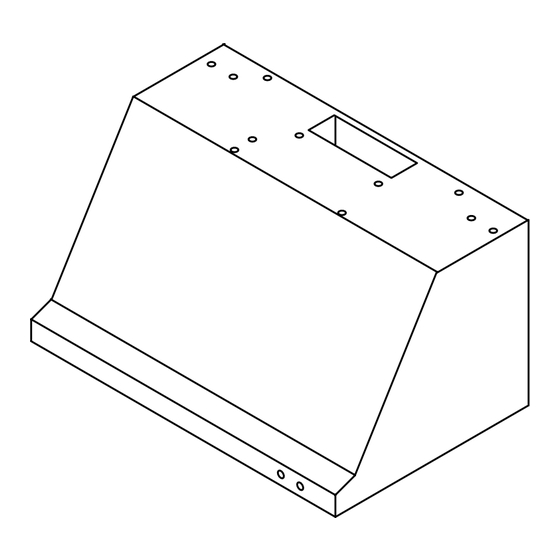

42" professional hood
Hide thumbs

Advertisement

Quick Links

HOOD PARTS
42" PROFESSIONAL HOOD
For Model: KWCU320JSS0
(Stainless)
1
6−03 Litho in U.S.A. (jac)
Part No. 8190480

Advertisement

loading

  Related Manuals for KitchenAid KWCU320JSS0

  Summary of Contents for KitchenAid KWCU320JSS0

  • Page 1 HOOD PARTS 42" PROFESSIONAL HOOD For Model: KWCU320JSS0 (Stainless) 6−03 Litho in U.S.A. (jac) Part No. 8190480...

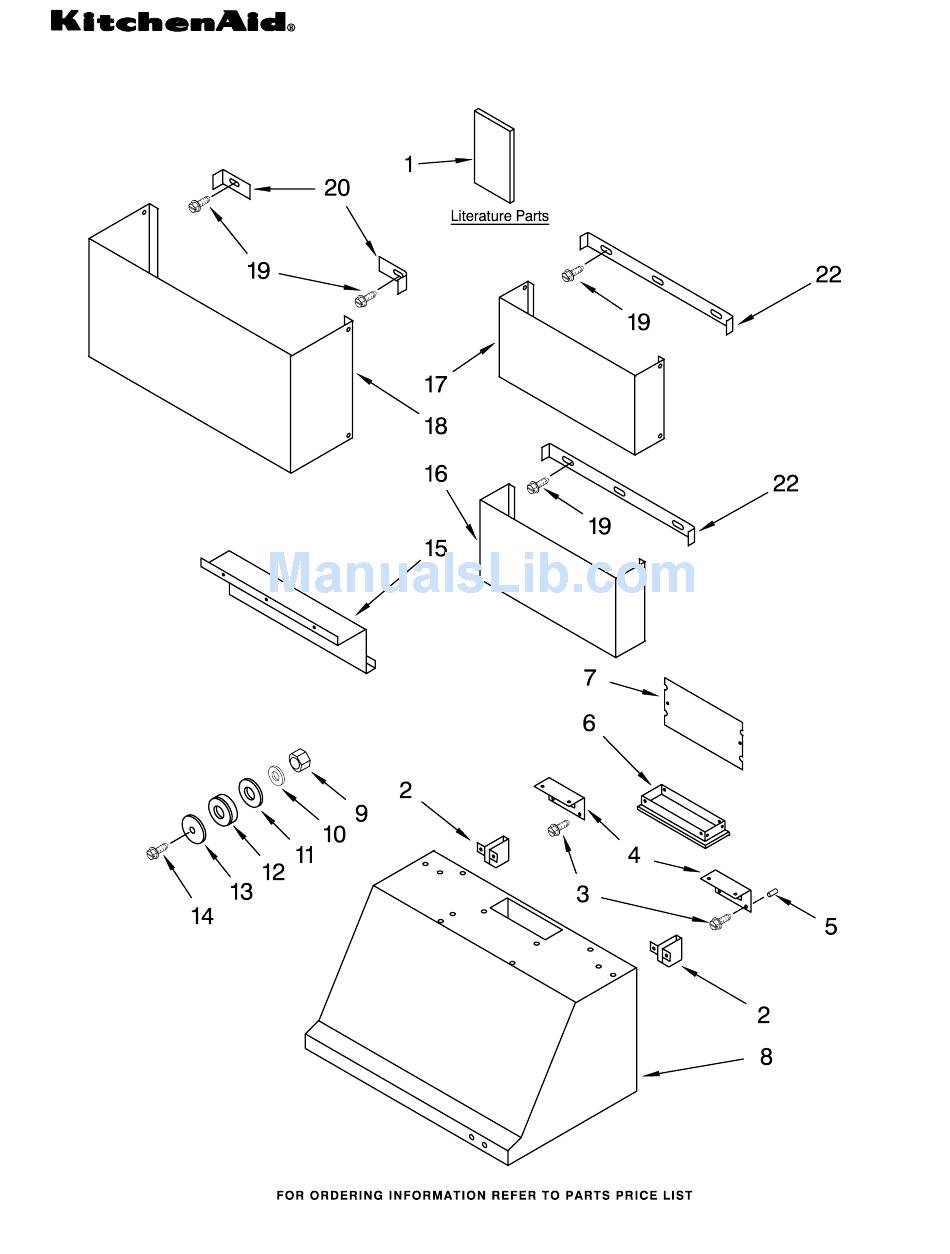

  • Page 2 HOOD PARTS For Model: KWCU320JSS0 (Stainless) Illus. Part DESCRIPTION Literature Parts LIT8284829 Use & Care Guide/ Install Instructns LIT8189631 Wiring Diagram 8189612 Bracket, Hood 8189611 Screw 8189610 Bracket, Mounting 4360318 Grommet 4360001 Damper 4360190 Cover, Exhaust 8190478 Hood 8189600 Nut 4360158 Washer 8189601 Plate (Rubber) 8189602 Transformer, 120V...
  • Page 3 VENTILATION PARTS For Model: KWCU320JSS0 (Stainless) 8190480...
  • Page 4 VENTILATION PARTS For Model: KWCU320JSS0 (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8189594 Filter, Grease 4360028 Lens, Indicator 4360347 Screw, Mtr Mount Support. Side 8189620 Button, Mtr Speed 4360056 Box, Capacitor 8189629 Block, Termial 8190475 Left 4360257 Support, Filter 4360059 Bracket, Capacitor 8190479 Right Bracket, Diffuser...
