36" and 48" architect series commercial style gas cooktop (25 pages)
Summary of Contents for KitchenAid KGCP467JSS05
Page 1

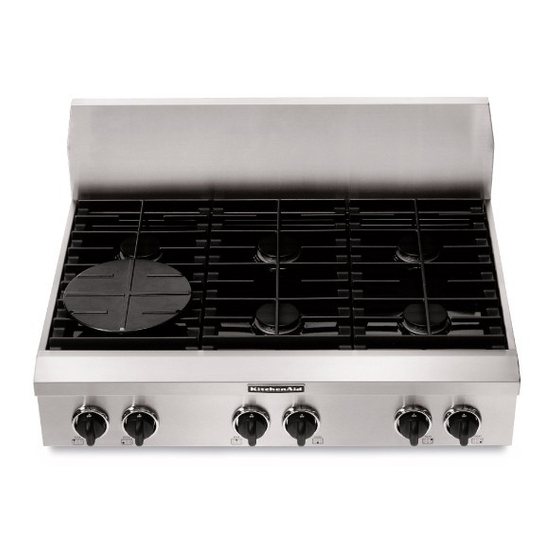

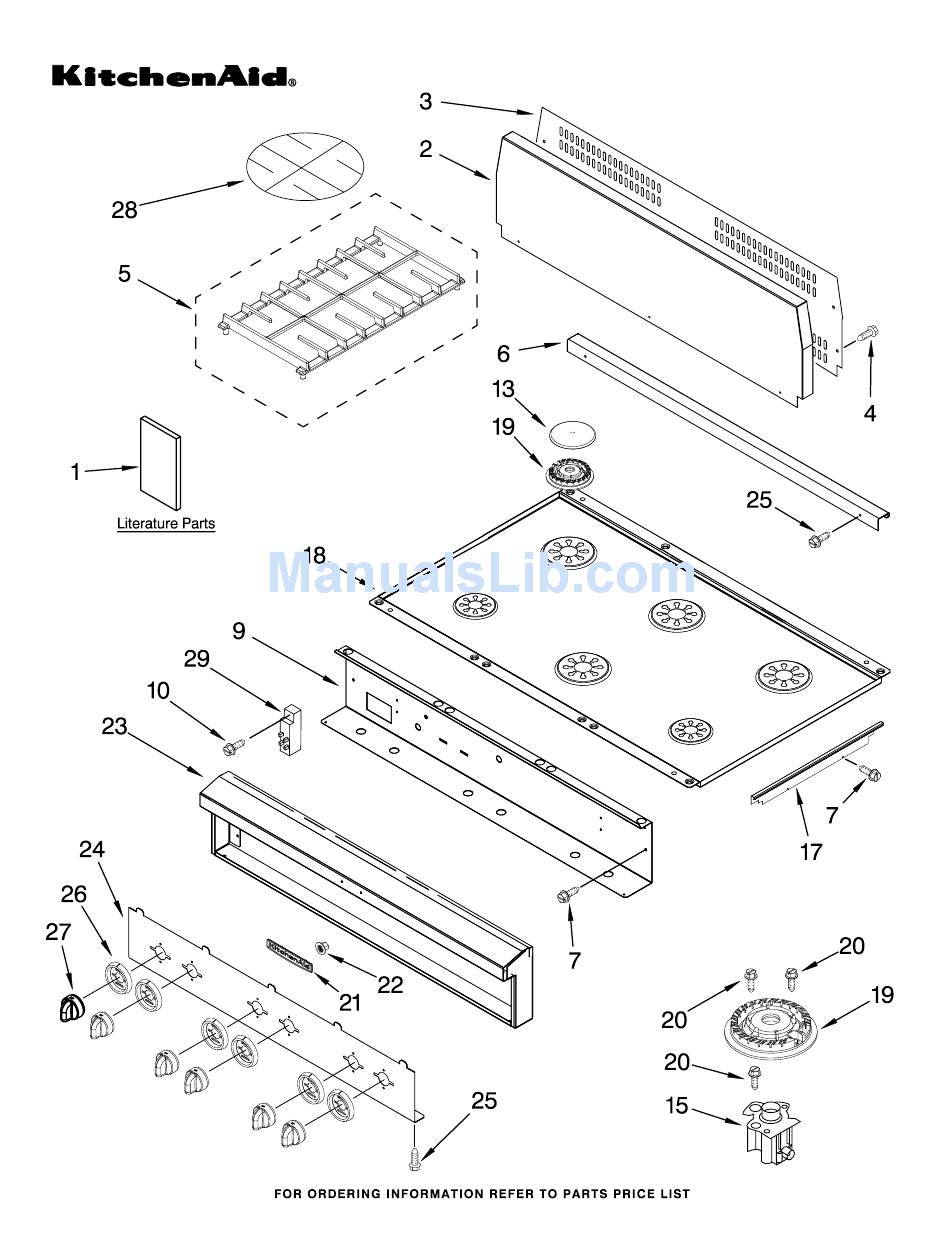

COOKTOP, BURNER AND GRATE PARTS 36" Professional Cooktop For Model: KGCP467JSS05 (Stainless Steel) Part No.8186198 4−04 Litho in U.S.A. (cre)
Page 2
COOKTOP, BURNER AND GRATE PARTS For Model: KGCP467JSS05 (Stainless Steel) Illus. Part DESCRIPTION Literature Parts LIT4455062 Instructions, Island Trim LIT8285477 Wiring Diagram LIT8285588 Use & Care Guide LIT8285479 Installation Instructions LIT8285589 Instructions, LP Conversion 4454960 Backsplash 8284712 Support,Backsplash 3196537 Screw, 8−18 x 3/8 4454963 Grate, Burner 4454962 Trim, Island 3177991 Screw, 8−18 x 1/4...
Page 3
BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP467JSS05 (Stainless Steel) 8186198...
Page 4
BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP467JSS05 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4455040 Tubing, Gas 8284749 Manifold 8285358 Support, Rear Burner − RF 4456818 Valve, Burner 3192811 Bracket, Burner 4455041 Tubing, Gas (Turbo) 3177991 Screw, 8−18 x 1/4 Burner −...
