KitchenAid KGCP467HSS1 Parts List

36" stainless steel professional cooktop
Hide thumbs


Advertisement

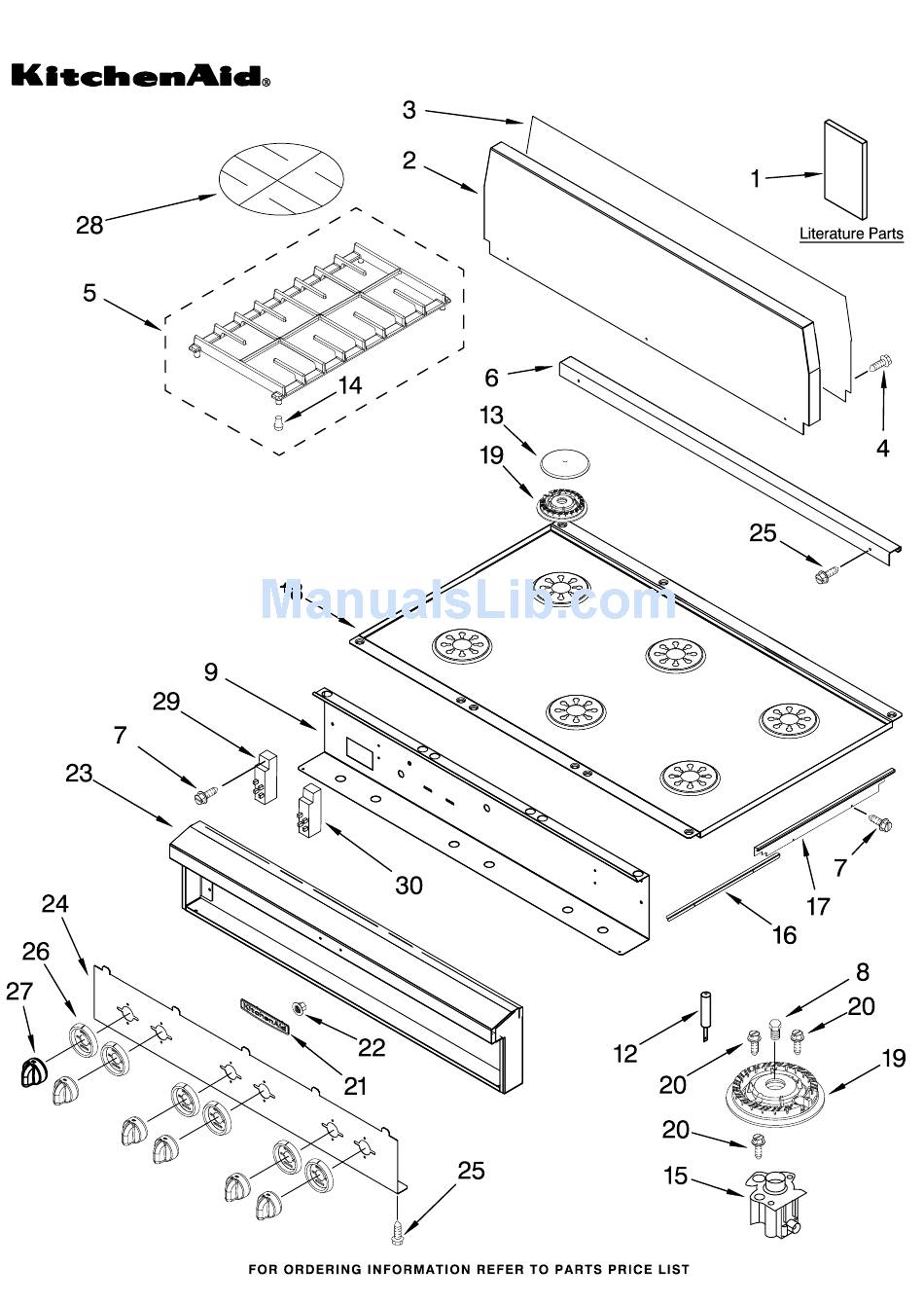

COOKTOP, BURNER AND GRATE PARTS
For Model: KGCP467HSS1
36" Stainless Steel
(Stainless Steel)
Professional Cooktop
12−99 Litho in U.S.A. (RS)
1
Part No.8177471

Advertisement

Table of Contents
loading

  Also See for KitchenAid KGCP467HSS1

  Related Manuals for KitchenAid KGCP467HSS1

  Summary of Contents for KitchenAid KGCP467HSS1

  • Page 1 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP467HSS1 36" Stainless Steel (Stainless Steel) Professional Cooktop 12−99 Litho in U.S.A. (RS) Part No.8177471...
  • Page 2 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP467HSS1 (Stainless Steel) Illus. Part DESCRIPTION Literature Parts LIT4455062 Instructions, Island Trim LIT3192100 Wiring Diagram LIT4455045 Use & Care Guide LIT4455046 Installation Instructions LIT4455110 Instructions, LP Conversion 4454960 Backsplash 4455030 Support,Backsplash 3196537 Screw, 8−18 x 3/8 4454963 Grate, Burner 4454962 Trim, Island 3177991 Screw, 8−18 x 1/4...
  • Page 3 BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP467HSS1 (Stainless Steel) 8177471...
  • Page 4 BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP467HSS1 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4455153 Tubing, Gas 4455040 Tubing, Gas 4455157 Regulator,Pressure Burner − RF Burner − LF 4454952 Burner Box 4455041 Tubing, Gas 4455154 Tubing, Gas Side, Burner Box Burner −...
