Summary of Contents for KitchenAid KSSC42FTS03
- Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Model: KSSC42FTS03 (Stainless Steel) 10−08 Litho In U.S.A. (mjb)(mek) Part No. W10222766 Rev. A...
-

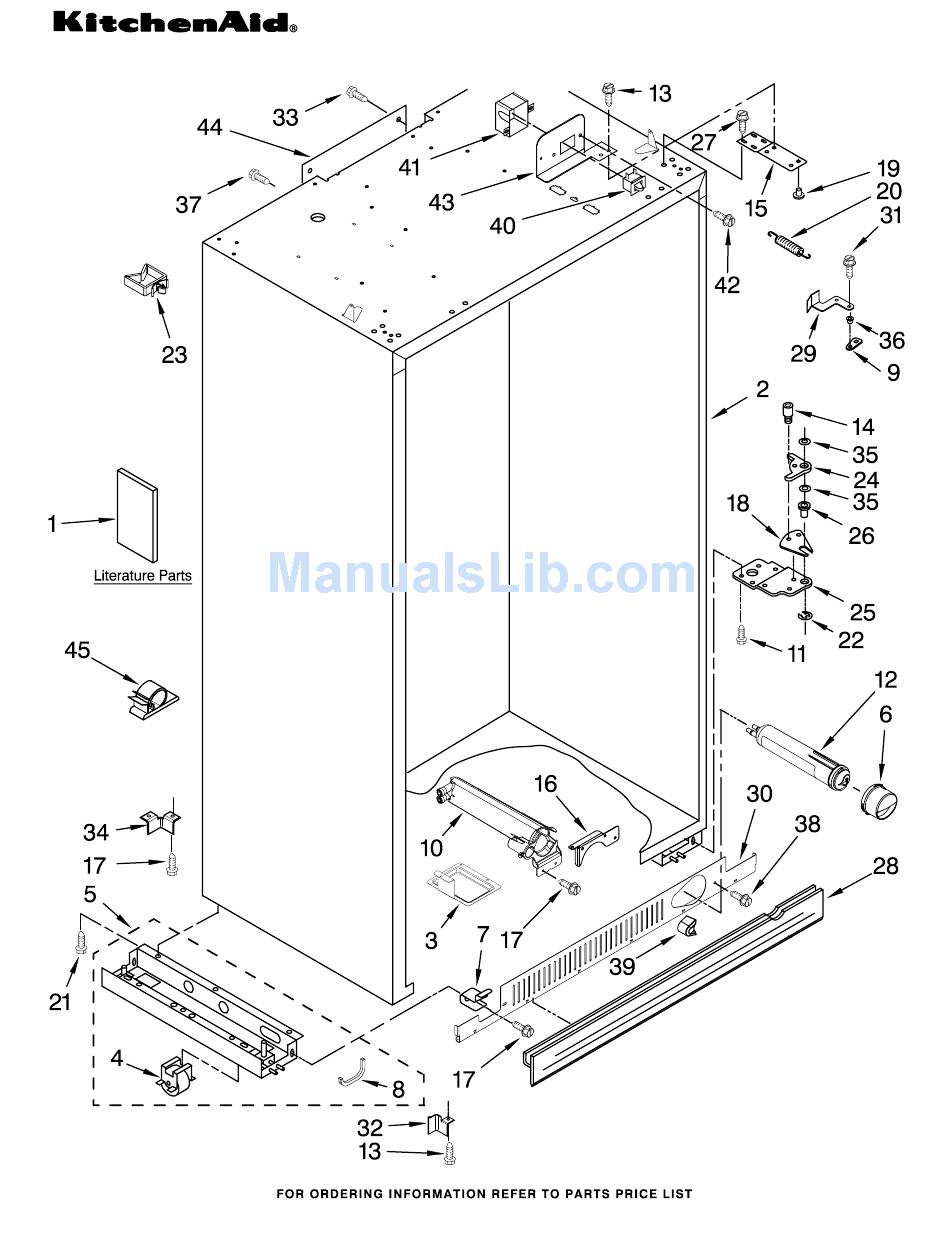

Page 2: Cabinet Parts
CABINET PARTS For Model: KSSC42FTS03 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 10 W10121140 Housing, Water Extension Arm, W10161714 Use & Care Guide Filter Door Closer 3400525 Screw 2266882 Right W10187858 Energy Guide 4396841 Filter, Water 2266881 Left W10159831 Service &... - Page 3 CABINET TRIM PARTS For Model: KSSC42FTS03 (Stainless Steel) Illus. Part DESCRIPTION 1 W10132472 Cabinet, Trim (Right Side) 1163283 Screw 2316687 Cabinet, Trim (Bottom) 486194 Screw 2314017 Cabinet, Trim Top 7 W10132541 Cabinet Trim (Left Side) 8 W10121451 Nutsert (4) 2005925 Seal−Trim, Side 489464 Screw W10222766...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSC42FTS03 (Stainless Steel) Illus. Part DESCRIPTION 2302868 Wire, Shelf (2) 2302871 Cover, Shelf 2302883 Shelf, Fixed (2) 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266934 Door, Ice 2266931 Bucket, Ice 2266955 Spacer W10222766... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSC42FTS03 (Stainless Steel) W10222766... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSC42FTS03 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2003577 Guard, Air Return 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Air Baffle 11 W10169528 Baffle, Control Assembly...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Model: KSSC42FTS03 (Stainless Steel) Illus. Part DESCRIPTION 2307586 Control Box 2310164 Wire, Jumper 2307592 Bracket, Control Box 2307595 Shield, Light 487539 Screw 2317000 Clip, Control Box 2306086 Display Board, Ingredient Care Center 2223857 Socket, Light 2326255 Light Bulb 8281185 Screw W10222766... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSC42FTS03 (Stainless Steel) Illus. Part DESCRIPTION 2316737S Panel, Decorative 2 W10161693 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10185625 Cover, Unit Front 487415 Screw 7 W10167456 Wire Assembly RC/FC Light Switch 2317923S Nameplate 489348 Clamp 489399 Screw (5)
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSC42FTS03 (Stainless Steel) W10222766... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSC42FTS03 (Stainless Steel) Illus. Part DESCRIPTION 2222592 Shelf Assy (4) 2256250 Trim, Glass Side Meat Pan 2179404 Rack, Wine 2302842 Meat Pan Cover Assembly 2302835 Crisper Cover Assembly 2257582 Trim, Glass Rear 2252412 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side 2302955 Right Side...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC42FTS03 (Stainless Steel) W10222766...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC42FTS03 (Stainless Steel) Illus. Part DESCRIPTION 2259385 Fan Motor 2169142 Fan Blade 2223733 Retainer, Fan Motor 2302817 Gasket, Cover 2223986 Grommet 486194 Screw 2259464 Wedge, Air Duct 488500 Screw, Ground 2223857 Socket, Light (2) 488937 Clamp, Nylon 2326255 Light Bulb 2182120 Scroll, Fan...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSC42FTS03 (Stainless Steel) W10222766... - Page 14 REFRIGERATOR DOOR PARTS For Model: KSSC42FTS03 (Stainless Steel) Illus. Part DESCRIPTION 1 W10193490 Door Assy (Includes #9) 2258951 Brace, Door Corner 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gasket, Utility 2222811 Door Gasket, Magnetic 2307753 Skin, Door...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSC42FTS03 (Stainless Steel) W10222766... - Page 16 FREEZER DOOR PARTS For Model: KSSC42FTS03 (Stainless Steel) Illus. Part DESCRIPTION 1 W10193486 Freezer Door (Includes #13) 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222814 Door Gasket, Magnetic 2316868 Handle, Door 2309056 Spacer, Door−Skin (Handle Side) 2307756 Skin, Door Screw...
- Page 17 UPPER UNIT PARTS For Model: KSSC42FTS03 (Stainless Steel) W10222766...
- Page 18 UPPER UNIT PARTS For Model: KSSC42FTS03 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2310294 Wiring Harness, 489399 Screw 1 W10133449 Inverter Box Unit Compartment 2155774 Wire Tie 489373 Screw, Compressor 21 W10175593 Drier Mounting (4) 2310207 Wire Assembly 2223393 Compressor (Condenser Fan) Following Parts Not Illustrated...
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSC42FTS03 (Stainless Steel) W10222766...
- Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSC42FTS03 (Stainless Steel) Illus. Part DESCRIPTION 486194 Screw 2 W10157752 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 5 W10196999 Drain Pan Assembly 6 W10151288 Cover, Wiring 7 W10153595 Cover, Box 8 W10121371 Tube, Discharge 9 W10205101 Evaporator 10 W10140161 Heater, Defrost 1113048 Clamp, Heater (2)
-
Page 21: Icemaker Parts
ICEMAKER PARTS For Model: KSSC42FTS03 (Stainless Steel) W10222766... - Page 22 ICEMAKER PARTS For Model: KSSC42FTS03 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2221240 Heater, Fill Tube 1 W10129653 Shield, Valve 488500 Screw 2257538 Cover 2259064 Cover, Fill Tube 626691 Module Assembly 2313990 Shut Off Arm Heater (Includes Items 20 W10122527 Mold &...
