- Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) Part No. 4398833 10−02 Litho In U.S.A. (mek)
-

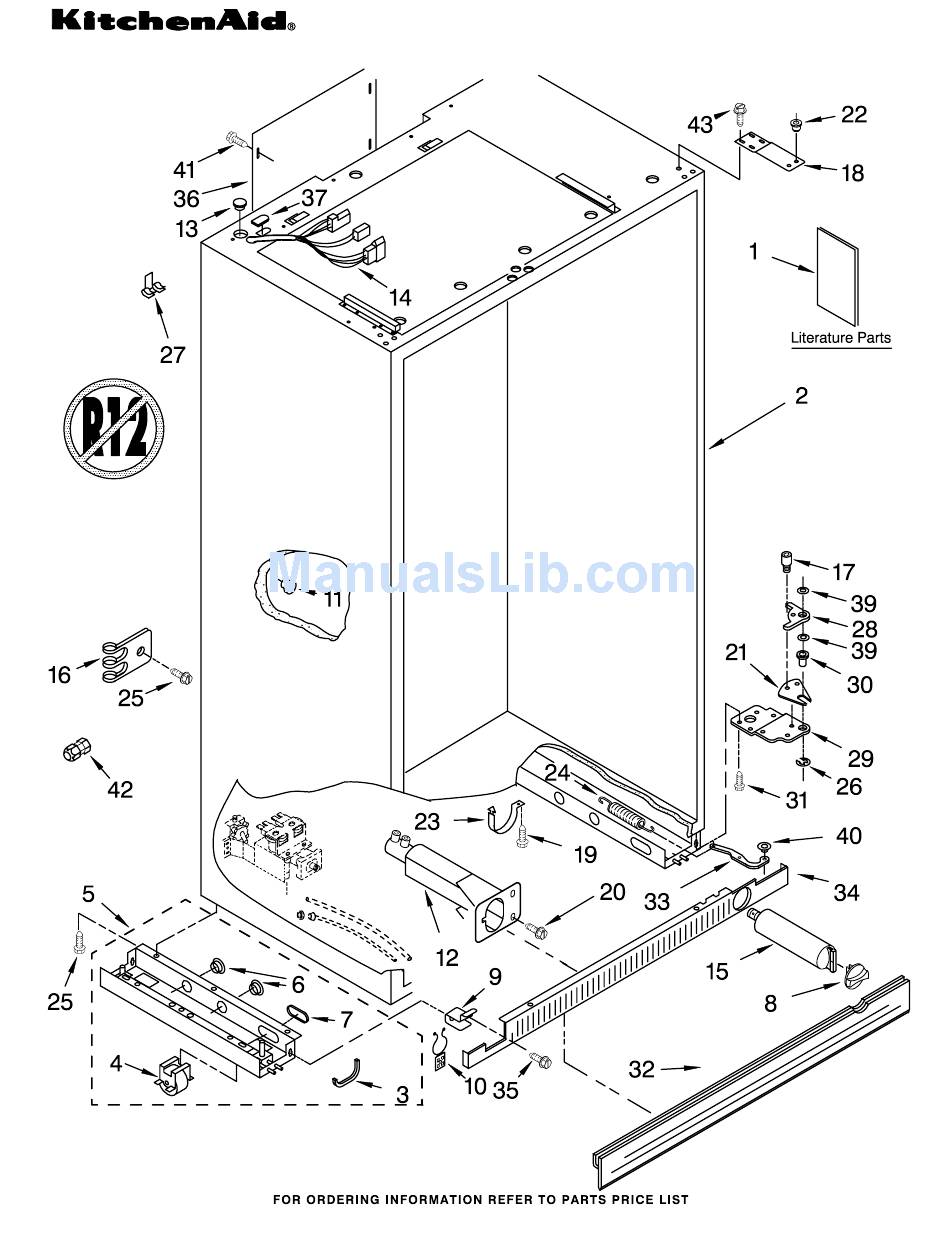

Page 2: Cabinet Parts
CABINET PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2005237 Clip, Wire Hinge (Bottom) LITERATURE PARTS 1112849 Cap, Grommet 2006779 Freezer Side LIT2209249 Use & Care Guide 2209022 Housing, Water 2006780 Refrigerator Side LIT2209472 Energy Label... - Page 3 CABINET TRIM PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) Illus. Part DESCRIPTION Trim, Cabinet Right Side 2209475W White 2209475B Black 2209475S Stainless Steel 2209475T Biscuit 2003857 Screw 1163283 Screw 2209074 Trim, Cabinet (Bottom) 486194 Screw 2003646 Trim, Cabinet Top Trim, Cabinet Left Side...
-
Page 4: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2005567 Bracket, Light 1113650 Lens 2005042 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) 4398833... - Page 6 REFRIGERATOR LINER PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air Duct Cover...
- Page 7 REFRIGERATOR CONTROL PANEL PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) Illus. Part DESCRIPTION 2209226 Control Panel 2209002 Inlay, Control Panel 2208995 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113135 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3)
- Page 8 FREEZER CONTROL PANEL PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) Illus. Part DESCRIPTION 1113626 Control Panel 2003308 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113134 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3)
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) 4398833... - Page 10 REFRIGERATOR SHELF PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) Illus. Part DESCRIPTION 2174403 Frame, Shelf 2003376 Glass, Shelf 1113547 Reflector, Shelf 1113791 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2006524 Frame, Assembly Meat Pan 2164373 Egg Carrier 1113894 Cover, Crisper 2003379 Glass, Crisper...
-
Page 11: Freezer Shelf Parts
FREEZER SHELF PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) Illus. Part DESCRIPTION 2003143 Solid Shelf 2188382 Front, Ice Compartment 1113637 Shelf, Fixed (2) 1113565 Shelf, Deep 2208194 Basket 2208907 Ice Container 2003044 Front Cover Slide, Container 2002720 Right Side 2002721 Left Side 2003046 Hole Plug, Front... - Page 12 TOP GRILLE AND UNIT COVER PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) Illus. Part DESCRIPTION Top Grille Assembly 2209101W White 2209101B Black 2006795 Stainless Steel 2209101T Biscuit 2005549 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw Nameplate 2209118W White...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) 4398833... - Page 14 REFRIGERATOR DOOR PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2003871 Refrigerator 2188320 Door Gasket, 2005030 Spacer, Door Door Panel Magnetic Hinge Side (Includes 2004447 Brace, Door Corner 2004934 Spacer, Door Insulation) Handle, Door...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) 4398833... - Page 16 FREEZER DOOR PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2004447 Brace, Door−Corner 2003877 Freezer Door 2005433 Spacer, Top 1112533 Gasket Retainer, Panel (Includes 2004933 Spacer, Door Side (2) Insulation) Bottom...
- Page 17 UPPER UNIT PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) 4398833...
- Page 18 UPPER UNIT PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2003398 Assembly, Unit 2208903 Motor, Fan Base Following Parts Not Illustrated 2190685 Blade, Fan 2163787 Clip, Compressor 2003169 Orifice, Fan and Optional Parts Not Included Mounting (4)
- Page 19 LOWER UNIT AND TUBE PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) 4398833...
- Page 20 LOWER UNIT AND TUBE PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) Illus. Part DESCRIPTION 2006755 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan 1113062 Hanger, Heater...
- Page 21 AIR FLOW AND RESERVOIR PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) 4398833...
- Page 22 AIR FLOW AND RESERVOIR PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) Illus. Part DESCRIPTION 2003200 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2003925 Deflector, Air Duct 488500 Screw, Ground 488366 Clamp, Tube...
-
Page 23: Icemaker Parts
ICEMAKER PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) 4398833... - Page 24 ICEMAKER PARTS For Models: KSSC42FJW00, KSSC42FJB00, KSSC42FJS00, KSSC42FJT00 (White) (Black) (Stainless Steel) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2005038 Plug, Water Valve 488937 Clamp Tube 489322 Screw 2174155 Cover 489276 Screw 841707 Insert, Tube 628228 Mold & Heater 628379 Clip, Fuse 2171593 Shut Off Arm (Also Order...
