KitchenAid KSSC36MHS00 Parts List

KitchenAid KSSC36MHS00 Parts List

36" built in refrigerator
Hide thumbs
Table of Contents

Advertisement

Quick Links

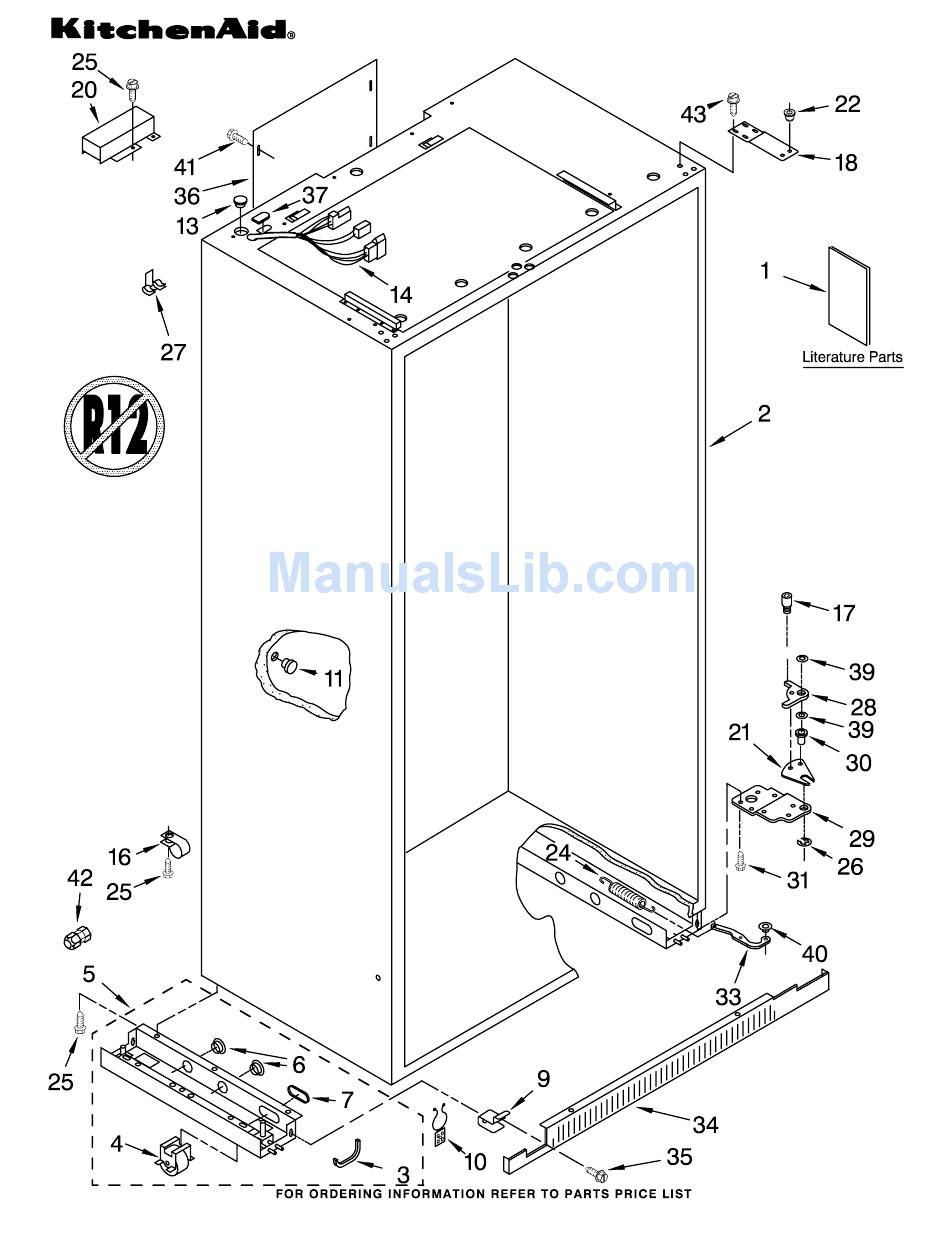

CABINET PARTS
36" BUILT IN
REFRIGERATOR
For Model: KSSC36MHS00
11−99 Litho In U.S.A. (mek)
Part No. 4398507
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSC36MHS00 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSC36MHS00

Summary of Contents for KitchenAid KSSC36MHS00

  • Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Model: KSSC36MHS00 11−99 Litho In U.S.A. (mek) Part No. 4398507...

  • Page 2: Cabinet Parts

    CABINET PARTS For Model: KSSC36MHS00 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2005007 Grommet, LITERATURE PARTS 2006342 Gap, Cover Flexible LIT2006136 Use & Care Guide Assembly (Bottom) 2006442 Mounting Stud, LIT2006654 Energy Label Hinge (Bottom) Grill LIT2005930 Service & Wiring 2006732 Freezer Side 2005237 Clip, Wire Sheet...
  • Page 3 CABINET TRIM PARTS For Model: KSSC36MHS00 Illus. Part DESCRIPTION Cabinet, Trim 2005256 Right Side 2005493 Left Side 2003857 Screw 1163283 Screw 2004536 Cabinet, Trim (Bottom) 486194 Screw 2003645 Cabinet, Trim Top 2005925 Seal−Trim, Side 489464 Screw 4398507...

  • Page 4: Freezer Liner Parts

    FREEZER LINER PARTS For Model: KSSC36MHS00 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2005567 Bracket, Light 1113650 Lens 2005042 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control Panel (3) 842534 Clip, Air Duct (4) 1112260 Support,...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSC36MHS00 4398507...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KSSC36MHS00 Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct 2003299 Inlay, Control Meat Pan...
  • Page 7 REFRIGERATOR CONTROL PANEL PARTS For Model: KSSC36MHS00 Illus. Part DESCRIPTION 1112640 Control Panel 2003301 Inlay, Control Panel 2004005 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113133 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 2005564 Shield, Control Panel 2005043 Socket, Light...
  • Page 8 FREEZER CONTROL PANEL PARTS For Model: KSSC36MHS00 Illus. Part DESCRIPTION 1113625 Control Panel 2003307 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113132 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 2005561 Shield, Control Panel 2005042 Socket, Light...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSC36MHS00 4398507...
  • Page 10 REFRIGERATOR SHELF PARTS For Model: KSSC36MHS00 Illus. Part DESCRIPTION 2174402 Frame, Shelf 2003375 Glass, Shelf 1113546 Reflector, Shelf 1113790 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2006523 Frame, Assembly Meat Pan 2164373 Egg Carrier 1113893 Cover, Crisper 2003378 Glass, Crisper 2000742 Meat Pan, Connector 2169935 Cover...

  • Page 11: Freezer Shelf Parts

    FREEZER SHELF PARTS For Model: KSSC36MHS00 Illus. Part DESCRIPTION 2003142 Solid Shelf 2003133 Front, Ice Compartment 1113564 Shelf, Fixed (2) 1113636 Shelf, Fixed−Deep 2208192 Basket (2) 2208906 Ice Container 2003043 Front Cover Slide, Container 2002720 Right Side 2002721 Left Side 2003046 Hole Plug, Front 2003047 Hole Plug, Rear 2003112 Trim, Basket...
  • Page 12 TOP GRILLE AND UNIT COVER PARTS For Model: KSSC36MHS00 Illus. Part DESCRIPTION 2005312 Top Grille Assembly 2005549 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw 2005292 Nameplate 2005534 Guard, Compressor Wiring 2004333 Nut 2005485 Bracket, Trim Panel 2005483 Bracket, Louver 2005257 Vent, Louver 488649 Screw 4398507...

  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSC36MHS00 4398507...
  • Page 14 REFRIGERATOR DOOR PARTS For Model: KSSC36MHS00 Illus. Part DESCRIPTION 2003870 Refrigerator Door Panel (Includes Insulation) 2005281 Door Skin 2005329 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2004523 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top & Bottom 2005531 Door Gasket, Magnetic 2004447 Door Brace, Corner...

  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSC36MHS00 4398507...
  • Page 16 FREEZER DOOR PARTS For Model: KSSC36MHS00 Illus. Part DESCRIPTION 2003876 Freezer Door Panel (Includes Insulation) 2004520 Spacer−Door, 2004524 Hinge, Bottom 489282 Screw 2005329 Hinge, Top 2004881 Retaining Ring Door−Closure 1112533 Gasket Retainer, Side (2) 1112538 Gasket Retainer, Top & Bottom 2005529 Door Gasket, Magnetic 486194 Screw (34)
  • Page 17 UPPER UNIT PARTS For Model: KSSC36MHS00 4398507...
  • Page 18 UPPER UNIT PARTS For Model: KSSC36MHS00 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2003398 Assembly, Unit 851095 Wire Tie (2) Following Parts Not Illustrated Base 2202581 Drier 2163787 Clip, Compressor 2208903 Motor, Fan and Optional Parts Not Included Mounting (4) 2190685 Blade, Fan 2183418 Compressor...
  • Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSC36MHS00 4398507...
  • Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSC36MHS00 Illus. Part DESCRIPTION 2000528 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan 1113062 Hanger, Heater 2005908 Shield−Drain, Pan 2002448 Sleeve 2002995 Tube, Discharge...
  • Page 21 AIR FLOW AND RESERVOIR PARTS For Model: KSSC36MHS00 4398507...
  • Page 22 AIR FLOW AND RESERVOIR PARTS For Model: KSSC36MHS00 Illus. Part DESCRIPTION 2188322 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2003924 Deflector, Air Duct 488500 Screw, Ground 488366 Clamp, Tube 489348 Clamp, Nylon 2001145 Channel, Wiring 1112871 Fastner...

  • Page 23: Icemaker Parts

    ICEMAKER PARTS For Model: KSSC36MHS00 4398507...
  • Page 24 ICEMAKER PARTS For Model: KSSC36MHS00 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 841707 Insert, Tube 628228 Mold & Heater 2171593 Shut Off Arm 628379 Clip, Fuse (Also Order 2171952 Bracket 2208933 Water Inlet 542638 Silicone 489478 Screw Tube Assembly Grease) 628399 Module Assembly 1106508 Seal Gasket...
