KitchenAid KSSC36MFS05 Parts List
  1. Manuals
  2. Brands
  3. KitchenAid Manuals
  4. Refrigerator
  5. KSSC36MFS05
  6. Parts list
KitchenAid KSSC36MFS05 Parts List

KitchenAid KSSC36MFS05 Parts List

36" built in refrigerator
Hide thumbs Also See for KSSC36MFS05:

Advertisement

Quick Links

Download this manual See also: Use and Care Manual, Instruction and Installation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the KSSC36MFS05 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSC36MFS05

Summary of Contents for KitchenAid KSSC36MFS05

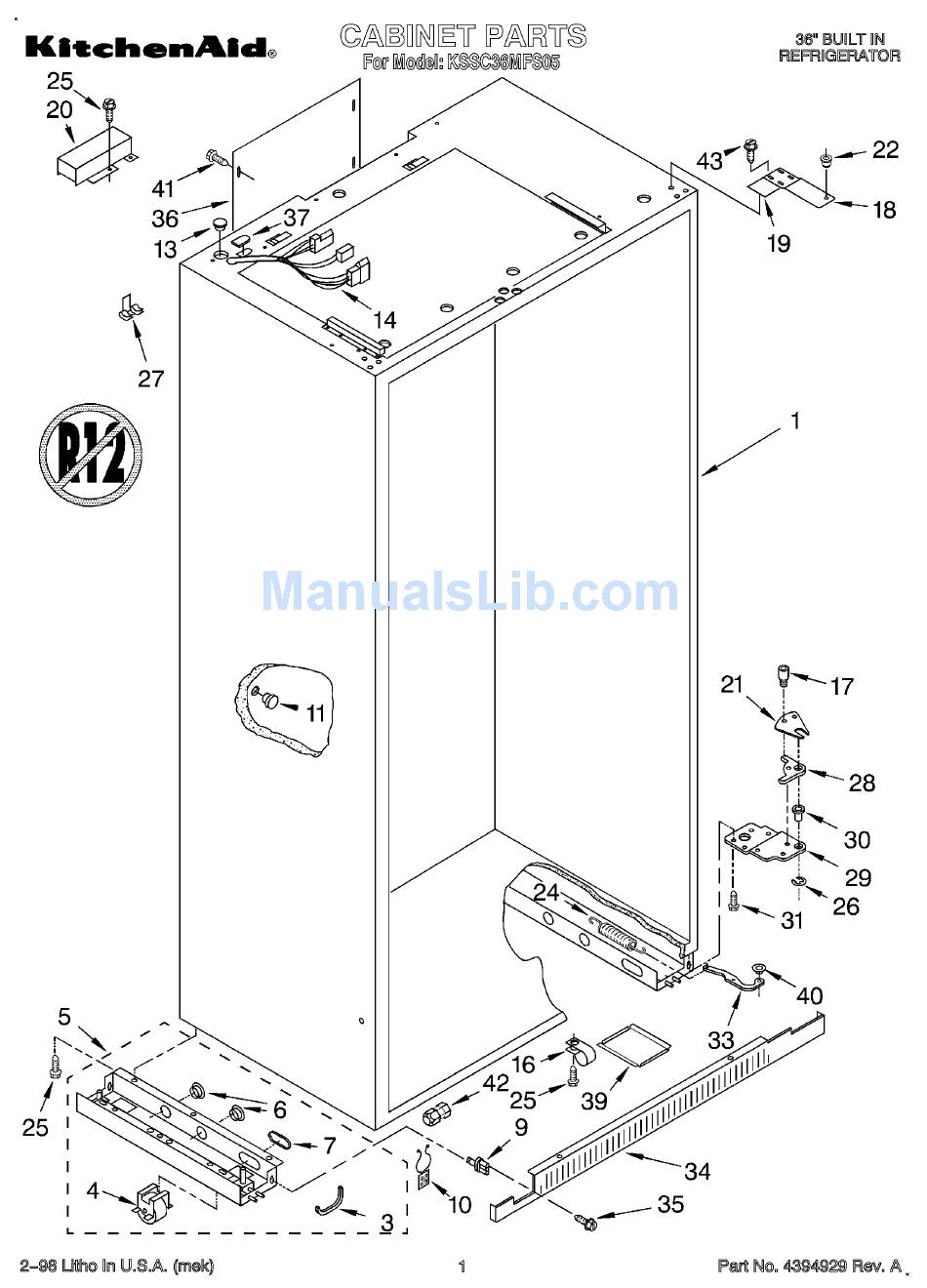

  • Page 2 Cabinet (Not A Serviceable Part) 2005004 Grommet, Tube Crossover 1112023 Roller, Front & Rear (4) Support, Leveler Assembly 2004506 Refrigerator Side 2004505 Freezer Side 2005006 Grommet, Wiring 2005007 Grommet, Flexible 2004852 Mounting Stud, Grill 2005237 Wire Clip 1112849 Cap, Grommet 1113122 Grommet, Wiring 2004911...
