According to the Graph 2-3, connecting Indicator and loadcell, and the indicator enters
weighing mode.
1. Connecting calibration jumper to the 15- pin socket on the indicator back panel.
(There is a 15-pin plug in the packing carton with its 14-pin short connected with
15-pin. )
2. According to table 4-3, carry out calibration step by step.
Table 4 - 1
step Operation
1 press [ CALB]
2
press [1 ] [0 ]
press [Enter ]
3
press [ 0 ]
press [ Enter ]
4
press [ 2 ] [ 3 ]
press [ Enter ]
5
press [ 3 ] [ 0 ]
[ 0 ] [ 9 ] [ 0 ]
6 press [ Enter ]
7

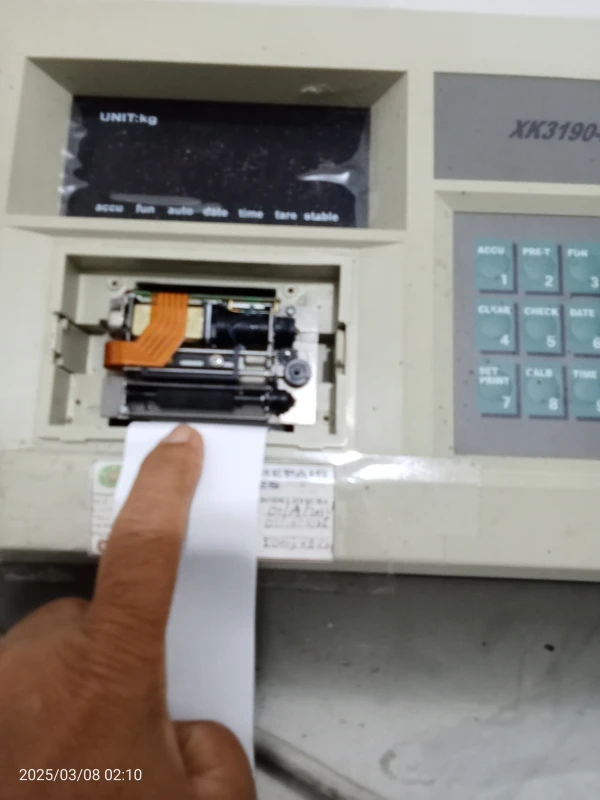

X K 3 1 9 0 - A 1

3. Calibration

Display
after calibration jumper is inserted
[E ** ] Enter division value selecting
[E 10 ] 1/2/5/10/20/50/100/200
Example: 10
[ dc * ] Enter decimal point (0 -4)
[ dc 0 ] Example: without Decimal point 0
[pon XY ] Enter Zero range
[ pon 23 ] X: zero set range (1-5) it stands for
Y: power on Zero set range it
[F ***** ] Enter overload warning value when
inputting F value,and re-pressing
[ F 30090 ] [ Enter ] key, the calibration will begin.
directly pressing [ Enter ],will enter into
the tenth step. If pressing [ weighting ],
Indicator will return to weighing status.
Example: 30090
[ noLoAdn] Confirming Zero position. At this time
there is no load on the scale.Pressing
[Input] when the stable light is on.
+P
Explanation
2% 4% 10% 20% 100% of F.S
Stands for (1-5)
2% 4% 10% 20% 100% of F.S
example 23
