15 In calibration or parameters setting mode, pressing [weigh], it will exit from original
calibration or setting mode and return to weighing mode.

2.3 Connecting Loadcell to Indicator

1. The 9-pin socket is used for the link-up of loadcell, which has been clearly shown
in the graph 2-3.
2. The 4-pin shielded cable is used, +S must be short connected with +E, -S and -E. The
indicator does not have the function of long distance compensation.
3. ▲ ！Indicator must be reliably connect ed to Loadcell and shielded-cable of
loadcell must be reliably connect ed to underground . If indicator is
powered on, the user should not insert or withdraw the plug in order to
protect the indicator and loadcell.
4. ▲ ！Sensor and indicator are static sensitive devices; you must adopt anti-static
measures. In order to protect the operator ,indicator, and relevant devices,
you should install lightning rod in the thunderstorm frenquently
happening area.
6 +E
X K 3 1 9 0 - A 1
-E
-S
1 2
6
7
+E
+S
Terminal of Indicator
7 +S
2 -S
1 -E
9 +IN
8 -IN
5 Shield

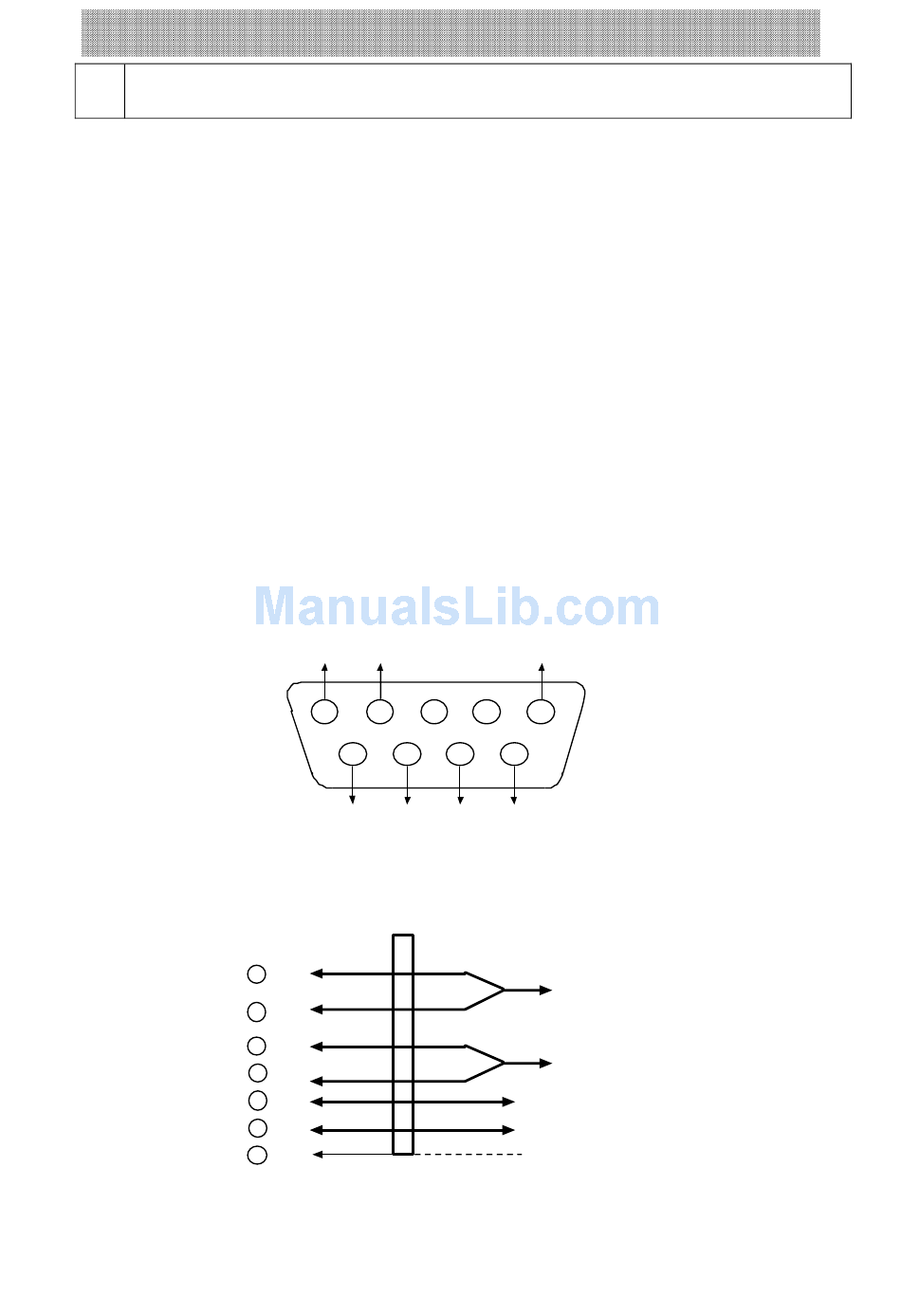

(Graph 3-2 ) Connection of the load cell
+P
Shield
3
4 5
8
9
-IN +IN
Terminal of Sensor
+
Bridge of Power Supply
_
Signal Output
