Connecting Pin Assignments

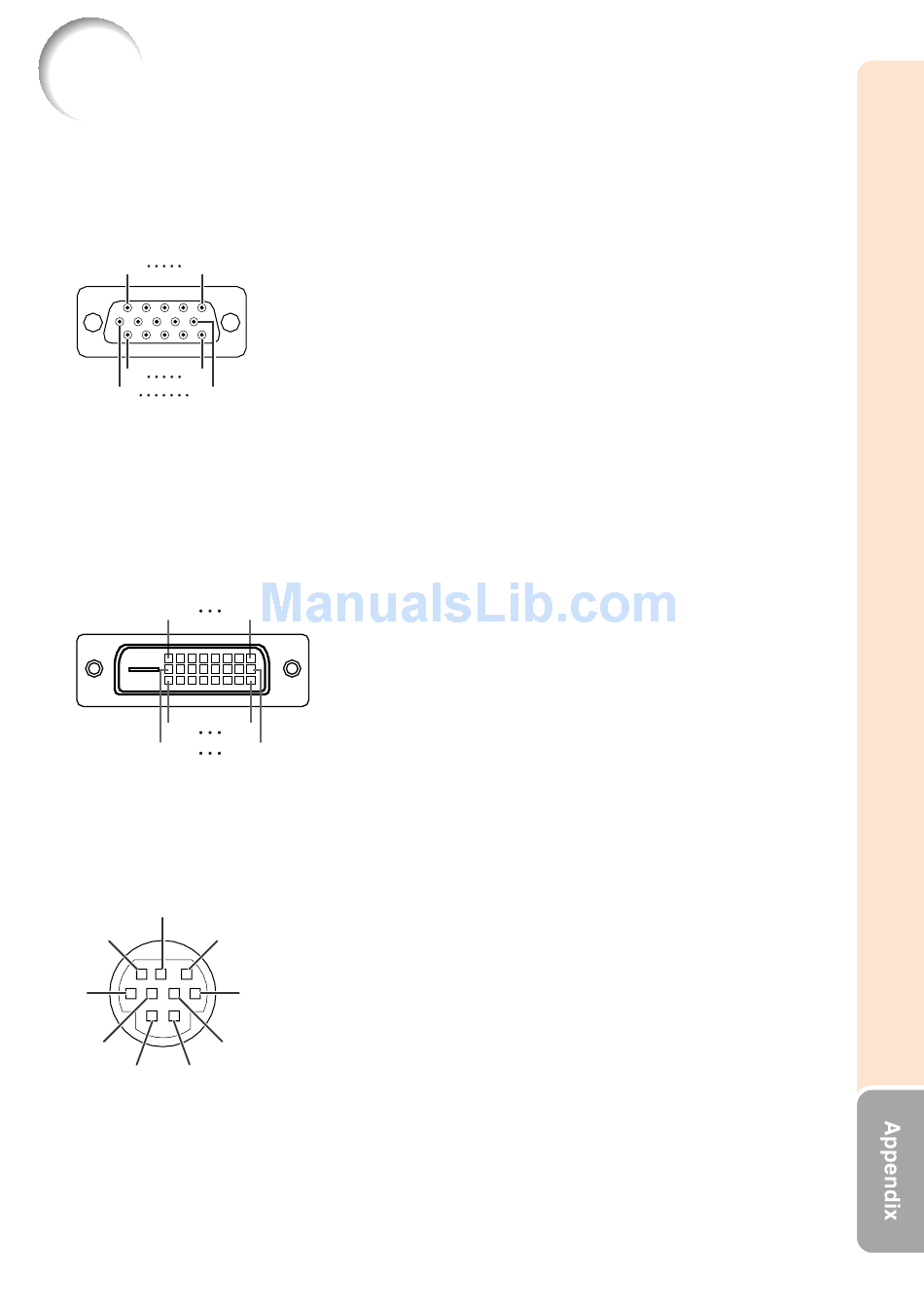

COMPUTER/COMPONENT input and COMPUTER/COMPONENT output Terminals:mini D-sub 15 pin female
connector
11 15
1 5
6 10
DVI-D Terminal: 24 pin connector
24 17
8 1
16
RS-232C Terminal: mini DIN 9 pin female connector
Pin No.
8
9
7
6 3
4
5
2 1
COMPUTER Input/Output
Pin No. Signal
1. Video input (red)
2. Video input (green/sync on green)
3. Video input (blue)
4. Not connected
5. Not connected
6. Earth (red)
7. Earth (green/sync on green)
8. Earth (blue)
9. Not connected
10. GND
11. Not connected
12. Bi-directional data
13. Horizontal sync signal: TTL level
14. Vertical sync signal: TTL level
15. Data clock
Pin No.
1. T.M.D.S data 2–
2. T.M.D.S data 2+
3. T.M.D.S data 2 shield
4. Not connected
5. Not connected
6. DDC clock
7. DDC data
8. Not connected
9. T.M.D.S data 1–
10. T.M.D.S data 1+
11. T.M.D.S data 1 shield
9
12. Not connected
13. Not connected
14. +5V power
15. Ground
Signal Name
1.
2. RD Receive Data
3. SD Send Data
4.
5. SG Signal Ground
6.
7.
RS Request to Send
8. CS
Clear to Send
9.
Signal Pin No.
16.
17.
18.
19.
20.
21.
22.
23.
24.
I/O Reference
Not connected
Input Connected to internal circuit
Output Connected to internal circuit
Not connected
Connected to internal circuit
Not connected
Connected to CS in internal circuit
Connected to RS in internal circuit
Not connected
COMPONENT Input/Output
Pin No. Signal
1. PR (CR)
2. Y
3. PB (CB)
4. Not connected
5. Not connected
6. Earth (PR)
7. Earth (Y)
8. Earth (PB)
9. Not connected
10. Not connected
11. Not connected
12. Not connected
13. Not connected
14. Not connected
15. Not connected
Signal
Hot plug detection
T.M.D.S data 0–
T.M.D.S data 0+
T.M.D.S data 0 shield
Not connected
Not connected
T.M.D.S clock shield
T.M.D.S clock+
T.M.D.S clock–
