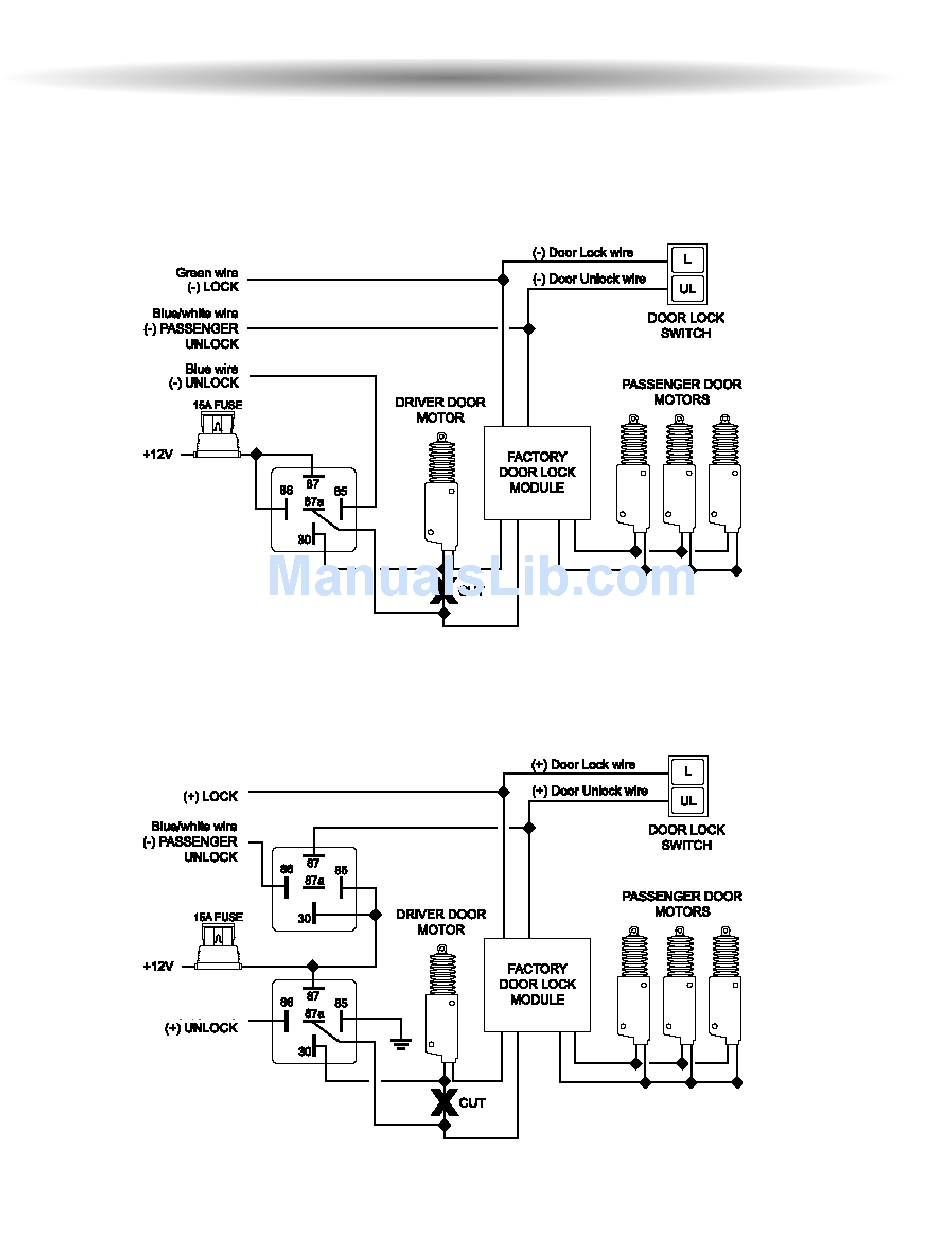

Two Stage Door Lock Diagrams
The VECTRA X5 Series is equipped with a dedicated Passenger Unlock output allowing Two Stage
Door Lock operation. When connected as shown below, disarming the system will unlock only
the driver's door. Pressing the disarm button again will unlock all doors.
Two Stage Negative Trigger
Two Stage Positive Trigger
Door Lock Inverter Green Wire
Door Lock Inverter Blue Wire
Page 28 - VECTRA X5
