1
Introducing Advanced Performance Monitoring

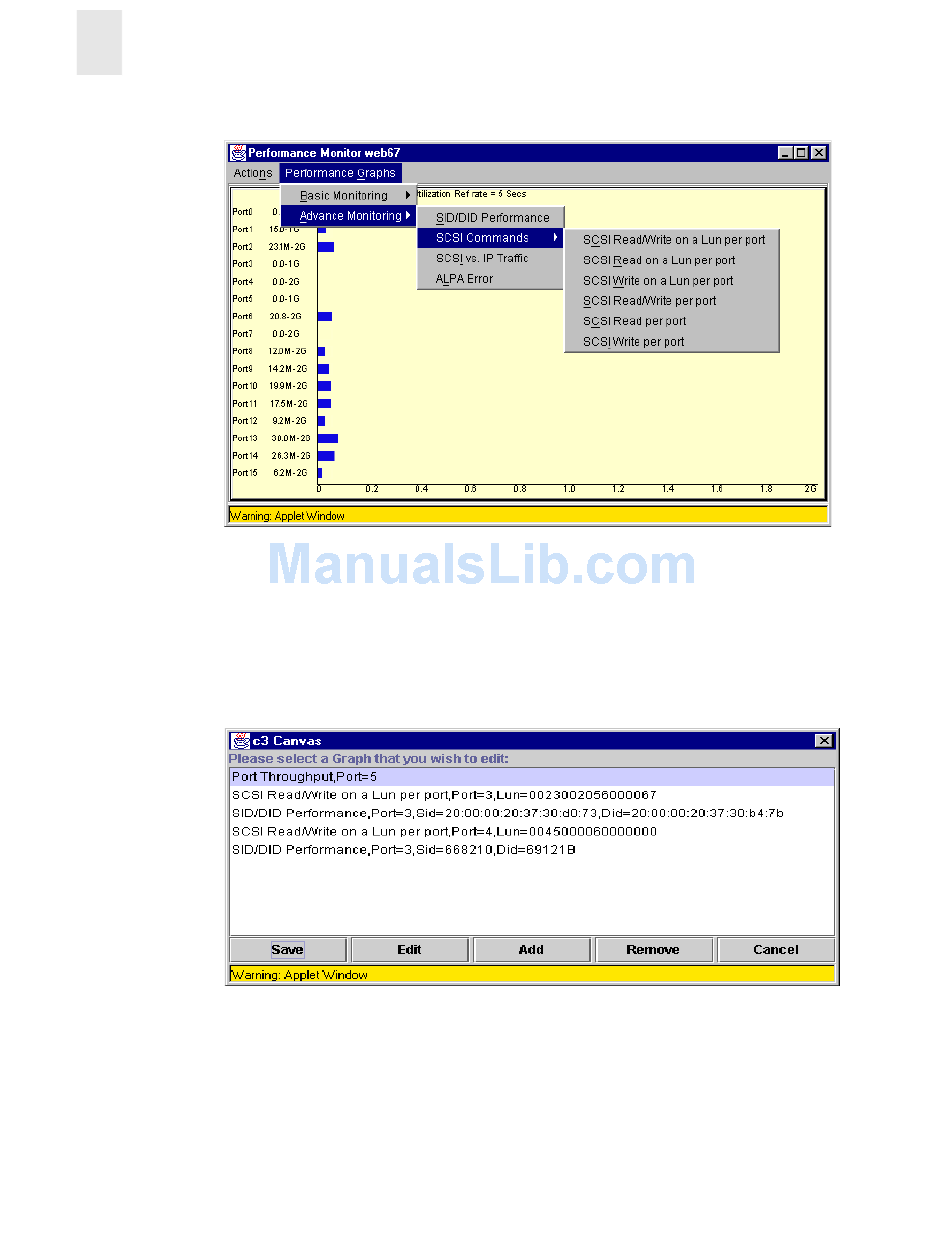

Figure 1-1
User-defined Graphs
The predefined graphs can be modified based on parameter fields such as SID/DID, LUN, AL_PA,
and port. These new user-defined graphs can be added and saved to canvas configurations.
Figure 1-2
Figure 1-2
1-4
Accessing Predefined Performance Graphs
shows a list of user-defined graphs defined in a canvas.
User-defined Graphs
Advanced Performance Monitoring User's Guide
