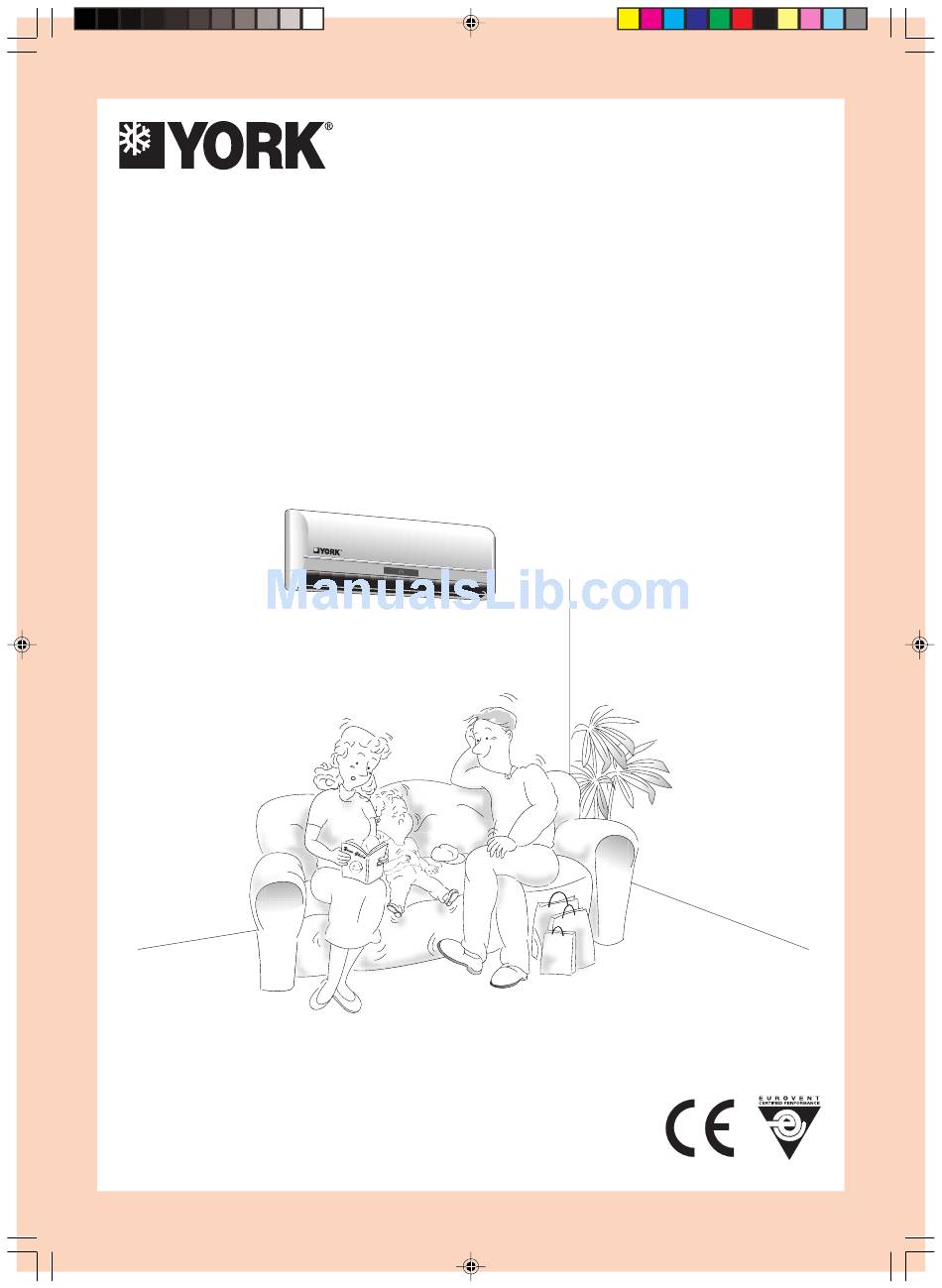

Page 1: Air Conditioner
Installation & Owner’s Manual MODELS MINISPLIT MLCA-MLHA 07-24 MLCB-MLHB 07-24 HIGH WALL MACC-MAHC 07-24 AIR CONDITIONER The units comply with one or more of the following marks - see unit for details. EN035M80013-000 J199.pmd 31/03/2005, 9:52 PM... -
Page 2: Table Of Contents
CONTENTS Safety Precautions ............. 3 Part Names ..............4 Manual Operation ............5 How the air conditioner works ........5 Optimal operation ............6 Preparation Before Installation ......... 6 Installation Procedure ..........8 Maintenance ............. 15 Operation tips ............16 Please read this installation Trouble Shooting Guide .......... -
Page 3: Safety Precautions
REQUIRED TOOLS EXTENDED PARTS 1. Screw driver 9. Manifold gauge 1. Refrigarant Pipe 2. Hexagonal wrench 10. Gas leak detector Models 07-09 12-18 3. Torque wrench 11. Vacuum pump 4. Spanner 12. Pipe clamp Liquid size 1/4 inch 1/4 inch 3/8 inch 5. -
Page 4: Part Names
PART NAMES I INDOOR & OUTDOOR UNIT INDOOR UNIT Front panel Remote controller signal Air inlet receiver Air filter Remote controller Air outlet Manual control button Horizontal air flow grille Connecting pipe, drain hose Vertical air flow louver Air inlet (side and rear) Display panel Air outlet Bio Filter... -
Page 5: Manual Operation
MANUAL OPERATION Manual operation can be used temporarily in case you can not find the remote controller or its batteries are exhausted. 1 Open and lift the front panel up to an angle at which it remains fixed with a clicking sound. 2 Press the button until the AUTO indicator is lit, the unit will work in forced AUTO mode. -
Page 6: Optimal Operation
OPTIMAL OPERATION To achieve optimal performance, Please note the following: • Adjust the air flow direction correctly so that it is not directed on people. • Adjust the temperature to achieve the highest comfort level. Do not adjust the unit to excessive temperature levels. •... -
Page 7: Mlda-Mlja 07-09, Mldb-Mljb 07-09, Madc-Majc
OUTDOOR UNIT PICTURES MLDA-MLJA 07-09, MLDB-MLJB 07-09, MADC-MAJC 07 MLDB-MLJB 18 MLDA-MLJA 24, MLDB-MLJB 24, MADC-MAJC 18-24 MLDA-MLJA 12-18, MLDB-MLJB 12, MADC-MAJC 09-12 301.5 141.5 560.1 ENGLISH J199.pmd 31/03/2005, 9:53 PM... -
Page 8: Installation Procedure
PARTS INSTALLATION Number Name of part Q’ty Installation plate Clip anchor Self-tapping screw A ST3.9X25 Liquid side ø 6.35 Parts ø 9.53 (<12000Btu/h model) Connecting pipe ø 12.7 (21000Btu/h model > Cooling Gas side must assembly capacity f 12000Btu/h model) purchase ø... -
Page 9: Drain Hose
MODEL 24 Above 150mm from the ceiling Hooked Part Hooked Part Hooked Part 1080 Above 120mm from Above 120mm from the wall the wall Right Pipe hole Pipe hole Right Indoor Unit Outline Right Left CAUTION Right • Be careful when handling the sharp edge of the mounting plate. Rear Bottom I Piping I Wiring... -
Page 10: Indoor Unit Fixing
I Indoor Unit Fixing • Thread the indoor unit piping and cable through the hole. • Hang the top of the unit onto the upper ridge of them in mounting plate. • Make sure that the unit is correctly hung in place by sliding it to the left, then to the right. •... - Page 11 To this effect, when the piping has been evacuated, close the pressure gauge tap, note the value on the gauge, then wait for 15 minutes. If the needle moves, there is a leak in the system. Make the necessary adjustments or repairs and repeat this procedure until the needle no longer moves.
- Page 12 I Wiring Prepare the power source for exclusive with the air conditioner. The supply voltage must comply with the rated voltage of the air conditioner: The plug socket shall be accessible after installation. Remark: All the wiring must be based on the wiring nameplate which is shown on the model. CAUTIONS •...
-
Page 13: Wiring Connection
I Wiring Connection Models : 07-18 Indoor Outdoor Terminal block of indoor unit Terminal block of outdoor unit 1 2(N) 3 4 1 2(N) 3 4 2(N) 2(N) 3 Cord clamp Wire-holding To outdoor unit To outdoor unit board Cooling & heating type Cooling only type Cooling &... -
Page 14: Electrical Work
I Electrical Work Switch and Model Power Source Wiring size Fuse rating 220-240V ~ 50Hz f f f f f 1.0 mm 7000-9000 Btu/h 220-230V ~ 60Hz 220-240V ~ 50Hz 12000 Btu/h f f f f f 1.5 mm 220-230V ~ 60Hz 220-240V ~ 50Hz 18000 Btu/h 220-230V ~ 60Hz... -
Page 15: Maintenance
MAINTENANCE WARNING It is necessary to stop the air conditioner and disconnect the power Household supply before cleaning. Drain Cleaner I Cleaning the indoor unit and remote controller CAUTION • Use a dry cloth to wipe the indoor unit and remote controller. •... -
Page 16: Operation Tips
OPERATION TIPS The following events may occur during normal operation. 1. Protection of the air conditioner. Compressor protection • The compressor can’t restart for 3 minutes after it stops. Anti-cold air (Cooling and heating models only) • The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in one of the following three situations and the set temperature has not been reached. -
Page 17: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE Problem Probable cause Remedy A. The air conditioner does not run. 1. Power failure. 1. Wait for power resume. 2. Fuse blown or circuit breaker 2. Replace the fuse or reset the open. breaker. 3. Voltage is too low. 3. -
Page 18: Technical Specification
TECHNICAL SPECIFICATION Technical Specifications : Master Gold “R22” - 50 Hz Indoor MLEA-MLKA Unit MLEA07 MLKA07 MLEA09 MLKA09 MLEA12 MLKA12 MLEA18 MLKA18 MLEA24 MLKA24 Models Outdoor MLDA-MLJA Unit MLDA07 MLJA07 MLDA09 MLJA09 MLDA12 MLJA12 MLDA18 MLJA18 MLDA24 MLJA24 V/Ph/Hz 220-240/1/50 Power Supply Power Consumption 1.01... - Page 19 TECHNICAL SPECIFICATION Technical Specifications : Master Gold “R22” - 60 Hz Indoor MLEA-MLKA Unit MLEA07 MLKA07 MLEA09 MLKA09 MLEA12 MLKA12 MLEA18 MLKA18 MLEA24 MLKA24 Models Outdoor MLDA-MLJA Unit MLDA07 MLJA07 MLDA09 MLJA09 MLDA12 MLJA12 MLDA18 MLJA18 MLDA24 MLJA24 V/Ph/Hz 220-230/1/60 Power Supply Power Consumption 0.71...
-
Page 20: Mldb-Mljb
TECHNICAL SPECIFICATION Technical Specifications : Master Gold “R407C” - 50 Hz Indoor MLEB-MLKB Unit MLEB07 MLKB07 MLEB09 MLKB09 MLEB12 MLKB12 MLEB18 MLKB18 MLEB24 MLKB24 Models Outdoor MLDB-MLJB Unit MLDB07 MLJB07 MLDB09 MLJB09 MLDB12 MLJB12 MLDB18 MLJB18 MLDB24 MLJB24 V/Ph/Hz 220-240/1/50 Power Supply Power Consumption 0.78... - Page 21 TECHNICAL SPECIFICATION Technical Specifications : Master Gold “R410A” - 50 Hz Indoor MAEC-MAKC Unit MAEC07 MAKC07 MAEC09 MAKC09 MAEC12 MAKC12 MAEC18 MAKC18 MAEC24 MAKC24 Models Outdoor MADC-MAJC Unit MADC07 MAJC07 MADC09 MAJC09 MADC12 MAJC12 MADC18 MAJC18 MADC24 MAJC24 V/Ph/Hz 220-240/1/50 Power Supply Power Consumption 0.64...
-
Page 22: Declaration Of Conformity
Authorized Representative: CM Choi Shipping Manager YORK International (Northern Asia) Ltd. 15/F., Tower II, World Trade Square, 123 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Telephone: (852) 2331 9286 Fax: (852) 2331 9840 Technical Service Division: Telephone: (852) 2331 9286 Fax: (852) 2304 0068 ®...
