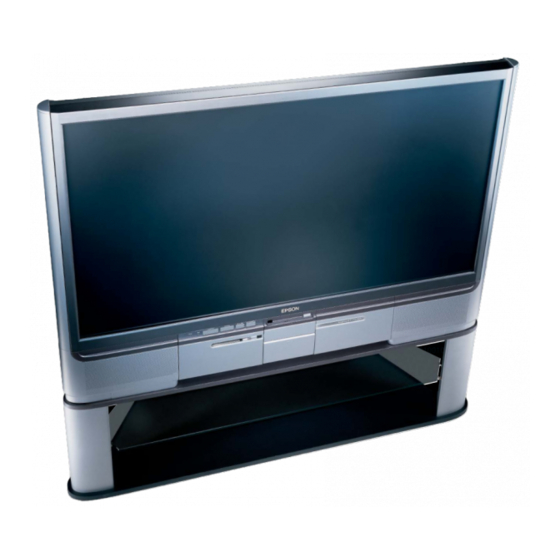

HDTV LCD Projection Television
User's Guide

Advertisement

Chapters

   Related Manuals for Epson Livingstation LS47P1

   Summary of Contents for Epson Livingstation LS47P1

  • Page 1

    ® HDTV LCD Projection Television User’s Guide...

  • Page 2

    SEIKO EPSON CORPORATION. The information contained herein is designed only for use with this EPSON product. EPSON is not responsible for any use of this information as applied to other equipment.

  • Page 3: Table Of Contents

    Table of Contents Setting Up the TV Selecting a Location ..........7 Installing the Set-Top Shelf .

  • Page 4

    Using the TV Features Accessing the Menus..........53 Labelling Your Channels.

  • Page 5

    Caring For the TV Cleaning the TV ........... .99 Cleaning the Air Filter .

  • Page 6

    Table of Contents...

  • Page 7: Setting Up The Tv

    Setting Up the TV Follow the steps in these sections to prepare a spot for your TV, set it up, connect it, turn it on, and prepare it for viewing: • “Selecting a Location” below • “Installing the Set-Top Shelf ” on page 12 •...

  • Page 8

    • Do not operate the TV in an area with high temperatures or humidity, or where large amounts of dust are present. • Leave at least 12 inches (30 cm) of room around the vents on the sides of the TV and do not block the vents.

  • Page 9

    Do not use sharp tools to remove a card from a slot or you may damage the slot and card. • Use only the ink cassette and paper specified for use in the EPSON Livingstation printer (part number ELSPP50). •...

  • Page 10: Outdoor Antenna Installation And Grounding

    Outdoor Antenna Installation and Grounding • It is best to have a professional technician install an antenna on the roof of a structure. If you install an antenna yourself, be careful to avoid serious injury. • If an outside antenna is connected through other equipment, be sure the antenna system is grounded so as to provide protection against voltage surges and built-up static charges.

  • Page 11: Placement For Optimum Viewing

    Suggested Supports or Stands You can use an optional EPSON TV stand to support your TV. Order part number LS47STD (for the LS47P1) or LS57STD (for the LS57P1) from your dealer.

  • Page 12: Installing The Set-top Shelf

    Don’t fold the shelf Fold the shelf into an upside-down L-shape with the shorter end on top. backwards on its hinge or it may break. Setting Up the TV LS47P1 LS57P1 47 inches (119 cm) 56 inches (142 cm) 16 inches (41 cm) 18 inches (46 cm) 331 lb (159.0 kg)

  • Page 13: Securing The Tv

    Align the holes in the shelf with the holes on the back of the TV. Using a Phillips-head screwdriver, secure the shelf to the TV with the four screws that came with it. Tighten the screws. Securing the TV You may want to secure the TV to a wall or other support so it stays upright on its stand during an earthquake or other situation.

  • Page 14: Connecting The Cables

    Connecting the Cables Note For a description of all the You can connect the TV to a variety of equipment. Follow the steps in the applicable sections available connectors on the front and back panels, below, depending on the equipment you’re connecting and the type of connector or service see the inside back cover you’re using.

  • Page 15: Antenna Or Direct Cable Tv Connection

    Antenna or Direct Cable TV Connection Connect the TV to an outside antenna or to your cable system using a 75-ohm coaxial cable. Connect the cable coming into the house to the ANT 1 connector on the back of the TV. If your coaxial cable has a screw-type connector on the end, secure it by turning the end clockwise.

  • Page 16: Cable Box Connections

    Cable Box Connections Note Before connecting a cable The connection method differs, depending on the type of cable box you have. Your cable box box to the TV, be sure to may unscramble signals for all of your channels or it may unscramble only some of them. read any instructions that came with the cable box.

  • Page 17

    Cable Box Unscrambles Only Some of Your Channels If your cable box unscrambles signals for only some of your channels, connect it as follows: Connect the cable coming into the house to the ANT 1 connector on the back of the TV. Remove the jumper cable connected to both the RF Output and ANT 2 connectors on the back of the TV.

  • Page 18: Digital Tv (hdtv) Receiver With A Dvi-hdtv Connection

    Digital TV (HDTV) Receiver with a DVI-HDTV Connection Note Before connecting a digital Turn off and unplug your TV and your digital TV receiver. TV receiver to the TV, be sure to read any Connect one end of a DVI-HDTV cable to the DVI-HDTV Input connector on the instructions that came with the receiver.

  • Page 19: Digital Tv (hdtv) Receiver With Component Video Connection

    Digital TV (HDTV) Receiver with Component Video Connection Turn off and unplug your TV and your digital TV receiver. Connect one end of the component video cable to any available set of Y (green), PB (blue), and PR (red) connectors on the back of the TV. Connect the other end of the component video cable to the Y, PB, and PR connectors on your digital TV receiver.

  • Page 20: Dvd Player With Component Video Connection

    DVD Player With Component Video Connection Note The connectors may be Connect one end of the component video cable to any available set of Y (green), PB labeled Y, B-Y, R-Y, or Y, Cb, (blue), and PR (red) connectors on the back of the TV. Cr, or Y, Pb, Pr on your DVD player, so just match the Connect the other end of the component video cable to the corresponding color...

  • Page 21: Dvd Player With An S-video Connection

    DVD Player With an S-Video Connection Connect one end of an S-Video cable to one of the S-Video connectors on the back of the TV or to the one on the front of the TV beneath the connector cover. Connect the other end of the S-Video cable to the S-Video connector on your DVD player.

  • Page 22: Satellite Receiver Connection

    Satellite Receiver Connection If you’ll also be attaching a VCR to the TV, you need to use a different connection method so you can record TV programs. See “VCR and Satellite Receiver Connection” on page 26. Turn off and unplug your TV and your satellite receiver. Note If your satellite receiver Connect the satellite antenna cable coming into your house to the Satellite In connector...

  • Page 23: Vcr Connection

    VCR Connection Follow these steps to connect a VCR by itself. If you’re connecting a cable, cable box, or satellite receiver along with the VCR, or if you’re connecting two VCRs for tape editing, see the instructions in the sections following this one instead.

  • Page 24: Vcr And Cable Service (without Cable Box) Connection

    VCR and Cable Service (Without Cable Box) Connection Connect the VCR as described in “VCR Connection” on page 23. Connect the cable coming into the house to the IN connector on the VCR. Connect one end of a coaxial cable to the OUT connector on the VCR. Connect the other end of the coaxial cable to the ANT 1 connector on the back of the If your coaxial cable has a screw-type connector on the end, secure it by turning the end clockwise.

  • Page 25: Vcr And Cable Box Connection

    VCR and Cable Box Connection Turn off and unplug your TV, VCR, and cable box. Connect the VCR as described in “VCR Connection” on page 23. Connect the cable line coming into the house to the ANT 1 connector on the back of the Remove the jumper cable connected to both the RF Output and ANT 2 connectors on the back of the TV.

  • Page 26: Vcr And Satellite Receiver Connection

    VCR and Satellite Receiver Connection Note Before connecting a Turn off and unplug your TV, VCR, and satellite receiver. satellite receiver to the TV, be sure to read any Connect the VCR as described in “VCR Connection” on page 23. instructions that came with the receiver.

  • Page 27

    If your satellite service does not include local channels, you can also connect an outside antenna or cable service line to the VHF/UHF IN connector on the VCR. Then connect a coaxial cable to the VHF/UHF OUT connector and to the ANT 1 connector on the back of your TV.

  • Page 28: Audio Receiver Connection

    Audio Receiver Connection Note You can’t connect external Connect one end of a standard, red/white audio cable to the R and L Audio Output speakers to the TV directly; Variable connectors on the back of your TV. you must connect them to an audio receiver and then Connect the other end of the audio cable to the R and L Audio Line Input connectors connect the receiver to...

  • Page 29: Pc Or Game Console Connection

    PC or Game Console Connection For a PC, connect one end of a Dsub15 RGB for PC cable to the monitor or PC output connector on the back of your PC. For a game console, just use the cable that came with the console. Connect the other end of the cable to the PC connector on the front of the TV.

  • Page 30: Camcorder, Digital Camera, Or Other Portable Video Connection

    Camcorder, Digital Camera, or Other Portable Video Connection It’s best to connect a portable video device to the S-Video or Video connector on the front of the TV; however, you can use the connectors on the back. These instructions use a camcorder as an example.

  • Page 31: External Cd-r/rw Drive Connection

    External CD-R/RW Drive Connection Connect the square end of a USB cable to the USB port on your external CD-R/RW drive. Connect the flat end of the USB cable to the EXT. I/F connector on the back of the TV. External CD-R/RW drive...

  • Page 32: Other Optional Device Connections

    Other Optional Device Connections Note Headphones When you connect headphones, the TV Connect headphones to the Headphone connector on the front of the TV. speakers are turned off, but sound is still audible from any audio source you have connected to the TV. Remote IR Repeater Connecting a remote IR repeater lets you control other equipment (such as a VCR or DVD player) by using its remote control pointed at the TV’s remote control receiver on its front...

  • Page 33: Preparing The Remote Control

    Preparing the Remote Control Before you can use the remote control, you need to insert the batteries and make sure you aim it correctly. For a description of the remote control button functions, see the inside front cover of this book. Inserting the Batteries The remote control uses two AA batteries.

  • Page 34: Operating The Remote Control

    Operating the Remote Control Aim the remote control at the front of the TV, within about a 25° horizontal angle to the left or right and a 15° vertical angle up or down from the remote receiver. Make sure the room lighting is not too bright and not shining directly on the remote control or the TV receiver window.

  • Page 35: Plugging In And Turning On The Tv

    Plugging In and Turning On the TV After your video and audio equipment are connected and the remote control is ready, you can plug in and turn on the TV. You may want to turn on your connected equipment and insert a tape or disc, if necessary, to test the TV with all of its video and audio sources.

  • Page 36: Setting The Volume

    If you see a blank screen with No Signal at the bottom: • Turn on the source (VCR, DVD, etc.) • Insert a disc or tape, if you’re viewing one, and press Play Press the TV/Video button to select the source •...

  • Page 37: Selecting The Screen Display Size

    Selecting the Screen Display Size Most TV and video signals determine the size of the image on your screen. You can change the size (called the aspect ratio) by pressing the Aspect button on the remote control. Depending on your signal and input device, you may not be able to change the aspect ratio or be offered all of the selections listed here.

  • Page 38: Selecting The Color Mode

    Selecting the Color Mode Your TV offers three display types (color modes) that are optimized for different room lighting and picture types. You can also create two custom color modes using the TV menu system to fine-tune the picture even further. To select a different color mode, press the Color button on the remote control and select one of these modes: •...

  • Page 39: Setting Up And Controlling Channels

    Setting Up and Controlling Channels Before you use your TV to view television programs, you may need to set up your available channels. You may also want to use the TV’s channel control features or block unwanted viewing of channels or input sources by children, as described in these sections: •...

  • Page 40

    First make sure the correct television source type is selected for Antenna 1 and/or Antenna 2. Select TV for broadcast television via an antenna outside your house. Select CATV for cable television via a cable service line brought into your house. If you need to change the option, press Select d or Select u to highlight the Antenna 1 or Antenna 2 setting, then press Prev <...

  • Page 41: Manually Adding Or Skipping Channels

    Manually Adding or Skipping Channels For channels that are not automatically detected when you use Auto Program, you can use Manual Program to add them. You can also choose to have the TV “skip” certain channels so you don’t have to cycle through them when you change channels. Press Select d to highlight Manual Program, then press Enter.

  • Page 42: Selecting Channels

    Selecting Channels Note If you’re using a cable, To select the channel you want to watch, do one of the following: satellite, or digital TV receiver, you may need to • Enter the channel number using the number keys and press Ch Enter. control your TV channels using the receiver controls.

  • Page 43: Setting Up Parental Controls

    Setting Up Parental Controls You can control access to rated television programs and block access to certain channels and input sources to prevent children or others from viewing unsuitable materials. The person controlling access creates a password that allows him or her to set up, lock, and unlock the parental controls.

  • Page 44

    Then you see the Lock menu. Press Select d to highlight Password Change, then press Enter. You see this screen: Use the number buttons on the remote control to enter a four-digit password. Enter the same password again to confirm it. You return to the Lock menu. To block programs using V-Chip, see page 45.

  • Page 45: Blocking Programs Using V-chip

    Blocking Programs Using V-Chip Your TV is equipped with V-Chip technology that allows you to block the display of TV programs or movies based upon their content rating. You can also block display of programs or movies that don’t carry V-Chip ratings (unrated programs). Whenever you need to change the ratings or remove blocking, you need to enter a password.

  • Page 46

    Press Select d to highlight Country, then press Prev < or Next > to select U.S.A. or Canada. If you want to block access to programs that don’t carry V-Chip ratings, press Select u to highlight Unrated. Then press Prev < or Next > to select Block. To set up V-Chip blocking, press Select u to highlight Rating and press Enter.

  • Page 47

    11 If you selected TV Rating, you see these options: All of the ratings are unblocked by default. Press Select d or Select u to select an Age Based rating. If desired, press Prev < or Next > to select a Content Based rating. Press Enter to block programs with the selected rating and any more mature ratings (–...

  • Page 48

    V-Chip Ratings U.S.A. TV ratings Rating Age-based ratings TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA Content-based ratings - may be combined with age-based ratings U.S.A. Movie ratings Rating PG-13 NC-17 Setting Up and Controlling Channels Description All Children Designed to be appropriate for all children, including ages 2 to 6. Directed to Older Children Designed for children aged 7 and above.

  • Page 49: Blocking Channels And Input Sources

    French ratings (for Canada) Rating Description General Considered appropriate for all age groups. 8 ans+ General for 8 years and older Not appropriate for children under 8 without supervision. 13 ans+ Over 13 years May not be appropriate for children under 13. 16 ans+ Over 16 years May not be appropriate for children under 16.

  • Page 50

    The highlight moves to the first character in the password field: Using the number buttons on the remote control, enter your password. You see the Lock menu: Channel & Game Lock is highlighted. Press Prev < or Next > to select ON. To lock a channel, press Select d to highlight Channel Lock, then press Enter.

  • Page 51: Accessing Blocked Programs, Movies, Channels, And Input Sources

    Press Select d or Select u to highlight the channel number, then press Enter. The highlight moves to the Lock column. Press Prev < or Next > to select Lock or unlock (–). Then press Enter. Repeat steps 7 and 8 to lock any other channels, then press Exit to return to the Lock menu.

  • Page 52: Skipping Unused Input Sources

    If you see one of these screens and you want to access the program, movie, channel, or input source, follow these steps: Press Enter. You see a screen asking you to enter your password. Enter your 4-digit password using the remote control number buttons. The program, movie, channel, or input source is unblocked and the blocking feature is turned off.

  • Page 53: Accessing The Menus

    Using the TV Features Your TV provides many helpful features accessible by the remote control buttons and the menu system, as described in these sections: • “Accessing the Menus” below • “Labelling Your Channels” on page 56 • “Labelling Your Input Sources” on page 58 •...

  • Page 54: Changing Menu Settings

    To move to another menu tab, such as Audio or Channel, press the Next > button. Note The settings you see will be different if the currently When the menu is highlighted, press the Enter button. The first setting is highlighted. selected input source is a PC.

  • Page 55: Changing The Language Of The Menus And Screen Text

    To change a setting like this one: Press Prev < or Next > to select a different setting. The setting is now changed. To change a setting like this one: Press Prev < or Next > to select a higher or lower numbered setting. The setting is now changed.

  • Page 56: Labelling Your Channels

    Labelling Your Channels You may want to label your channels so you can easily identify them by name instead of just by number. The channel label appears with the number in the upper right corner of the screen when you display or switch channels. Press the Menu button on the TV panel or the remote control.

  • Page 57: Selecting A Predefined Label

    Selecting a Predefined Label Press Select d or Select u to highlight the label (such as CBS) in the Edit column. If you don’t see a particular label, press Prev < or Next > to display the next screen. Press Enter. The new label is listed in the Label column and the Channel number is highlighted again.

  • Page 58: Labelling Your Input Sources

    Labelling Your Input Sources It’s helpful to label your input sources if you’re using more than one device with your TV, such as a DVD player, VCR, etc. Then you can easily recognize the devices as you switch between them. The label appears on the TV screen when you display or switch input sources. Press the Menu button on the TV panel or the remote control.

  • Page 59: Select A Predefined Label

    Select a Predefined Label Press Select d or Select u to highlight the label you want. If 1/2 appears in the bottom right corner of the screen, you can press Next > to view more predefined labels on a second screen. (Press Prev < to return to screen 1.) Press Enter.

  • Page 60: Adjusting The Picture Quality

    Adjusting the Picture Quality Note Depending on your input Your TV offers three display types (color modes) that are optimized for different room source, not all of the picture quality adjustments lighting and the picture types. You can also create two custom display types to fine-tune the may be available.

  • Page 61: Adjusting The Brightness, Contrast, Sharpness, Saturation, Tint, And Black Level

    Adjusting the Brightness, Contrast, Sharpness, Saturation, Tint, and Black Level Press Select d or Select u to highlight the setting, then press Enter. The menu disappears and the setting selector appears at the bottom of the screen. Press Prev < or Next > to adjust the setting. Press the buttons repeatedly or hold them down.

  • Page 62: Switching The Component Video Image Quality Setting

    The menu disappears and a position selector appears on your image: Note To change the screen position, you must be projecting an image on the screen. To position the image on the screen, press Select d, Select u, Prev <, or Next > as necessary.

  • Page 63: Adjusting The Screen Display Size

    Adjusting the Screen Display Size Most TV and video signals determine the size of the image on your screen. You can change the size (called the aspect ratio) by pressing the Aspect button on the remote control. You can select the aspect ratio you’d like the TV to use if your TV is ever unable to detect an aspect ratio from your TV or video input signal by changing the Auto Aspect setting in the Setting menu.

  • Page 64: Adjusting The Sound

    • • Press Exit to select another menu or press Menu to exit the menu system. Adjusting the Sound If you want to adjust the bass, treble, or balance of the sound from your TV speakers, you can change the Audio settings in the menu system. You can also turn off the TV speakers. Note If you just want to To turn the simulated Surround feature on or off, press the Surround button on the remote...

  • Page 65: Selecting Closed Caption Display

    Press Enter. The menu disappears and the setting selector appears on the bottom of the screen. Press Prev < or Next > to move the setting higher or lower. Press the buttons repeatedly or hold them down. The current setting bar moves and the setting number changes, but the default setting marker stays in position.

  • Page 66: Selecting Audio Mode Options

    Press Prev < or Next > to select one of the following options: Note Not all the closed caption CC1, CC2, CC3, or CC4 modes may be available Displays closed captions of the program’s dialogue and sound effects. for your program. Select CC1 or TEXT1 first to see if they work.

  • Page 67

    The image from the first source appears on the left and the image from the second source appears on the right. (If you’re watching a TV station and have no second video source running, the next TV channel is automatically selected as the second source.) First source The red outline indicates the currently selected source.

  • Page 68: Using Channel Zapping

    To resize the POP windows, press Swap to select the source, then press Next > to • Note If you’re viewing the Photo enlarge its window or Prev. < to reduce it. The size of the other window is also adjusted viewer in the right POP to fit the screen, as shown below.

  • Page 69: Zapping Channels

    Press Next > to highlight Channel, then press Enter. Press Select d to highlight Use of Ant. 2, then press Next > to select OFF. Press Menu to exit the menu system. Zapping Channels The first channel you select in channel zapping is the main channel. You’ll only be able to hear the audio from this channel, so select the channel you’d like to listen to first.

  • Page 70: Automatically Shutting Off The Tv

    Here’s how to control the zapped channels: To view the zapped channel at the top as your main channel on the left, press the Swap • button. To make the next zapped channel your main zapped channel, press Ch + or Select u. •...

  • Page 71: Controlling Other Equipment With The Remote Control

    Press Select d to highlight Auto Shutdown. Press Prev. < or Next > to select ON. Press Menu to exit the menu system. If there is no signal input after 30 minutes, the TV shuts off. Controlling Other Equipment with the Remote Control You can use the TV’s remote control to select functions on your other home theater equipment, such as your DVD player, VCR, or satellite receiver.

  • Page 72: Remote Control Programming Codes

    Remote Control Programming Codes DVD manufacturer’s codes Manufacturer Aiwa Denon Funai Harmon/Kardon Hitachi Kenwood Konka Magnavox Mitsubishi Onkyo Panasonic VCR manufacturer’s codes Manufacturer Admiral Advanture Aiko Aiwa Akai American High Asha Audio Dynamic Audiovox Bell & Howell Beaunmark Broksonic Calix Candle Canon Carver...

  • Page 73

    VCR manufacturer’s codes (continued) Manufacturer Code 333, 346 Citizen 310, 314, 319, 329, 346 Colortyme Colt Craig 313, 319, 329, 333 Curtis Mathes 305, 308, 310, 328, 329, 336, 351, 366 Cybernex Daewoo 312, 314, 328, 336, 338, 308, 310, 343, 354 Dimensia Synatech Electrohome...

  • Page 74

    VCR manufacturer’s codes (continued) Manufacturer Hitachi Hi-Q Instant Replay JC Penney Jensen Kenwood Kodak LG / Goldstar Lloyd Logik LXI (Sears) Magnavox Magnin Marantz Marta Matsushita Memorex MGA (Mitsubishi) MGN Tech Midland Minolta Using the TV Features Code Manufacturer 316, 331, 332, 351, 353 Singer 313, 314 Sony...

  • Page 75

    Satellite receiver manufacturer’s codes Manufacturer Code Alphastar Echostar 213, 214 210, 211, 212 Hitachi 203, 204 Hughes Magnavox Panasonic Cable box manufacturer’s codes Manufacturer Code 118, 119, 120, 121, 129, Color Voice 103, 104 Contec Garrod 117, 118, 119, 120, 121, 122, 123, 124, 129 Gemini 112, 123...

  • Page 76: Using The Programmed Remote Control With Your Other Equipment

    Using the Programmed Remote Control with Your Other Equipment Equipment switch Once you’ve programmed the remote control, follow these steps to use it to control your other equipment: Control Slide the switch at the top of the remote control to the type of equipment you want to buttons control, such as DVD.

  • Page 77: Viewing, Printing, And Saving Photos

    Viewing, Printing, and Saving Photos You can use the digital photo card slots and printer built into your TV, and on the external CD-R/RW drive, to view, print, and save digital photos, as described in these sections: • “Viewing Photos on a Digital Photo Card or CD” below •...

  • Page 78

    • The photo files must contain a time stamp, so the slide show can display the files in time Caution Don’t remove a card from stamp order. the slot when the Card light is flashing or you may • The photo files should contain thumbnail data, such as that included in Exif format damage the card.

  • Page 79

    After a few seconds, the Photo screen appears. It displays the photos on your card and outlines the first one in gold: Selected photo If you inserted more than one photo card, the photos on the card you inserted first appear on the screen.

  • Page 80: Inserting A Cd

    Inserting a CD Before you view photos on a CD, make sure you’ve connected the external CD-R/RW drive that came with your TV. See page 31 for instructions. If you create a CD-R/RW of your photos using a computer, make sure that you use the file structure and naming conventions defined in the DCF standard so the Photo viewer can display your photos.

  • Page 81

    Place your CD-R/RW on the tray with the label side facing up. Make sure the disc lays flat in the tray. Press the eject button again to close the tray. Press the Photo View button on the TV panel or remote control. The Photo screen appears: Press the 1 button.

  • Page 82

    Press Select d to highlight CD-R/RW (if necessary) and press Enter. You see the CD folders in the Photo View screen: Note If you don’t see your folders, your drive may not be ready. Wait a moment and repeat step 6. If you still don’t see your folders, your disc may contain the wrong folder or...

  • Page 83: Enlarging And Rotating The Photos

    Enlarging and Rotating the Photos You can enlarge the photos so that each one fills the screen for easy viewing. You can also rotate a photo so you can view it correctly. The rotation position is retained until you remove the card or CD.

  • Page 84: Viewing A Slide Show

    Viewing a Slide Show Note To move between the You can view your photos automatically, for a few seconds each, by running a slide show. You Menu and Slide Show sides can view all the photos or just selected ones. of the screen, just press Menu.

  • Page 85

    Press Prev. <, Next >, Select d, or Select u to highlight the photos you don’t want to include, then press Enter to deselect them. (To select them again, press Enter again.) When you’re ready to run the slide show, press the 2 button, then press Enter to select View Slide Show.

  • Page 86: Freezing An Image For Printing

    Freezing an Image for Printing You can “freeze” and print any video image that you see on your TV screen, such as scene in a movie or sporting event on TV (except from sources connected to the DVI or PC port). Then you can print the image, if you like.

  • Page 87

    To print the currently displayed image, press the Print button on the TV panel or remote control. You see the Print Settings screen. (The current program or video image keeps running on the right.) To select the number of printed copies you want, press Prev. < or Next >. Press Enter.

  • Page 88: Changing The Capture Settings

    Changing the Capture Settings If you’re freezing images containing text or images from a DVD player that uses progressive output, you may get better results by changing the capture method, as described below. Press the Freeze button. Press Select d to highlight Capture settings and press Enter. You see the Capture Settings screen: To change the aspect ratio of the image you’re freezing, press Enter.

  • Page 89: Printing Photos

    You can purchase Photo Printing Packet number ELSPP50 containing 50 sheets of paper and an ink cassette from your dealer or EPSON. Call (800) 873-7766 or visit the EPSON Store at www.epsonstore.com (U.S. sales only). In Canada, please call (800) 463-7766 for dealer referral.

  • Page 90

    Grasp the paper cassette and pull it all the way out of the printer. Open the paper cassette lid. Viewing, Printing, and Saving Photos...

  • Page 91

    You can load up to 20 sheets of paper. Position the paper with the shiny side face up, with the wide bordered edge facing the hinge of the cassette, and the narrow bordered end facing the open end of the cassette. Shiny side up Close the cassette lid and press it until it clicks shut.

  • Page 92: Selecting A Photo And Printing It

    Slide the cassette into its slot, open end first. Push it in until it clicks into place. Close the printer cover. Selecting a Photo and Printing It Caution Don’t remove a card from You can print one photo at a time from a digital photo card or CD-R/RW. the slot while you’re printing or you may If you haven’t yet inserted your photo card or CD, insert it.

  • Page 93

    Press the Print button on the TV panel or remote control. You see the Print Settings screen: To print one copy of the photo, press Enter. To print multiple copies, press Prev. < or Next > until the number in the Copies box is correct.

  • Page 94: Monitoring Or Cancelling Your Print Jobs

    Monitoring or Cancelling Your Print Jobs Once you send a photo for printing, you can monitor its progress or cancel it. Press the 4 button. (Or press Menu, press Select d to highlight Print Monitor, and press Enter.) The Print Monitor menu opens. To monitor your print jobs, press Enter to choose Select Print Job.

  • Page 95: Saving Photos To Cd

    Cancelling an Individual Print Job Press Prev. <, Next >, Select d, or Select u to highlight the job and press Enter. You see the Printing or Waiting screen: Press Select u to highlight Cancel and press Enter. (If the print job has finished before you could cancel it, press Select d to highlight Exit and press Enter.) Select Yes on the next screen.

  • Page 96: Inserting A Cd-r/rw

    Inserting a CD-R/RW Caution Don’t insert a CD-R/RW disc Press the eject button on the drive to open the tray. that has been written to by a computer or other source Place a new, blank CD-R/RW disc on the tray with the label side facing up. Make sure the or you may lose your photos or other data.

  • Page 97

    You see a writing confirmation message while your photos are written to the CD and the drive light flashes. When it’s finished, the CD tray opens and you see a completion message. Press Enter. Selecting Photos for Writing to CD-R/RW To select only some of your photos for writing to CD, press the 3 button, Select d to highlight Select individually, and press Enter.

  • Page 98

    Viewing, Printing, and Saving Photos...

  • Page 99: Caring For The Tv

    Caring For the TV To keep your TV clean and operating correctly, or to move it to another location, follow the steps in these sections: • “Cleaning the TV” below • “Cleaning the Air Filter” below • “Replacing the TV Projection Lamp” on page 101 •...

  • Page 100

    Use a small, hand-held vacuum to remove dust from both sides of the vent cover. To replace the vent cover, insert the tabs on the back into the right side of the vent opening. Then press in the left side of the vent cover. Caring For the TV...

  • Page 101: Replacing The Tv Projection Lamp

    The Lamp and Power lights on the front of the TV also indicate the status of the lamp. You can purchase replacement lamp number ELSLP1 from your dealer or EPSON. Call (800) 873-7766 or visit the EPSON Store at www.epsonstore.com (U.S. sales only). In Canada, please call (800) 463-7766 for dealer referral Don’t replace the lamp unless you see a screen message or the Lamp and Power lights...

  • Page 102: Lamp Replacement Precautions

    Lamp Replacement Precautions • Never touch the projection lamp immediately after turning off the TV or you could be burned.Wait at least 30 minutes after turning off the TV to let the lamp cool down completely. • If the lamp has broken, handle the shards carefully to avoid injury. •...

  • Page 103

    On the front of the TV, push in the latch on the lamp cover, then pull off the cover and set it aside. Use the screwdriver that came with the replacement lamp to loosen the two screws in the corners of the lamp housing. (You can’t remove the screws.) Grasp the handle on the lamp and pull it out of the TV.

  • Page 104

    Position the new lamp as shown below. Then slide it carefully into the lamp slot until it stops. Tighten the screws in the corners of the lamp housing. Insert the tabs on the lamp cover into the right side of the opening. Then push in the left side to close the cover.

  • Page 105: Replacing The Printer Ink Cassette

    Make sure you have a new ink cassette before you begin. You can purchase Photo Printing Packet number ELSPP50 containing 50 sheets of paper and an ink cassette from your dealer or EPSON. Call (800) 873-7766 or visit the EPSON Store at www.epsonstore.com (U.S. sales only). In Canada, please call (800) 463-7766 for dealer referral.

  • Page 106

    Flip down the printer lock cover. Turn the printer lock counterclockwise to loosen it. It spins freely when it is unlocked. Caring For the TV...

  • Page 107: Removing And Replacing The Ink Cassette

    Grasp the printer handle and pull the printer out as far as it goes. Removing and Replacing the Ink Cassette Pull open the ink cover on the side of the printer. Caring For the TV...

  • Page 108

    Lift up the ink cassette latch, then carefully pull out the cassette. Remove the new cassette from its package. Then remove the red paper strip from the end. Caution If the ink ribbon catches in If the ink ribbon is slack, rotate the spindles to tighten it. the opening, carefully adjust it so it doesn’t tear.

  • Page 109

    Position the cassette as shown below. Then carefully align the cassette and its ribbon with with the cassette slot. Once it is aligned, gently push the cassette into the slot until it clicks into place beneath the latch. Pointed plastic tab should face up Covered ends of the ribbon should face out...

  • Page 110: Sliding The Printer Back In

    Flip up the ink cover and push it closed. Sliding the Printer Back In Slide in the printer until it stops. If the printer catches on the opened printer door beneath it, gently hold the cover down and out of the way as you slide the printer in. Push in on the printer lock as you turn it clockwise to tighten it.

  • Page 111: Moving Or Transporting The Tv

    Flip up the lock cover. Close the printer cover. If you see any error messages when you print, you may need to reinstall the ink cassette. Carefully follow the steps in this section to reinstall it. Moving or Transporting the TV When moving the TV, have two people grasp the TV as shown below.

  • Page 112

    Caring For the TV...

  • Page 113: Solving Problems

    TV and that none of the ventilation slots are obstructed. If necessary, clean the TV’s air filter, as described on page 99. Then turn the TV back on. If it continues to overheat, contact EPSON as described on page 124.

  • Page 114: Responding To Tv Panel Light Indicators

    TV, plug it back in, Power and press the persists, contact EPSON as described on page 124. High temperature warning The TV is overheating and the lamp is turned off automatically. Turn off the TV and let it cool for a few minutes. Make sure there is plenty of space around the TV and that none of the ventilation slots are obstructed.

  • Page 115

    Status Internal error The TV has an internal problem. Press the off the TV and then unplug it. Contact EPSON as described on page 124. Fan or temperature sensor error The cooling fan or temperature sensor has a problem. Press the Power button to turn off the TV and then unplug it.

  • Page 116: Basic Operation Problems

    Basic Operation Problems Problem The power won’t come on. The buttons on the TV panel don’t work. The TV’s fan keeps running when the TV is turned off. You forgot the password you set Picture Problems Problem You don’t see a picture or hear any sound.

  • Page 117: Sound Problems

    Check the equipment you connected to make sure you selected the correct settings for sending images to the TV. If the color is uneven in all the corners of the image, your TV may have an internal problem. Contact EPSON for more information. The picture is dark. Press the follow the steps on page 60 to adjust the brightness and other picture settings.

  • Page 118: Tv Reception Or Operation Problems

    TV Reception or Operation Problems Problem TV reception is poor. The TV channels can’t be changed or selected. You can’t receive a digital broadcast. Light Equipment switch Remote Control Problems Problem The remote control doesn’t work. Solving Problems Solution Check your antenna, cable, or digital or satellite receiver connections.

  • Page 119: Problems Viewing Photos From Cards Or Discs

    If the error message contains an error code, write down the code number and contact EPSON as described below. If loading paper or ink, locking the printer, or closing its door doesn’t solve the problem, try the solutions listed here.

  • Page 120: Clearing A Paper Jam From The Back Of The Printer

    Clearing a Paper Jam From the Back of the Printer Press and release the printer cover latch to open the cover. Flip down the printer lock cover. Solving Problems...

  • Page 121

    Turn the printer lock counterclockwise to loosen it. It spins freely when it is unlocked. Grasp the printer handle and pull the printer out as far as it goes. Solving Problems...

  • Page 122

    Use a Phillips-head screwdriver with a shaft at least 6 inches long to loosen the 2 screws securing the printer on each side, as shown below. Lift up the front of the printer slightly and slide it forward off of its guiderails until you can access the back of the printer.

  • Page 123

    Slide the printer back onto its guiderails and align the screws with the screw holes on each side. 10 Tighten the screws securely. 11 Slide in the printer until it stops. If the printer catches on the opened printer door beneath it, gently hold the cover down and out of the way as you slide the printer in.

  • Page 124: Problems Saving Photos To A Cd-r/rw

    CD-R/RW with your TV. Where to Get Help EPSON provides technical assistance through the World Wide Web 24 hours a day. From the Internet, you can reach EPSON’s product support page at http://support.epson.com. After selecting your product, you can access troubleshooting information, download product documentation, and receive technical advice through e-mail.

  • Page 125: Specifications

    UHF: 14 - 69 CATV: 1 - 125 Screen and Display Screen size LS47P1: 47 inches (119.4 cm) LS57P1: 57 inches (144.8 cm) LCD panel 3 TFT panels with approximately 2.76 million dots total (1280 × 720 × 3) Lamp Short-arc, UHE (Ultra High Efficiency), 100 W;...

  • Page 126: Environmental

    Environmental Operating temperature Storage temperature Operating humidity Interfaces Input interfaces Video IN S-Video IN Component Video IN RF IN (Antenna) Computer (RGB) Audio IN Output interfaces Video OUT Audio OUT (Variable) Audio OUT (Fixed) RF OUT Headphone Remote External interfaces Serial Memory card Specifications...

  • Page 127: Printer

    4 × 6 inches (10.2 × 15.2 cm) Paper capacity 20 sheets Print speed 110 seconds per sheet Options TV stand For LS47P1: LS47STD For LS57P1: LS57STD Replacement lamp ELSLP1 IR repeater Recommend Xantech 282 or 283 M emitter Printer pack 50 sheets, 4 ×...

  • Page 128

    Specifications...

  • Page 129: Notices

    Notices FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception.

  • Page 130: Energy Star Compliance

    ENERGY STAR Compliance As an ENERGY STAR Partner, EPSON has determined that this product meets the ENERGY STAR guidelines for energy efficiency. Note on Closed Captioning This television receiver provides display of television closed captioning in accordance with §15.119 of the FCC rules.

  • Page 131: Index

    Index Adding channels, 41 Air filter, cleaning, 99 to 100 Antenna connecting, 15 grounding, 10 satellite, 22 Antenna 1/2 settings, 39 to 40, 68 to 69 Aspect button, 37, 63 Aspect ratio changing screen, 37 for frozen images, 88 setting default, 63 to 64 Audio default settings, 64 to 65 problems, 117...

  • Page 132

    CD-R/RW drive cable connection, 31 inserting CD in, 80 to 82 Channel zapping, 45, 68 to 70 Channel(s) adding, 41 Auto Program setting, 39 to 40 blocking, 49 to 51 buttons, 42 favorite, 42 labelling, 56 to 57 Lock setting, 49 to 51 Manual Program setting, 41 menu, 56 to 57, 68 to 69 problems, 118...

  • Page 133

    Headphones cable connection, 32 volume, 36 Ink cassette problems, 119 replacing, 105 to 111 Input source blocking, 49 to 51 labelling, 58 to 59 skipping unused, 52 Interface specifications, 126 Jammed paper, clearing, 119 to 123 JPEG format, 77, 80 Jumper cable, 68 Labelling channels, 56 to 57...

  • Page 134

    Photo(s) enlarging, 83 on CD, 80 to 82 on photo card, 77 to 79 printing, 89 to 95 problems, 119 rotating, 83 saving, 95 to 97 slide show, 84 to 85 viewing, 77 to 85, 97 Picture quality adjusting, 60 to 62 problems, 116 to 117 Picture-Outside-Picture (POP), 66 to 68, 69 to 70 Playback setting, 85...

  • Page 135

    Saving photos to CD-R/RW, 95 to 97, 124 Screen aspect ratio, 37, 63 to 64 cleaning, 99 display size, setting, 37, 63 to 64 display type, setting, 38 error messages, 93, 113 freezing images, see Freezing images picture quality, 60 to 62 position setting, 60 to 62 problems, 116 to 117 Setting menu, 52, 55, 58 to 59, 65 to 66, 70 to 71...

  • Page 136

    TV (continued) shelf, 12 to 13 shipping, 111 shutting off automatically, 70 to 71 sleep mode, 70 to 71 stands, 11 to 12, 111 supports, 11 to 12, 111 transporting, 111 turning off, 38 turning on, 35 to 36 usage notification, 130 viewing position, 11 weight, 125 TV/Video button, 35 to 36, 66...

  • Page 137

    Remote Control Map Button Power Equipment selection switch and control buttons Photo View Freeze Print Menu Exit Select u and Select d Prev. < and Next > Enter Photo Zoom (+ and -) Rotate Number buttons Ch Prev. Ch Enter TV/Video Note Some of these buttons are...

  • Page 138

    For DVD, VCR, Satellite, and other video and audio input devices that use component video. (Y 1, 2; PB 1, 2; PR 1, 2; and Audio L/R 1, 2) Serial For use only by your EPSON servicer. EXT. I/F For an external CD-R/RW drive only. (external interface; USB)

Comments to this Manuals

Symbols: 0
Latest comments:
