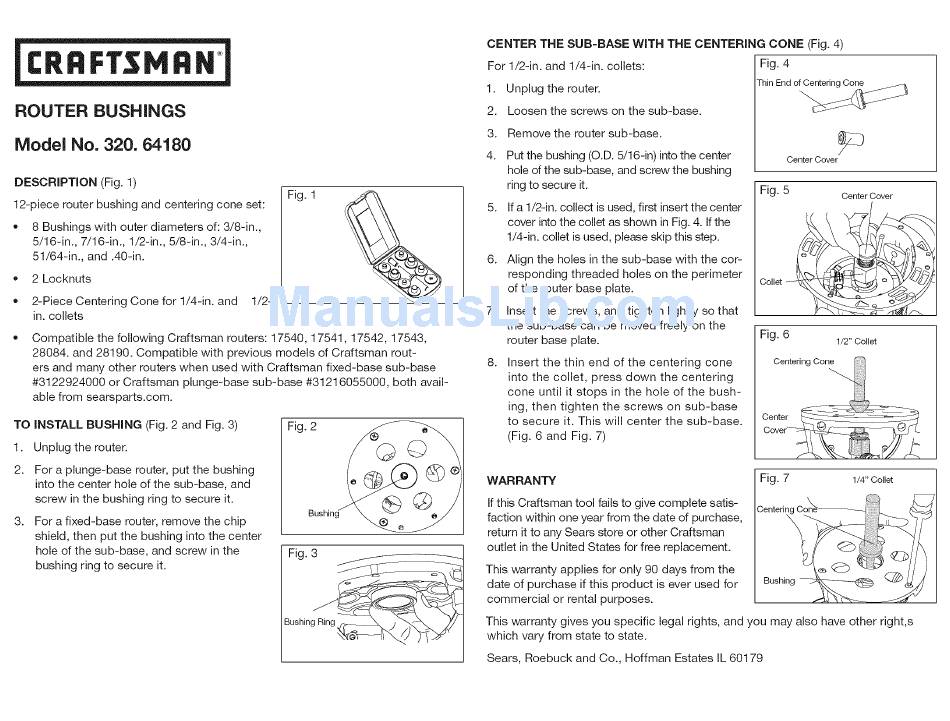

ROUTER BUSHINGS
Model No. 320. 64180
DESCRIPTION

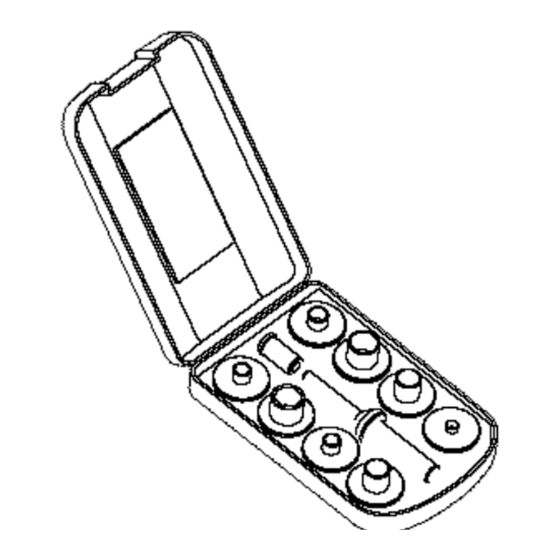

(Fig. 1)
12-piece router bushing and centering cone set:
8 Bushings with outer diameters
of: 3/8-in.,
5/16-in., 7/16-in.,
1/2-in., 5/8-in., 3/4-in.,
51/64-in.,
and .40-in.
o
2 Locknuts
2-Piece Centering Cone for 1/4-in. and
1/2-
in. collets
Fig. 1
Compatible
the following Craftsman
routers: 17540, 17541, 17542, 17543,
28084. and 28190. Compatible
with previous models of Craftsman
rout-
ers and many other routers when used with Craftsman
fixed-base
sub-base
#3122924000
or Craftsman
plunge-base
sub-base
#31216055000,
both avail-
able from searsparts.com.
TO INSTALL
BUSHING
(Fig. 2 and Fig. 3)
1. Unplug the router.
2.
For a plunge-base
router, put the bushing
into the center hole of the sub-base,
and
screw in the bushing ring to secure it.
3.
For a fixed-base
router, remove the chip
shield, then put the bushing into the center
hole of the sub-base,
and screw in the
bushing ring to secure it.
Fig. 2
Fig. 3
Bushing Ring
CENTER THE SUB=BASE
WiTH THE CENTERING
CONE (Fig. 4)
For 1/2-in. and 1/4-in. collets:
Fig. 4
2.
3.
4.
Unplug the router.
Loosen the screws on the sub-base.
Remove the router sub-base.
Put the bushing (O.D. 5/16-in) into the center
hole of the sub-base, and screw the bushing
ring to secure it.
5. If a 1/2-in. collect is used, first insert the center
cover into the collet as shown in Fig. 4. If the
1/4-in. collet is used, please skip this step.
6.
Align the holes in the sub-base
with the cor-
responding
threaded
holes on the perimeter
of the router base plate.
7.
Insert the screws, and tighten lightly so that
the sub-base
can be moved freely on the
router base plate.
8.
Insert the thin end of the centering
cone
into the collet,
press down the centering
cone until it stops in the hole of the bush-
ing, then tighten
the screws
on sub-base
to secure it. This will center the sub-base.
(Fig. 6 and Fig. 7)
Thin End of Centering Cone
Center Cover
Fig. 5
Collet _
Center Cover
Fig. 6
1/2" Collet
WARRANTY
Fig. 7
1/4"collet
If this Craftsman tool fails to give complete satis-
faction within one year from the date of purchase,
return it to any Sears store or other Craftsman
outlet in the United States for free replacement.
This warranty applies for only 90 days from the
date of purchase if this product is ever used for
Bushing
commercial
or rental purposes.
This warranty gives you specific
legal rights, and you may also have other right,s
which vary from state to state.
Sears, Roebuck and Co., Hoffman
Estates IL 60179
