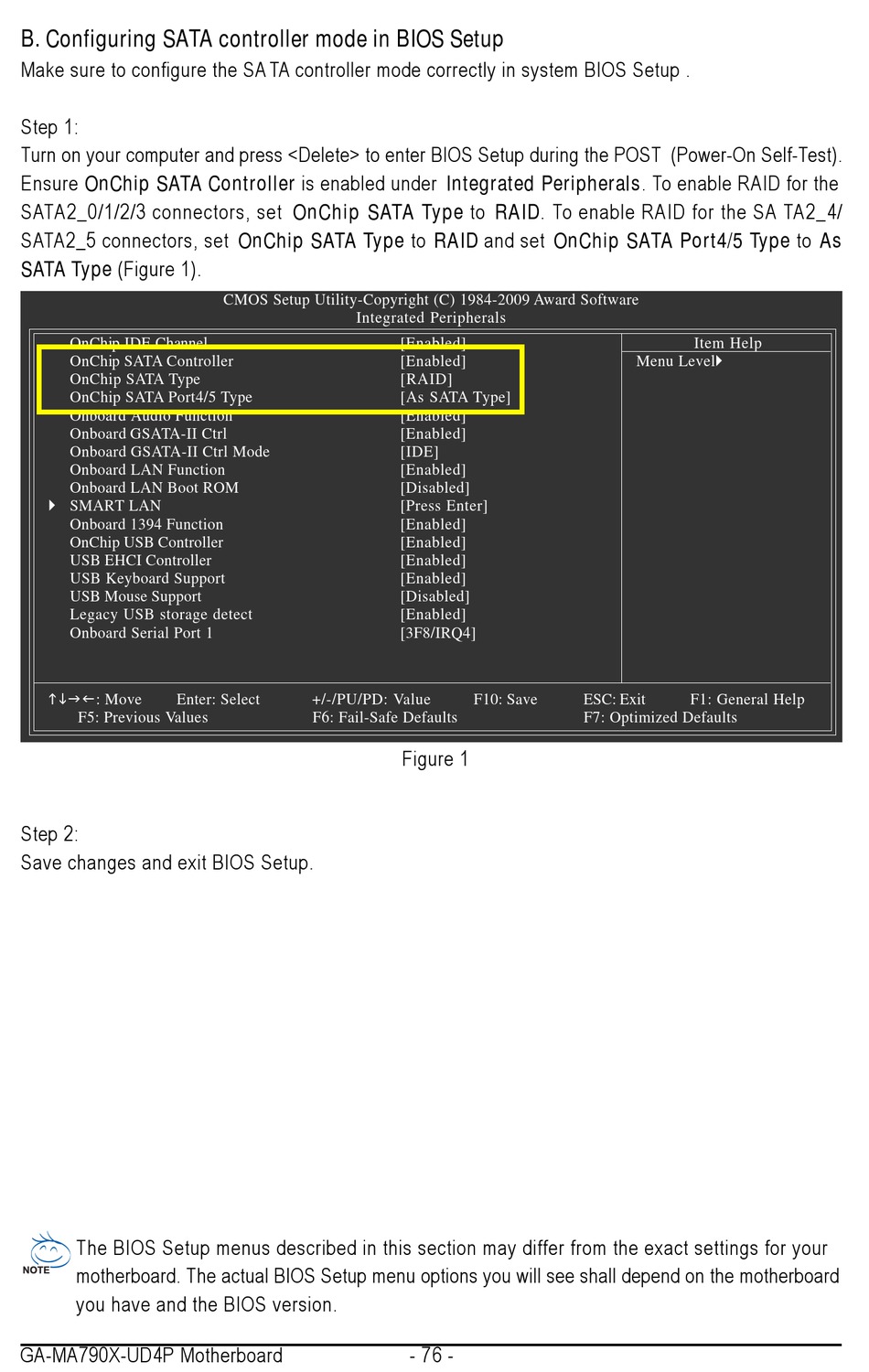

B. Configuring SATA controller mode in BIOS Setup
Make sure to configure the SA TA controller mode correctly in system BIOS Setup .
Step 1:
Turn on your computer and press <Delete> to enter BIOS Setup during the POST (Power-On Self-Test).
Ensure OnChip SATA Controller is enabled under Integrated Peripherals. To enable RAID for the
SATA2_0/1/2/3 connectors, set OnChip SATA Type to RAID. To enable RAID for the SA TA2_4/
SATA2_5 connectors, set OnChip SATA Type to RAID and set OnChip SATA Port4/5 Type to As
SATA Type (Figure 1).
OnChip IDE Channel
OnChip SATA Controller
OnChip SATA Type
OnChip SATA Port4/5 Type
Onboard Audio Function
Onboard GSATA-II Ctrl
Onboard GSATA-II Ctrl Mode
Onboard LAN Function
Onboard LAN Boot ROM
 SMART LAN
Onboard 1394 Function
OnChip USB Controller
USB EHCI Controller
USB Keyboard Support
USB Mouse Support
Legacy USB storage detect
Onboard Serial Port 1
: Move
Enter: Select
F5: Previous Values
Step 2:
Save changes and exit BIOS Setup.
The BIOS Setup menus described in this section may differ from the exact settings for your
motherboard. The actual BIOS Setup menu options you will see shall depend on the motherboard
you have and the BIOS version.
GA-MA790X-UD4P Motherboard
CMOS Setup Utility-Copyright (C) 1984-2009 Award Software
Integrated Peripherals
+/-/PU/PD: Value
F6: Fail-Safe Defaults
[Enabled]
[Enabled]
[RAID]
[As SATA Type]
[Enabled]
[Enabled]
[IDE]
[Enabled]
[Disabled]
[Press Enter]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Disabled]
[Enabled]
[3F8/IRQ4]
F10: Save
Figure 1
- 76 -
Item Help
Menu Level
ESC: Exit F1: General Help
F7: Optimized Defaults
