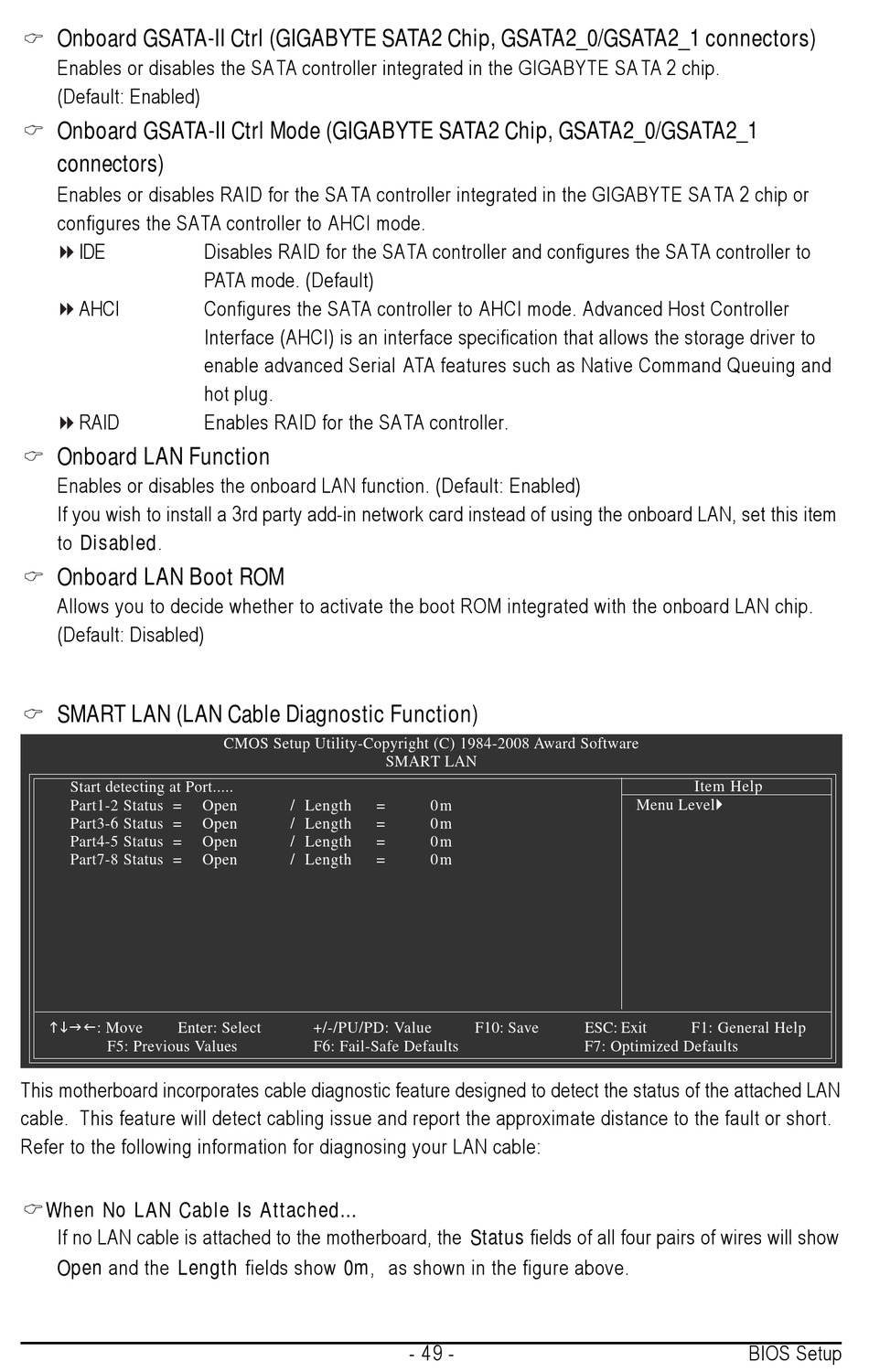

Onboard GSATA-II Ctrl (GIGABYTE SATA2 Chip, GSATA2_0/GSATA2_1 connectors)
Enables or disables the SATA controller integrated in the GIGABYTE SA TA 2 chip.
(Default: Enabled)
Onboard GSATA-II Ctrl Mode (GIGABYTE SATA2 Chip, GSATA2_0/GSATA2_1
connectors)
Enables or disables RAID for the SA TA controller integrated in the GIGABYTE SA TA 2 chip or
configures the SATA controller to AHCI mode.
IDE
AHCI
RAID
Onboard LAN Function
Enables or disables the onboard LAN function. (Default: Enabled)
If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item
to Disabled.
Onboard LAN Boot ROM
Allows you to decide whether to activate the boot ROM integrated with the onboard LAN chip.
(Default: Disabled)
SMART LAN (LAN Cable Diagnostic Function)
Start detecting at Port.....
Part1-2 Status =
Part3-6 Status =
Part4-5 Status =
Part7-8 Status =
: Move
Enter: Select
F5: Previous Values
This motherboard incorporates cable diagnostic feature designed to detect the status of the attached LAN
cable. This feature will detect cabling issue and report the approximate distance to the fault or short.
Refer to the following information for diagnosing your LAN cable:
When No LAN Cable Is Attached...
If no LAN cable is attached to the motherboard, the Status fields of all four pairs of wires will show
Open and the Length fields show 0m, as shown in the figure above.
Disables RAID for the SATA controller and configures the SATA controller to
PATA mode. (Default)
Configures the SATA controller to AHCI mode. Advanced Host Controller
Interface (AHCI) is an interface specification that allows the storage driver to
enable advanced Serial ATA features such as Native Command Queuing and
hot plug.
Enables RAID for the SATA controller.
