Summary of Contents for Carrier TP-NHP

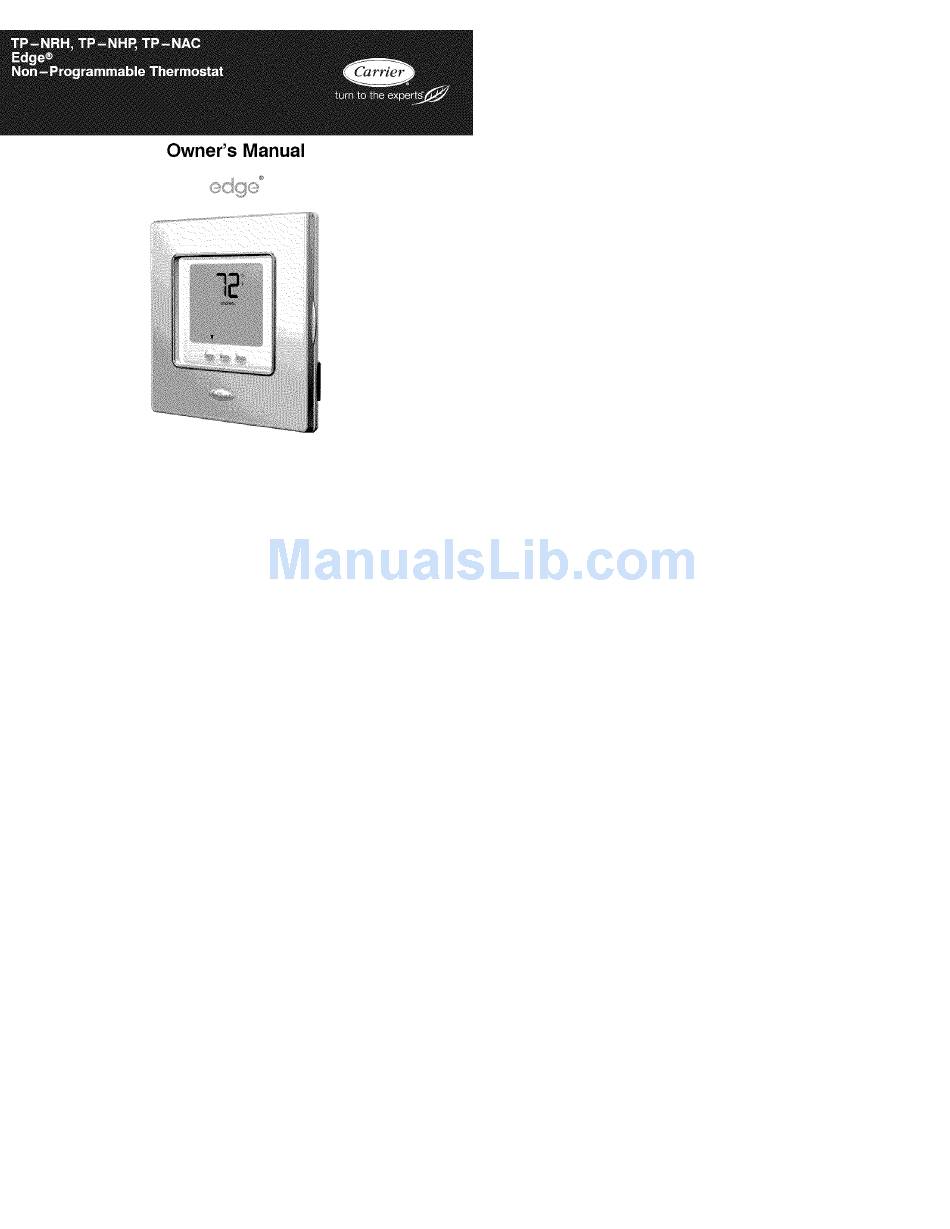

  • Page 1 Owner's Manual...

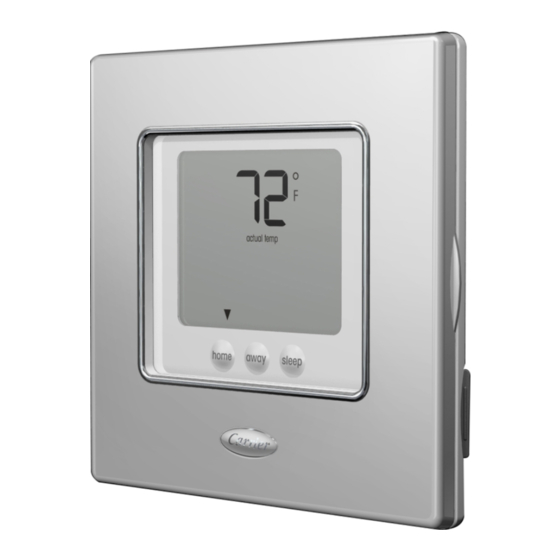

  • Page 2 YOU WILL LOVE THIS THERMOSTAT. You have the Edge _) thermostat. This unique device's state-of-the-art technology makes it easier than ever for you to keep your home comfortable. with ultra-thin profile a selection of attractive faceplates, it is easily most decorator-friendly thermostat available.
  • Page 3 TABLE OF CONTENTS BUTFON IDENTIFICATION ........ON-SCREEN INDICATORS ......... QUICK START Setting or changing the temperatures for heating and cooling ....Understanding Touch ........OPERATING THE THERMOSTAT Using the Touch Go feature ........Setting the home temperature ........Setting the away temperature ........
  • Page 4 TABLE OF CONTENTS Using normal humidify .......... Using auto humidify ..........How to turn off the humidify or dehumidify feature ....Using emergency heat (heat pump systems only) ...... Using the thermostat to turn the heating and cooling system ... ADVANCED OPTIONS Advanced...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS SPECIAL FEATURES Hybrid Heat (heat pump systems only) ....... Service reminders ..........Outdoor temperature display ........Auto changeover ..........WHAT IF... "Aux heat on" is displayed (heat pump systems only) ...."Em heat" is displayed (heat pump systems only) ......

  • Page 6: Service Reminders

    TABLE OF CONTENTS COMMON TERMS AND WHERE TO FIND THEM Auto changeover ..........Auxiliary heat (heat pump systems only) ......Backlighting ........... Dehumidify ............ Emergency heat (heat pump systems only) ......Hybrid heat ............ Humidify ............Mode ............Service reminders ..........
  • Page 7 BUTTON IDENTIFICATION Em00_ ÷--© heat mode oux,_,_ _0_,_0m_ Joo_oo, heat J_j_j outsidetemp] dehumidify setat checkUVlight checkfiker auto checkhumpad ,, ?\...
  • Page 8 BUTTON IDENTIFICATION Selects whether the fan operates continuously (on) or only when needed for heating or cooling (auto) MODE Selects whether thermostat is set for heating, cooling, emergency heat. auto (heat and cool as needed), or off Increases the temperature or adjusts the screen selection...

  • Page 9: On-Screen Indicators

    ON-SCREEN INDICATORS © © features done...
  • Page 10 ON-SCREEN INDICATORS 1. Programming option: indicates which settings are being adjusted 2. Fan mode - on or auto 3. Filter, UV lamp, humidifier pad reminders 4. Indicates whether setting humidify or dehumidify preferences 5. System is in auxiliary (supplemental) mode 6.
  • Page 11 QUICK START Setting or changing the temperatures for heating cooling Your thermostat is installed with pre-set heating and cooling temperature settings, You can use these or change them so your home is as warm or as cool as you would like it to be, These steps will hold the temperature...

  • Page 12: Understanding Touch 'N' Go

    QUICK START Understanding Touch The unique Touch 'N' Go feature on your thermostat is a revolutionary tool that lets you use a simpler programming option - literally, touch and go - to help you get the maximum comfort control from the entire comfort system.

  • Page 13: Using The Touch 'N' Go Feature

    OPERATING THE THERMOSTAT Using the Touch feature The Touch 'N' Go feature on your thermostat involves the homo, away and sloop buttons immediately under the display. You can either accept the preset temperature settings for when are home, away or asleep, or set your own Touch heating...
  • Page 14 OPERATING THE THERMOSTAT Use this blank grid to determine how warm or cool you want your home to be when you're home. away or asleep. Home Away Sleep...

  • Page 15: Setting The Home Temperature

    OPERATING THE THERMOSTAT Setting the home temperature 1. Open the door. 2. Press the home button located under the display on the o_------_o left. You will see a triangle icon above the home o_jo button. This icon will always tell you whether you're the home, away...
  • Page 16 OPERATING THE THERMOSTAT 8. Press the up or down button until you reach the desired temperature setting. 9. Press and hold the home button for about three seconds. The home arrow will be displayed, indicating that the thermostat has saved your settings.

  • Page 17: Setting The Away Temperature

    OPERATING THE THERMOSTAT Setting the away temperature 1. Press the away button located under the display in the ot_to center. You will see a triangle icon (V) above the away button. 2. You will see the heating cooling temperatures that were set at the factory.
  • Page 18 OPERATING THE THERMOSTAT 7. Press the up or down button until you reach the desired temperature set- ting. 8. Press hold the away button for about three seconds. The away arrow will be displayed, indicating that the thermostat has saved your settings.

  • Page 19: Setting The Sleep Temperature

    OPERATING THE THERMOSTAT Setting the sleep temperature 1. Press the sleep button located under the display in the ot_Io center. You will see a triangle icon above the sleep o_jo button. 2. You will see the heating cooling temperatures that were set at the factory.
  • Page 20 OPERATING THE THERMOSTAT 7. Press the up or down button until you reach the desired temperature set- ting. 8. Press hold the sleep button for about three seconds. sleep arrow will be displayed, indicating that the thermostat has saved your settings. 9.

  • Page 21: Using The Fan

    OPERATING THE THERMOSTAT Using the fan When the fan is on. it helps distribute air throughout your home for a more even temperature in all spaces. can set the thermostat so that the fan runs only during your heating and cooling cycles (auto mode) or to run continuously.

  • Page 22: Changing The Humidity Level

    OPERATING THE THERMOSTAT Changing humidity level Your thermostat offers three humidity options: normal, auto and off. It is set at the factory "normal humidify," which is a fixed setting based much humidity you want in the home. This humidity level remains constant, regardless...

  • Page 23: Using Auto Humidify

    OPERATING THE THERMOSTAT the up or down 3. Press button to change the setting. o_---------]o can set the humidity between 46%: the dehu- midify range is from 46% to 66%. 4. Close the door. Using auto humidify The auto humidify" feature automatically adjusts the amount...
  • Page 24 OPERATING THE THERMOSTAT 1. Open the door. the features 2. Press button twice. The first press will dis- o1_o play will display the outdoor the humidify air temperature settings. The display second will in- press clude the humidity level and the humidity setting, 3.
  • Page 25 OPERATING THE THERMOSTAT to turn offthe humidify or dehumidify feature Here's how to turn off the humidify and/or dehumidify features. 1. Open the door. 2. Press the features button twice. The first press will dis- play the outdoor air temperature and the second press will...
  • Page 26 OPERATING THE THERMOSTAT Using emergency heat (heat pump systems only) Emergency heat is useful when the automatic auxiliary heat system can't keep with demand. (Systems with heat pumps use "auxiliary heat" when it's too cold outside for the heat pump to heat the house without help.
  • Page 27 OPERATING THE THERMOSTAT Using the thermostat to turn the heating cooling system Here's how to use the thermostat to turn the heating and cooling system off. 1. Open the door. 2. Press mode button on the left repeatedly until e_---------_o display shows off shows...
  • Page 28 ADVANCED OPTIONS Advanced options display codes chart You can customize a few thermostat features. This chart shows which features change the codes associated with them. codes will appear on the display after following the instructions below. reset reminders 0 to 100% Fahrenheit to Celsius F or C...

  • Page 29: Clearing The Reset Reminders

    ADVANCED OPTIONS Clearing reset reminders The thermostat tells you when it's time to change or service the UV light in the evaporator coil connected to the furnace equipped), humidifier equipped), furnace filter. (See page for more information.) When reminder icons are displayed on the screen, pressing...
  • Page 30 ADVANCED OPTIONS 4. Press hold the done button for about three seconds to remove the reminder. The percentage associated with it will go down to zero. 5. Press the done button. 6. Close the door. •...

  • Page 31: Changing From Fahrenheit To Celsius

    ADVANCED OPTIONS Changing from Fahrenheit to Celsius Your thermostat is preset to display the temperature in degrees Fahrenheit. You can change this to Celsius. 1. Open the door. 2. Press hold features button about three seconds. screen will display 01 and the three reset •...
  • Page 32 ADVANCED OPTIONS Adjusting or turning off the continuous backlighting Your thermostat features a continuous low level backlighting until you press button, which increases the lighting temporarily. You can adjust the intensity of the backlighting or turn if off completely. Here's how.

  • Page 33: Keypad Lockout

    ADVANCED OPTIONS Keypad lockout The keypad lockout feature lets you partially "lock" the thermostat so that you can change only the temperature or lock it completely, allowing no changes. Here's to lock the keypad on either level. 1. Open the door. 2.

  • Page 34: Unlocking The Keypad

    ADVANCED OPTIONS Unlocking the keypad Here's how to temporarily unlock the keypad after you have locked 1. Open the door. 2. Press and hold the up and down buttons on the right simultaneously for about five seconds. 3. The padlock icon will disappear.

  • Page 35: Service Reminders

    SPECIAL FEATURES Hybrid Heat (heat pump with a furnace system only) This thermostat works with the Carrier Hybrid Heat systems offering maximum comfort economy by automatically controlling whether your system delivers heating with heat pump, with furnace, or with both...

  • Page 36: Outdoor Temperature Display

    SPECIAL FEATURES Outdoor temperature display The thermostat automatically displays the outdoor temperature when you press features button. Auto changeover thermostat displays of five modes: heat, cool, heat (heat pump version only), heat cool (auto mode) and off. When the mode selection is for both heating and cooling...

  • Page 37: What If

    WHAT IF... "Aux heat on" is displayed (heat pump Hybrid Heat systems only) Aux heat on is auxiliary heat. It applies only to the heat pump version. If it is on, you will see aux heat on. When it is displayed, it means the system has determined...

  • Page 38: You Get A Service Reminder Message

    WHAT IF... get a service reminder message Service reminder messages - check UV light, check pad, check filter - tell you that it's time to change the UVC lamp in the evaporator coil box connected the furnace (when installed), humidifier (when installed), and furnace...

  • Page 39: Auto Changeover

    COMMON TERMS AND WHERE TO FIND THEM Auto changeover ........page This feature automatically switches your system from heating to cooling - or from cooling to heating - whenever necessary when in auto mode only (heat/cool). Auxiliary heat (heat pump systems Hybrid Heat...

  • Page 40: Hybrid Heat

    Em heat when you press the mode button. Hybrid Heat (heat pump with a furnace system only) ..page This Carrier heating cooling system concept offers maximum comfort economy. When a Hybrid Heat system is installed, thermostat automatically controls...

  • Page 41: Mode

    COMMON TERMS AND WHERE TO FIND THEM Mode ..........page This term refers to the type of operation your system is performing. The options heat. cool. emergency heat, auto (heat/cool) and off. Service reminders ........page 35 The thermostat tells you when it's time to change the UVC lamp (if equipped), humidifier pad (if equipped) and furnace filter.

  • Page 42: Warranty

    THERMOSTAT LIMITED WARRANTY CARRIER CORPORATION turn to the expe_ Limited Warranty for Thermostats FOR WARRANTY SERVICE OR REPAIR: Contact installer or a Carrier dealer. be able to find the installer's name o11 the equipment yore" Owner's Packet. also find a Carrier...
  • Page 43 LEGAL REMEDIES: owner must notify Company in writing, certified registered letter to Carrier Corporation, Warranty Claims, Box 4808, Syracuse, York 13221, of any defect or complaint with product, stating defect...
  • Page 44 THERMOSTAT LIMITED WARRANTY WARRANTY CONDITIONS: 1. To obtain the longer warranty periods as shown in the table under original owner, the original purchaser, the product must properly registered at www.carrie1:com within niuety (90) days of original installation. In jurisdictions where warranty terms conditioned...
  • Page 45 THERMOSTAT LIMITED WARRANTY PROVINCES ALLOW LIMITATIONS LONG IMPLIED WARRANTY CONDITION LASTS. SO THE ABOVE APPLY YOU. EXPRESS WARRANTIES MADE IN THIS WARRANTY EXCLUSIVE ALTERED. ENLARGED. (;HANGED DISTRIBUTOR. DEALER. OTHER PERSON. WHATSOEVER. THIS WARRANTY DOES (;OVER: 1. Labor o1" other costs incurred for diagnosing, repairing,...
  • Page 46 Copyright 2012 Carrier Corporation, 7310 W Morris St. Indianapolis, IN 46231 OM-TPNRH-O4CA Replaces: OM-TPNRH-O3CA Edition Date: 05/12 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
