Carrier TP -PRH Installation Instructions Manual

7-day, 5/2-day, 1-day programmable and non--programmable performance series thermidistat control
Hide thumbs

Advertisement

Table of Contents

Enlarged version
TP---PRH, TP---NRH
PerformancetSeries
Thermidistatt Control

Installation Instructions

A07049
Programmable Control
NOTE: Read the entire instruction manual before starting the installation.
A07048
Non ---Programmable Control

Advertisement

Table of Contents
loading

Related Manuals for Carrier TP -PRH

Summary of Contents for Carrier TP -PRH

  • Page 1: Installation Instructions

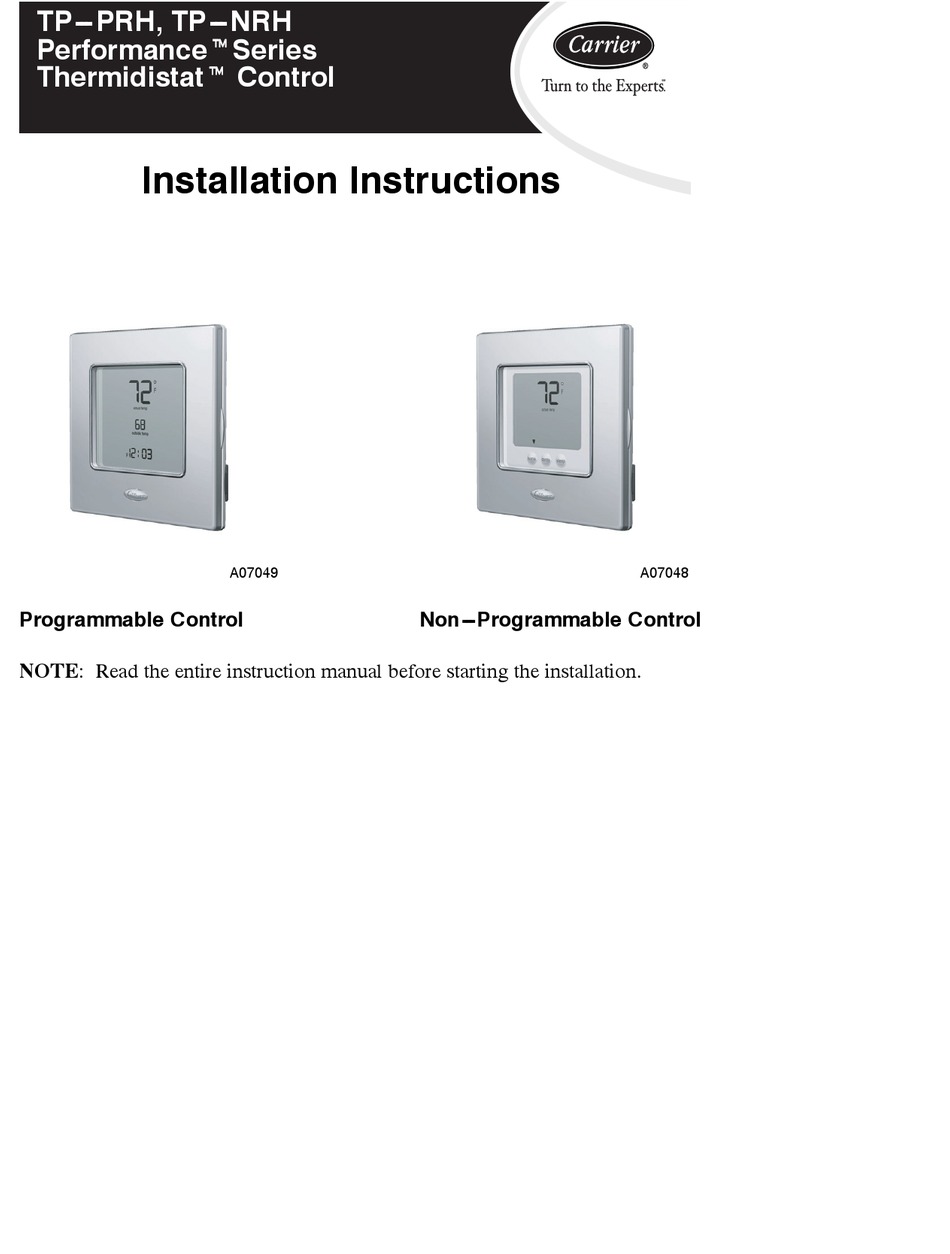

    TP---PRH, TP---NRH PerformancetSeries Thermidistatt Control Installation Instructions A07049 A07048 Programmable Control Non ---Programmable Control NOTE: Read the entire instruction manual before starting the installation.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE SAFETY CONSIDERATIONS ........INTRODUCTION .

  • Page 3: Introduction

    -configured settings in memory. During power loss its internal memory saves settings for unlimited time, and the clock continues to run for at least 24 hours. An extension of Carrier’s proven line of thermostats; it provides separate setpoints for heating and cooling in addition to humidification and dehumidification.

  • Page 4: Installation Considerations

    INSTALLATION CONSIDERATIONS Power This control is powered by 24VAC only. It requires 24VAC (Rh and/or Rc and C terminals) of the low- -voltage transformer to be connected to it for proper operation. It will not operate without these 2 connections. Rh and Rc are connected via PCB breakout jumper.
  • Page 5 There are programmable and non- -programmable models for all applications. They can be configured for AC or HP, 1- -or 2- -speed compressor, and for Hybrid Heatt installations, allowing it to be used in place of all Carrier thermostats. Programmable Thermidistat Controls may be configured as non- -programmable if user desires.
  • Page 6 WARNING ELECTRICAL OPERATION HAZARD Failure to follow this warning could result in personal injury or death. DO NOT connect furnace HUM terminal directly to Thermidistat Control HUM terminal. This will bypass furnace safety controls. See Low Voltage Wiring Diagrams and notes for proper connection.
  • Page 7 Remote Indoor Temperature Sensor A remote temperature sensor may be used with the programmable model, where it is desirable to install the Thermidistat Control in a limited access location while measuring the temperature in the living space. The remote room sensor may be used as a stand alone or average with local sensor.

  • Page 8: Installation

    INSTALLATION Carton contains the following components. See Fig. 2 for TP- -PRH or Fig. 3 for TP- -NRH. A07685 Fig. 2 - - TP- -PRH Carton Contents 1. Display Module 2. Stand- -off for Equipment Control Module 3. Outside Air Temperature Sensor, screws and pigtail. 4.
  • Page 9 A07686 Fig. 3 - - TP- -NRH Carton Contents 1. Display Module 2. Stand- -off for Equipment Control Module 3. Outside Air Temperature Sensor, screws and pigtail. 4. Equipment Control Module Thermidistat Control Location Thermidistat Control should be mounted: Approximately 5 ft (1.5m) from floor. Close to or in a frequently used room, preferably on an inside parti- tioning wall.
  • Page 10 Exposed to direct light or heat from a lamp, sun, fireplace, or other temperature- -radiating objects which could cause a false reading. Close to or in direct airflow from supply registers and return- -air regis- ters. In areas with poor air circulation, such as behind a door or in an al- cove.
  • Page 11 CAUTION UNIT DAMAGE HAZARD Failure to follow this caution may result in equipment damage or improper operation. Improper wiring or installation may damage Thermidistat Control. Check to make sure wiring is correct before proceeding with installation or turning on power. 1.
  • Page 12 CAUTION ENVIRONMENTAL HAZARD Failure to follow this caution may result in environmental damage. Mercury is a hazardous waste. Federal regulations require that Mercury be disposed of properly. Two- - Piece Installation The following steps should be followed for the installation of the two- -piece configuration.
  • Page 13 A07225 Fig. 4 - - Press Tabs to Remove Backplate A07226 Fig. 5 - - Take Apart...
  • Page 14 2. Route wires through large hole in mounting base. Level mounting base against wall (for aesthetic value only—Display Module need not be lev- eled for proper operation) and mark wall through 2 mounting holes. See Fig. 6. A07165 Fig. 6 - - Backplate Mounting 3.
  • Page 15 6. Match and connect equipment wires to proper terminals of each connector block, being careful not to over tighten the screws. Correct polarity must be observed when connecting the two wires from the Equipment Control Module to the Thermidistat Control mounting base. If wires are con- nected incorrectly, the Display Module will not operate.
  • Page 16 A07166 Fig. 8 - - Secure Wires to Terminal Strip A07167 Fig. 9 - - Connect Pigtail Wires to Display Module...
  • Page 17 NOTE: The 2- -wire pigtail is not intended to support the weight of the User Interface. Do not hang the User Interface from the Equipment Control Module screw terminals. S Red of the pigtail is V+ S Black of the pigtail is Vg 7.
  • Page 18 10. Find suitable indoor mounting location for Equipment Control Module, either near or on equipment. See Fig. 11. IMPORTANT NOTE: Equipment Control Module should not be mounted to duct work or below any other controls or equipment (i.e. humidistat, humidifier, etc.). A07217 Fig.
  • Page 19 A07227 Fig. 12 - - Standoff NOTE: Standoffs are provided as an aid when installing Equipment Control Module on inside equipment or a solid wall. 12. Match and connect equipment wires to proper terminals of each connector block being careful not to over tighten the screws. Correct polarity must be observed when connecting the two wires from the Equipment Control Module to the Thermidistat Control mounting base.
  • Page 20 A07218 Fig. 13 - - Cover on Equipment Control Module 14. Turn on power to equipment. On power up, all display segments will light for 5 sec. For the next 5 sec a 2- -digit code appears on large display which identifies Thermidistat Control configuration.
  • Page 21 Single- - Piece Installation The following steps should be followed for the installation of the single- -piece configuration. 1. Remove cover from Equipment Control Module by pressing the two tabs on the bottom edge and pulling away. Route wires through large hole in Equipment Control Module.
  • Page 22 A07219 Fig. 14 - - Equipment Control Module 5. Match and connect equipment wires to proper terminals of each connector block. 6. Push any excess wire into wall and against Equipment Control Module. Seal hole in wall to prevent air leaks. Leaks can affect operation and cause incorrect temperature and/or humidity measurement.
  • Page 23 A07220 Fig. 15 - - Reattach Display Module 9. Turn on power to equipment. On power up, all display segments will light for 5 sec. For the next 5 sec a 2- -digit code appears on large display which identifies Thermidistat Control configuration. Refer to Option 33. a.
  • Page 24 Set Thermidistat Control Configuration Configuration options enable the installer to configure the Thermidistat Control for a particular installation. Most are not presented to the homeowner and therefore must be properly set by the installer. (Only those marked with an asterisk * below are available to the homeowner.) The homeowner configurations are described in the owner’s manual.
  • Page 25 Option 11 — Adjustable Setpoint Deadband (not available on heat only and cool only systems) Option 12 — Smart Recovery (programmable models only) Option 13 — Room Temperature Offset Adjustment Option 14 — Humidity Offset Adjustment Option 15 — Enable Auto Mode Option 16 —...
  • Page 26 Option 31* — Daylight Savings Time Configuration (programmable models only) Option 32 — Furnace Heat Staging Option 33 — Single or Two- -Piece Installation Option 99 — Reset to Factory Defaults TO ENTER CONFIGURATION MODE Press and hold FAN button for approximately 10 sec. The Display Module is now in configuration mode.
  • Page 27 H2 — operates a two- -speed heat pump with a fan coil HP — operates a single- -speed heat pump with a fan coil A2 — operates a two- -speed AC AC — operates a single- -speed AC hh — operates a single- -speed heat pump with a furnace h2 —...
  • Page 28 their own blowers and do not require separate G signal. For these applications, select OFF. Some auxiliary heaters require separate G signal to turn on blower. In this case, select On. Default is OF (off). Option 05 — Room Air Temperature Sensing (programmable models only) This selection determines which sensor the control will use for measuring room air temperature.
  • Page 29 OF (off) - - function is disabled. Auxiliary heat is allowed to operate whenever sufficient demand for heat is available. 5- -55_F - - Outdoor temperature above which the auxiliary heat is not allowed to operate (unless MODE is set to Emergency Heat). Default is OF (off).
  • Page 30 Option 11 — Deadband Setting Between Heat & Cool This option is not available on Heat Only and Cool Only systems. The selection allows the installer to choose how much differential exists between the heating and cooling setpoints. Allowable selections are 1- -6. Default is 2.
  • Page 31 Control to automatically change between heating mode and cooling mode when sufficient demand for heating or cooling exists. On — Auto mode is available. OF — Auto mode is not available. Default is On. Option 16 — Maximum Cycles Per Hour This selection limits the number of cycles per hour that the Thermidistat Control allows the system to operate.
  • Page 32 Option 18 — Backlight Configuration When OF (off), the backlight will be lit for 10 seconds after a button is pressed. After 10 seconds of no button presses, the backlight turns off. When On, the backlight will normally be on and dim in appearance. The backlight brightness becomes brighter when a button is pressed.
  • Page 33 terminal on the cooling equipment when the dry contact is closed. See Wiring Diagrams for more information. Default is OF (off). Option 19 — Dry Contact Configuration (non- -programmable models only) OF — The dry contact is always de- -energized. ON —...
  • Page 34 3 — The entire keypad is locked. When a button is pressed, the backlight will turn on but none of the operating parameters will be changed. When the keypad lock selection is turned on, the padlock icon will be displayed. To unlock the keypad, press and hold the UP/DOWN buttons simultaneously for five seconds.
  • Page 35 Option 22 — High Cool Latch Temperature An outdoor sensor is required for high cool latch feature. This selection is only available when Option 1 is set to H2, A2, or h2 and when Option 7 (zoning) is set to OF (off). Configuration settings are OF (off), 80, 85, 90, 95, 100, 105, 110, On.
  • Page 36 On — The Y1 and Y/Y2 outputs are simultaneously energized to satisfy all heating demands. Default is OF (off). Option 24 — Programmable/Non- -Programmable (programmable models only) This selection allows the installer to configure the Thermidistat Control as either programmable or non- -programmable. Selections are P, nP. Default is P.
  • Page 37 Option 27 — Maximum Heating Setpoint This selection allows the installer to configure the maximum heating setpoint. The range is based on the adjustable deadband value Option 11, such that the minimum of the range is 50_F and the maximum is 90_F minus the deadband. Default is 88_F (based on the adjustable deadband default = 2).
  • Page 38 Option 30 — Programmable Fan (programmable models only) This selection allows the homeowner to program the fan selection to “Auto” or “On” fan operation for each of the program schedule periods. This selection is only available on programmable Thermidistat Controls. OF (off) —...
  • Page 39 choose the end date for daylight savings time (Fall). To activate the function, the installer changes the “2” by pressing the up button and “On” is displayed. The setting shall be left “On” to enable the Daylight Savings Time function. Default is On (on).

  • Page 40: System Start- -Up And Checkout

    to move the box from the 99 to the 10 (programmable model) or to flash the 10 (non- -programmable model). Then press and hold the DOWN key. The 10 will start counting down toward zero. If the DOWN key is kept pressed until the count reaches zero, the reset will be performed.
  • Page 41 installation, only 1 stage of auxiliary heat is available. Any staging of auxiliary heat must be managed by the furnace or fan coil. While the heating test is active, the humidify output can be toggled. On the programmable models, pressing the button below the humidify icon shall toggle the state of the humidify output.
  • Page 42 On the programmable models, the default setpoints and programmed schedule conform to the Energy Starr requirements of the U.S. Department of Energy for both heating and cooling. These provide energy saving temperature settings. Refer to Table 1. Table 1 – Energy Star Default Schedule SCHEDULE HEAT COOL...
  • Page 43 the set button will cycle through the calendar, daily schedule, and vacation settings. Calendar may be changed by using the soft keys to select the Month, Day, or Year. The UP/DOWN buttons are used to change the Month, Day, or Year setting when the box surrounds it.
  • Page 44 Table 2 – Humidification Selections HUMIDIFY SETPOINT SELECTION FAN DISPLAY DISPLAY Normal Humidify Blank 10 ---46 Auto Humidify AUTO 1 ---9 Humidify Off Blank OF (Off) 1. Humidify In normal humidify, humidifier will be on if there is humidity demand and any heating equipment is on.
  • Page 45 To Select Humidification (non- -programmable) Press the features button twice. The first press displays the outdoor air temperature and the second press displays the humidity value and humidify target. Pressing the mode button shall cycle through the available humidification selections (Off, Humidify and Auto Humidify). Additional Humidify Comments The humidifier is actually turned on when humidity is 1% below setpoint and turned off when it reaches 1% above setpoint.
  • Page 46 1. Normal Dehumidify Operation When normal dehumidify is selected, the compressor will not turn on without a cooling demand. If dehumidify demand exists while cooling, dry contact will also be active (24VAC removed). This output commands variable- -speed blowers to reduce their airflow, which improves water re- moval from the cooled air.
  • Page 47 A06599 Fig. 16 - - Auto Humidity 3. Dehumidify Off Dehumidification can be turned off completely. This can be done without changing existing setpoints. To Select Dehumidification (programmable - - between NORMAL, COOL TO, and OFF) Press the soft key below the dehumidify icon button to bring up dehumidify selections.
  • Page 48 system is in AUTO mode, dehumidify options are available if the last system operation was a call for cooling. To Select Dehumidification (non- -programmable - - between NORMAL, COOL TO, and OFF) Press the features button three times. The first press displays the outdoor air temperature, the second press displays the humidify options and the third press will display the current dehumidify selections.
  • Page 49 Carrier FK and FV series variable- -speed fan coils, all variable- -speed furnaces, and select single and multi- -stage furnaces with the dehumidify connection have dehumidify inputs which connect directly to Thermidistat Control dry contact. Refer to the furnace literature for dehumidification options.
  • Page 50 Vacation Setpoints A special set of temperature and humidity setpoints exist which are active in vacation mode. They are adjustable by the homeowner, are exclusively for vacation mode, and are remembered from one vacation selection to the next. See Table 3 for default values. Table 3 –...

  • Page 51: Operational Information

    OPERATIONAL INFORMATION Timers Five- -Minute Compressor Timeguard This timer prevents compressor from starting unless it has been off for at least 5 minutes. It can be overridden for 1 cycle by simultaneously pressing FAN and UP buttons. Cycle Timer Based on the selection of 2, 4, or 6 cycles per hour, this timer is set to 30, 15, or 10 minutes.
  • Page 52 signal shall be considered valid if the compressor output is energized and the defrost signal has been active for less than 15 consecutive minutes. Any defrost signal present for longer than 15 minutes shall be considered invalid. Heat pump/fan coil and hybrid heat systems shall use this input to: Detect that defrost is in progress and energize the auxiliary heat to provide homeowner comfort during the defrost cycle Allow a defrost cycle to run to completion regardless of the system...
  • Page 53 Humidify and Dehumidify Indicators When the Display Module door is closed, the humidify icon will be displayed when humidification is active and the dehumidify icon will be displayed when dehumidification is active. Auto Changeover When auto changeover mode is selected, a change from heat to cool (or vice versa) will not occur until an opposite mode demand has existed for 20 minutes.

  • Page 54: Troubleshooting

    power to energize the dehumidify terminal on the cooling equipment when the dry contact is closed. If it is desired to operate a ventilator or other device, the D1 and D2 terminals can be connected directly to the equipment. This will provide a closed contact for the specified number of minutes per hour.
  • Page 55 seconds. The control will operate from the temperature sensed by the working sensor. E1 - - If the Display Module and the Equipment Control Module cannot communicate via two- -wire connection, an E1 will be displayed. E2 - - There is no E2 error message. E3 - - If Thermidistat Control cannot properly read outdoor temperature, and it is needed for proper operation, display will indicate “- -- -”...
  • Page 56 Table 4 – Equipment Configuration Outputs EQUIPMENT COOL COOL HEAT HEAT HEAT HARDWARE HEAT CONFIGURATION STAGE STAGE STAGE STAGE STAGE CONFIGURATION STAGE OPTION #1 Single- - stage AC Y/Y2 W/W1 W/W1 Single- - stage AC Y/Y2 W/W1 O/W2/B Single- - stage HP Y/Y2 Y/Y2 Y/Y2...
  • Page 57 Table 4 - - Equipment Configuration Outputs (cont) EQUIPMENT COOL COOL HEAT HEAT HEAT HARDWARE HEAT CONFIGURATION STAGE STAGE STAGE STAGE STAGE CONFIGURATION STAGE OPTION #1 Two- - stage Hybrid Heat Y/Y2 W/W1 W/W1 O/W2/B Y/Y2 RVS = C O/W2/B Two- - stage Hybrid Heat Y/Y2...

  • Page 58: Wiring Diagrams

    WIRING DIAGRAMS Display module Display module wall mount Equipment Control Module Fan Coil Heat Pump RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Y/Y2 Not Used 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 24VAC Common Outdoor Air Temp Remote Room Sensor...
  • Page 59 Thermostat Fan Coil Heat Pump RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 Y/Y2 Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 DEHUM 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor *...
  • Page 60 Typical Single-Stage Thermostat Fan Coil Heat Pump RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor *...
  • Page 61 Thermostat RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 Aux. Connection 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor * OAT/RRS Com OAT/RRS...
  • Page 62 Thermostat Fan Coil Air Conditioner RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 Y/Y2 Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 DEHUM 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor *...
  • Page 63 Typical Single-Stage Thermostat Fan Coil Air Conditioner RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor *...
  • Page 64 Fan Coil Thermostat RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 Aux. Connection 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor * OAT/RRS Com...
  • Page 65 Thermostat Fan Coil Heat Pump RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 DEHUM 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor *...
  • Page 66 Typical Thermostat Fan Coil RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor * OAT/RRS Com...
  • Page 67 Thermostat RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 24VAC Common Humidify Outdoor Air Temp Remote Room Sensor OAT/RRS Com OAT/RRS A06581 Fig.
  • Page 68 Thermostat Fan Coil Air Conditioner RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 DEHUM 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor *...
  • Page 69 Typical Single-Stage Thermostat Fan Coil Air Conditioner RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor *...
  • Page 70 Thermostat Furnace Heat Pump RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 W/W1 Compressor Low Compressor High Y/Y2 Y/Y2 Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 DEHUM 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor *...
  • Page 71 Single-Stage Single-Stage Thermostat Furnace Heat Pump RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 DEHUM 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor *...
  • Page 72 Thermostat Furnace Air Conditioner RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 Y/Y2 Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 DEHUM 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor *...
  • Page 73 Single-Stage Single-Stage Thermostat Furnace Air Conditioner RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 DEHUM 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor *...
  • Page 74 Thermostat Furnace Heat Pump RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 DEHUM 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor *...
  • Page 75 Single-Stage Thermostat Furnace RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 DEHUM 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor * OAT/RRS Com...
  • Page 76 Variable Speed/Multi-Stage Thermostat Furnace Air Conditioner RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 DEHUM 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor *...
  • Page 77 Single-Stage Single-Stage Thermostat Furnace Air Conditioner RVS/Heat Stage 2 O/B W2 Heat Stage 1 W/W1 Compressor Low Compressor High Y/Y2 24VAC Hot Heating 24VAC Hot Cooling Dry Contact 1 Dry Contact 2 DEHUM 24VAC Common Humidify Humidifier Solenoid Outdoor Air Temp Valve * Remote Room Sensor Outdoor Sensor *...

  • Page 78: Thermidistat Control Configuration Record

    THERMIDISTAT CONTROL CONFIGURATION RECORD Installer Model Number Date _________________________ ______________________________ _________________________ A. Hardware Configuration __________ Seal Hole In Wall B. Mode Settings __________ Mode (Off, Heat, Cool, Auto, Em Heat) __________ Heating Setpoint Value __________ Cooling Setpoint Value __________ Fan (Auto or On) C.
  • Page 79 E Configuration Options Option 01 Equipment Type _____ Option 02 Clean Filter Timer Adjustment _____ Option 03* Fahrenheit/Centigrade Selection _____ Option 04 Fan (G) on with W/W1 Selection _____ Option 05 Room Air Temperature Sensing (programmable models only) _____ Option 06 Cooling Lockout Below 55_F Selection (only available if outdoor air sensor is present) _____ Option 07...
  • Page 80 Single or Two- - Piece Installation _____ * Options with an asterisk can also be set/changed by the homeowner. Copyright 2007 Carrier Corp. S 7310 W. Morris St. S Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 09/07 Catalog No: TP---PRH ---2SI Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
