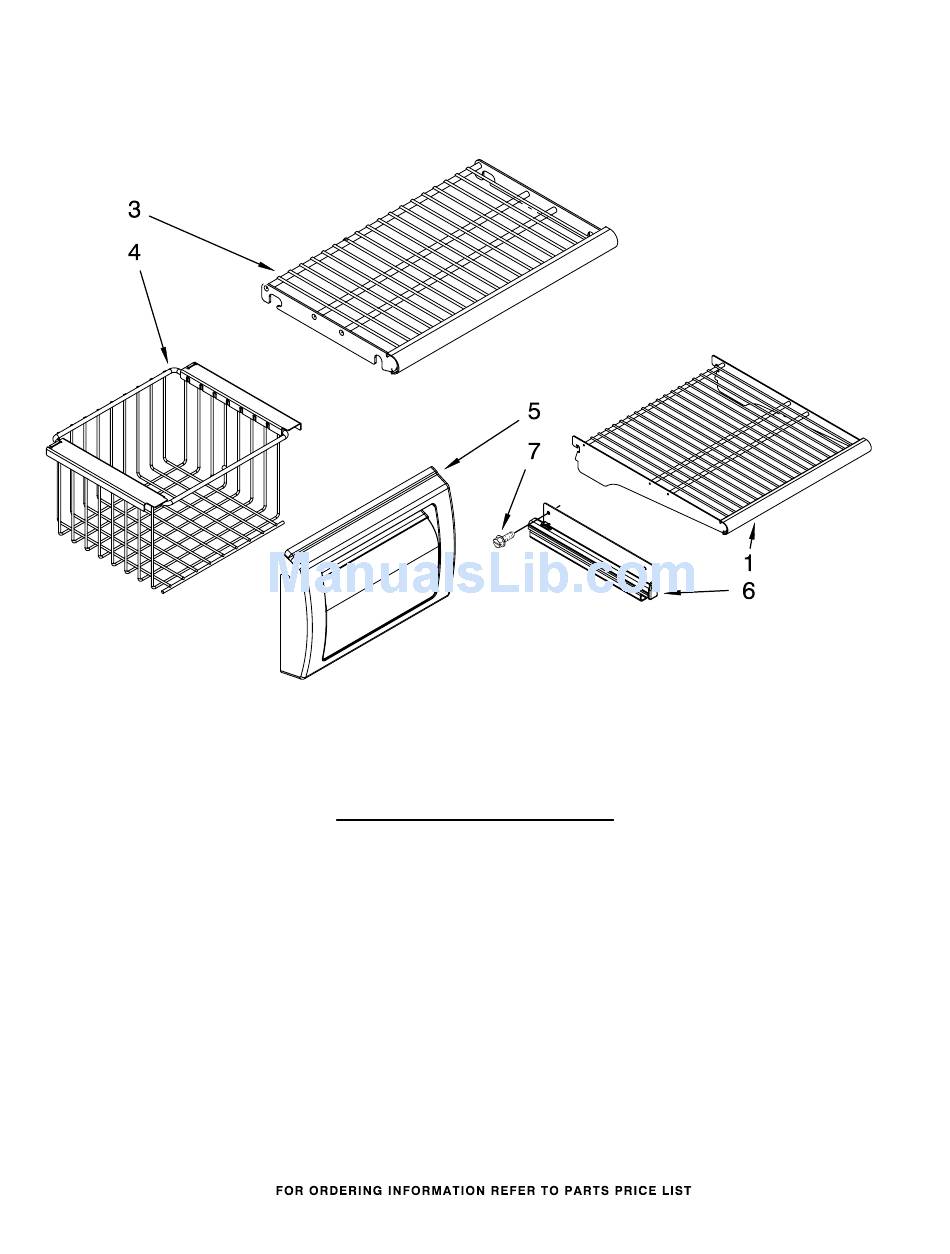

FREEZER SHELF PARTS
For Model: JS48SEDUDB01
(Stainless Steel)
Illus.
Part
No.
No.
DESCRIPTION
1 W10175906 Wire, Shelf (4)
3
2302884 Shelf, Fixed (2)
4
2259083 Basket
5
2256271 Front, Basket
6
Slide, Basket
2259317 Right Side
2259318 Left Side
7
8533928 Screw
4
W10242820
