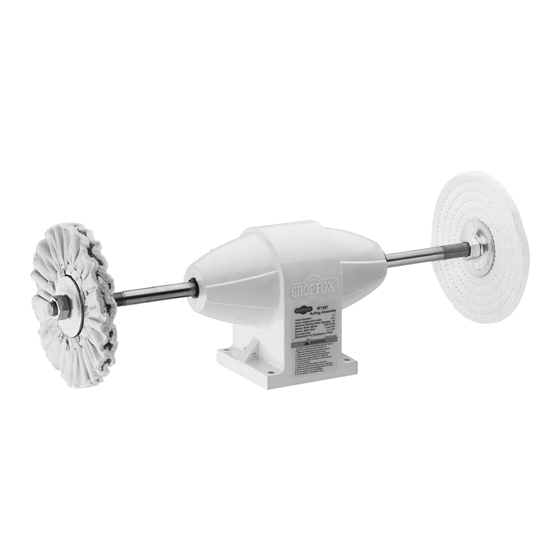

MODEL W1681
BUffiNg ASSEMBLy
OWNER'S MANUAL
Phone: (360) 734-3482 • Online Technical Support: tech-support@shopfox.biz
COPyRigHT © AUgUST, 2001 By WOODSTOCK iNTERNATiONAL, iNC. REViSED MAy, 2013 (ST)
WARNiNg: NO PORTiON Of THiS MANUAL MAy BE REPRODUCED iN ANy SHAPE OR fORM WiTHOUT
THE WRiTTEN APPROVAL Of WOODSTOCK iNTERNATiONAL, iNC.
Printed in China
#3723DS
Advertisement
Table of Contents
Related Manuals for Shop fox SHOP FOX W1681
Summary of Contents for Shop fox SHOP FOX W1681
- Page 1 MODEL W1681 BUffiNg ASSEMBLy OWNER'S MANUAL Phone: (360) 734-3482 • Online Technical Support: tech-support@shopfox.biz COPyRigHT © AUgUST, 2001 By WOODSTOCK iNTERNATiONAL, iNC. REViSED MAy, 2013 (ST) WARNiNg: NO PORTiON Of THiS MANUAL MAy BE REPRODUCED iN ANy SHAPE OR fORM WiTHOUT THE WRiTTEN APPROVAL Of WOODSTOCK iNTERNATiONAL, iNC. Printed in China #3723DS...
- Page 2 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.
-
Page 3: Table Of Contents
Contents INTRODUCTION....................2 Woodstock Technical Support ................2 SAFETY......................3 Standard Machinery Safety ................3 Additional Safety for Buffing Assemblies ............... 5 SETUP......................6 Unpacking ....................6 Inventory ....................6 Cleaning Machine................... 6 Choosing a Motor ................... 7 Configuring Pulleys ..................7 Mounting ..................... -
Page 4: Introduction
Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to include the basic information for safety, setup, operation, maintenance, and service of this product. -
Page 5: Safety
W1681 Buffing Assembly SAFETY SAFETY READ MANUAL BEFORE OPERATING MACHINE. FAILURE TO FOLLOW INSTRUCTIONS BELOW WILL RESULT IN PERSONAL INJURY. Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury. - Page 6 W1681 Buffing Assembly 10. NEVER LEAVE WHEN MACHINE IS RUNNING. Turn power OFF and allow all moving parts to come to a complete stop before leaving machine unattended. 11. DO NOT USE IN DANGEROUS ENVIRONMENTS. DO NOT use machinery in damp, wet locations, or where any flammable or noxious fumes may exist.
-
Page 7: Additional Safety For Buffing Assemblies
W1681 Buffing Assembly Additional.Safety.for.Buffing.Assemblies READ.and.understand.this. USE.this.and.other.machinery.with.caution. entire. instruction. manual. and. respect.. Always. consider. safety. first,. before.using.this.machine.. as. it. applies. to. your. individual. working. Serious. personal. injury. conditions..No.list.of.safety.guidelines.can. may. occur. if. safety. and. be. complete—every. shop. environment. is. operational.information.is. different..Failure.to.follow.guidelines.could. not. understood. and. fol- result. -
Page 8: Setup
W1681 Buffing Assembly SETUP Unpacking This machine has been carefully packaged for safe transportation. If you notice the machine has been damaged during shipping, please contact your authorized Shop Fox dealer immediately. Inventory Keep. machine. disconnected. from. The following is a description of the main components power.until.instructed.otherwise. -
Page 9: Choosing A Motor
W1681 Buffing Assembly Choosing.a.Motor The Shop Fox W1681 does not come with a motor or elec- ® trical package. We recommend using a 1725 RPM, ⁄ H.P. or larger motor. Always follow the motor manufacturer's electrical require- ments for the motor that you install. Configuring.Pulleys The buffing assembly comes with a three step arbor pul- ley. -
Page 10: Mounting
W1681 Buffing Assembly Mounting The strongest bench mounting option is a "Through Bolt Mount" where holes are drilled all the way through the workbench, and hex bolts, washers, and hex nuts are used to secure the drill press to the workbench. Flat Washer Machine Base Another option for mounting is a "Direct Mount"... - Page 11 W1681 Buffing Assembly 5. Mount the motor on a ⁄ " plywood platform below the buffing assembly so that the motor pulley Rotation is directly beneath the arbor pulley. Be sure to Buffer Assembly orient the motor rotation so the buffing wheels Working Side will be rotating downward on the working side of the buffing assembly.
-
Page 12: Operations
W1681 Buffing Assembly OPERATIONS General This machine will perform many types of operations that are beyond the scope of this manual. Many of these operations can be dangerous or deadly if performed incor- rectly. The instructions in this section are written with the under- standing that the operator has the necessary knowledge and skills to operate this machine. -
Page 13: Buffing/Polishing
W1681 Buffing Assembly Buffing/Polishing Buffing Wheel The Model W1681 buffing assembly is a simple and straight- forward machine to use. There are many different styles of discs and compounds to choose from. It is very impor- Arbor Nuts Arbor Shaft tant that you do not use grinding wheels on this machine. -
Page 14: Maintenance
W1681 Buffing Assembly MAINTENANCE General Regular periodic maintenance on your machine will ensure its optimum performance. Make a habit of inspecting your machine each time you use it. Check.for.the.following.conditions.and.repair.or. replace.when.necessary: • Loose mounting bolts. • Worn switch. • Worn or damaged cords and plugs. •... -
Page 15: Service
W1681 Buffing Assembly SERVICE Troubleshooting This section covers the most common problems and corrections with this type of machine. WARNING!.DO.NOT.make.any.adjustments.until.power.is.disconnected.and. moving.parts.have.come.to.a.complete.stop! PROBLEM POSSIBLE.CAUSE CORRECTIVE.ACTION Machine stalls or is over- 1. Motor connection wired incorrectly. 1. Correct motor wiring connections. loaded. 2. -
Page 16: Parts
W1681 Buffing Assembly PARTS REF. PART.#. DESCRIPTION X1681001 HEX HEAD BOLT X1681002 V-BELT 4L280 X1681003 RIGHT HAND ARBOR NUT X1681004 3" PLEATED FLANGES ⁄ " ID X1681005 RETAINING RING X1681006 ARBOR SHAFT X1681007 BALL BEARING 07-1 X1681007-1 RUBBER BEARING COVER X1681008 ARBOR PULLEY X1681009... - Page 17 W1681 Buffing Assembly Warranty.Registration Name ___________________________________________________________________________________ Street __________________________________________________________________________________ City _________________________ State ___________________________Zip ________________________ Phone # ______________________ Email___________________________Invoice # ___________________ Model #_________Serial #______________Dealer Name__________________Purchase Date___________ The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services.
- Page 18 FOLD ALONG DOTTED LINE Place Stamp Here WOODSTOCK.INTERNATIONAL.INC.. P.O..BOx.2309. BELLINGhAM,.WA.98227-2309 FOLD ALONG DOTTED LINE TAPE ALONG EDGES--PLEASE DO NOT STAPLE...
-
Page 19: Warranty
Woodstock International, Inc. will repair or replace, at its expense and at its option, the Shop Fox machine or machine part, which in normal use has proven to be defective, provided that the original owner returns the product prepaid to a Shop Fox factory service center with proof of their purchase of the product within two years, and provides Woodstock International, Inc.
